DeviceNet Design
12.12.2. Configuration example
The example describes the principle procedure when configuring the device using the RSNetWorx software for
DeviceNet (Rev. 4.21.00).
Installation of the EDS file
The EDS file is installed with the aid of the EDS Installation Wizard Tool associated with RSNetWorx.
During the installation procedure the icon can be assigned (if this does not occur automatically).
Offline parameterization of the device
When a device has been inserted into the DeviceNet configuration of RSNetWorx, the device can be parameterized
offline.
"Fig. 27" indicates how, for example, an input assembly which deviates from the factory setting (input process
data can be transferred via I/O connection) can be selected. However, ensure that the length of the process data
during a subsequent configuration of the DeviceNet master/scanner is adjusted accordingly.
All parameter changes implemented offline must become operative for the real device at a later date by a
download process.

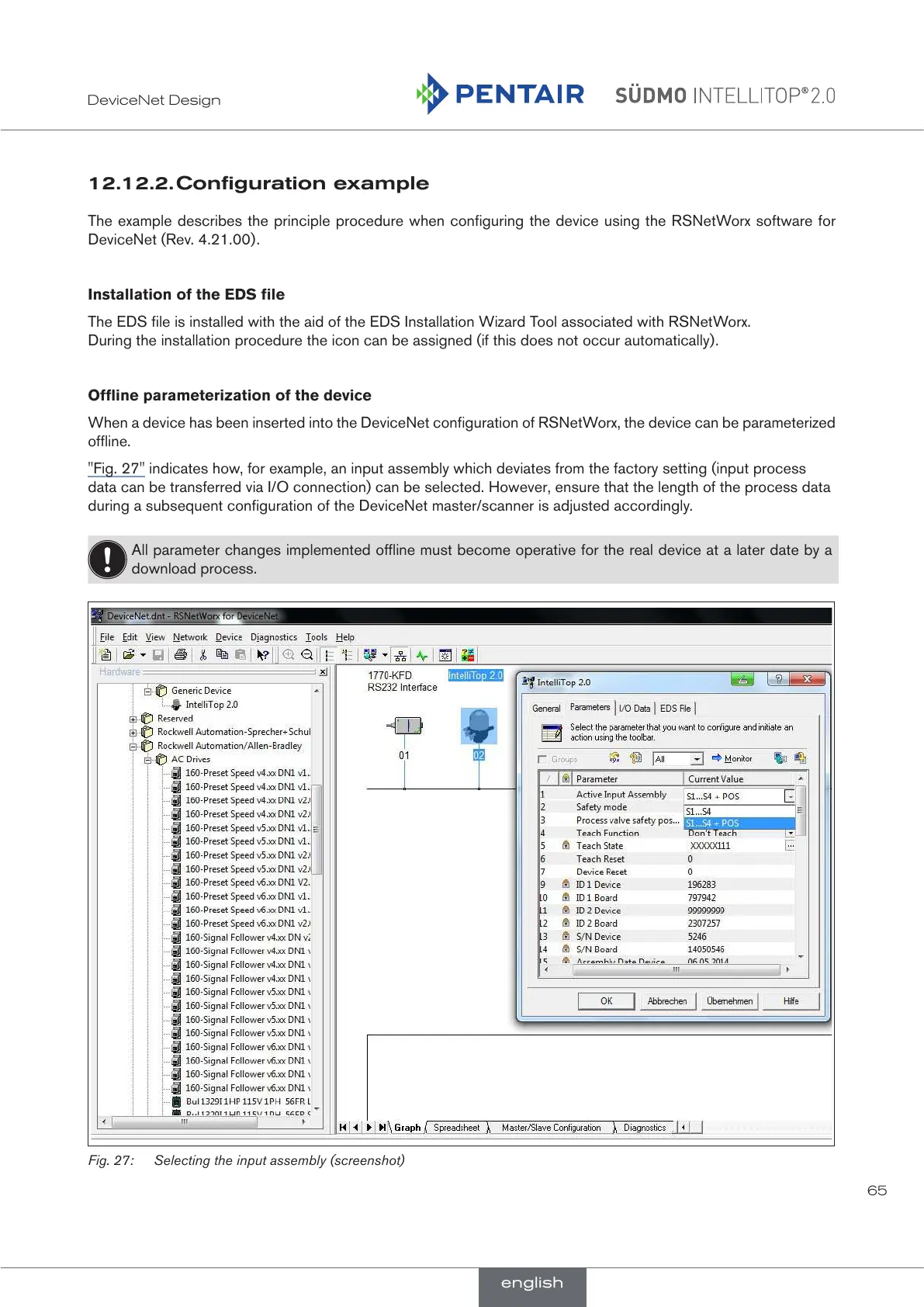

Fig. 27: Selecting the input assembly (screenshot)
