Technical Data

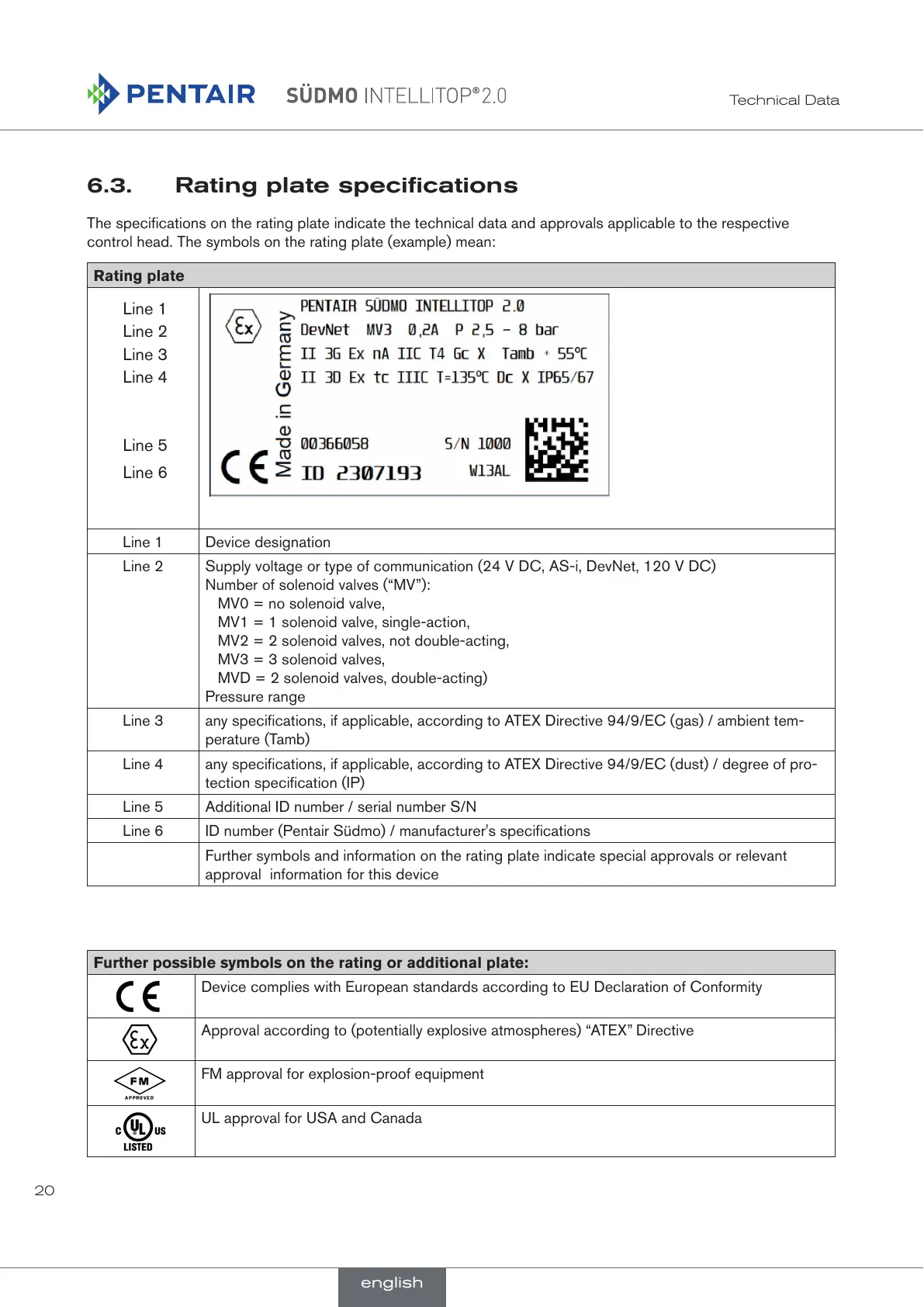

6.3. Rating plate specifications
The specifications on the rating plate indicate the technical data and approvals applicable to the respective
control head. The symbols on the rating plate (example) mean:
Rating plate
Line 1
Line 2
Line 3
Line 4
Line 5
Line 6
Line 1 Device designation
Line 2 Supply voltage or type of communication (24 V DC, AS-i, DevNet, 120 V DC)
Number of solenoid valves (“MV”):
MV0 = no solenoid valve,
MV1 = 1 solenoid valve, single-action,
MV2 = 2 solenoid valves, not double-acting,
MV3 = 3 solenoid valves,
MVD = 2 solenoid valves, double-acting)
Pressure range
Line 3 any specifications, if applicable, according to ATEX Directive 94/9/EC (gas) / ambient tem-
perature (Tamb)
Line 4 any specifications, if applicable, according to ATEX Directive 94/9/EC (dust) / degree of pro-
tection specification (IP)
Line 5 Additional ID number / serial number S/N
Line 6 ID number (Pentair Südmo) / manufacturer's specifications
Further symbols and information on the rating plate indicate special approvals or relevant
approval information for this device
Further possible symbols on the rating or additional plate:
Device complies with European standards according to EU Declaration of Conformity
Approval according to (potentially explosive atmospheres) “ATEX” Directive
FM approval for explosion-proof equipment
UL approval for USA and Canada
english
