54
AS Interface - Design

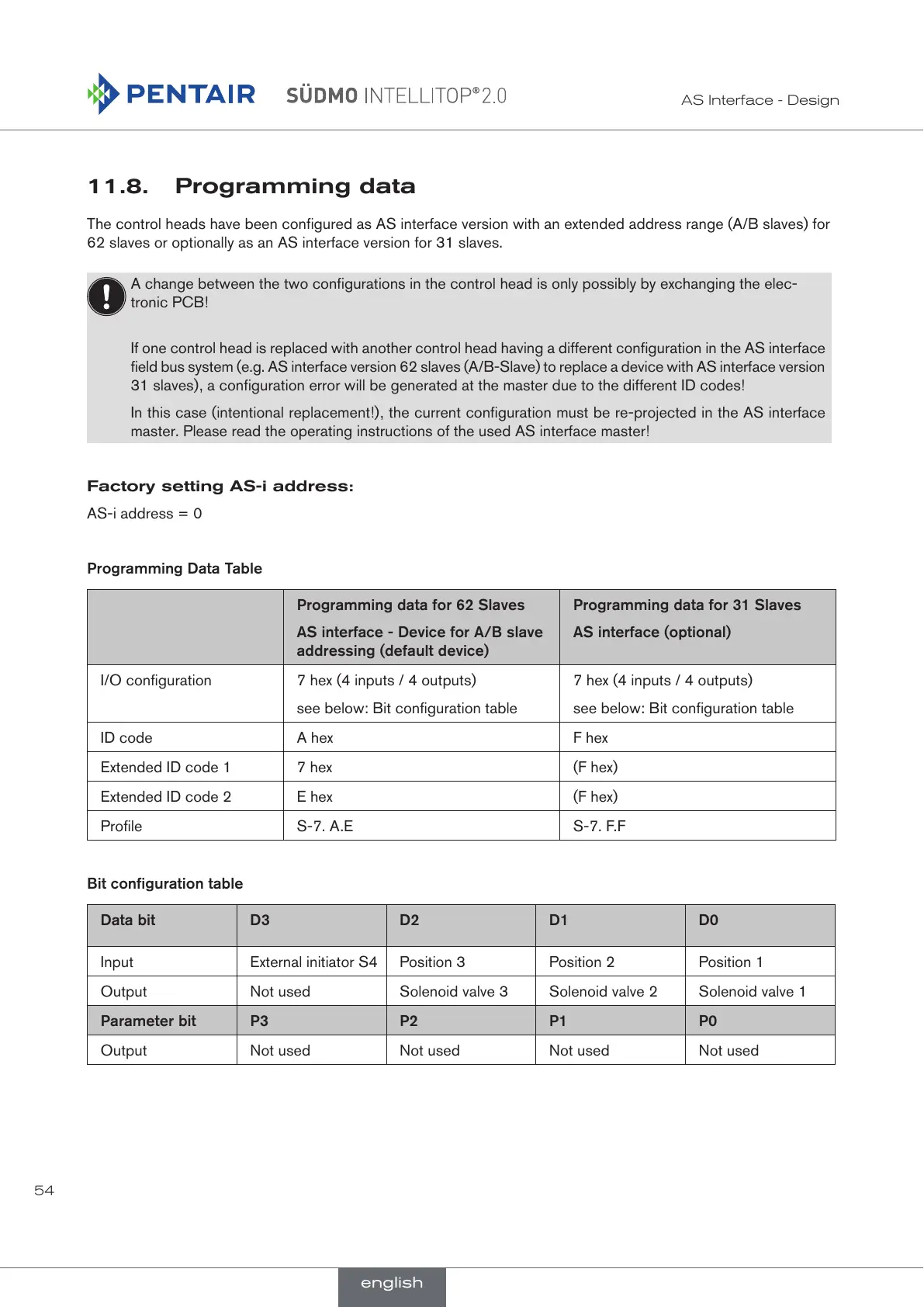

11.8. Programming data
The control heads have been configured as AS interface version with an extended address range (A/B slaves) for
62 slaves or optionally as an AS interface version for 31 slaves.
A change between the two configurations in the control head is only possibly by exchanging the elec-
tronic PCB!
If one control head is replaced with another control head having a different configuration in the AS interface
field bus system (e.g. AS interface version 62 slaves (A/B-Slave) to replace a device with AS interface version
31 slaves), a configuration error will be generated at the master due to the different ID codes!
In this case (intentional replacement!), the current configuration must be re-projected in the AS interface
master. Please read the operating instructions of the used AS interface master!
Factory setting AS-i address:
AS-i address = 0
Programming Data Table
Programming data for 62 Slaves
AS interface - Device for A/B slave
addressing (default device)
Programming data for 31 Slaves
AS interface (optional)
I/O configuration 7 hex (4 inputs / 4 outputs)
see below: Bit configuration table
7 hex (4 inputs / 4 outputs)
see below: Bit configuration table
ID code A hex F hex
Extended ID code 1 7 hex (F hex)
Extended ID code 2 E hex (F hex)
Profile S-7. A.E S-7. F.F
Bit configuration table
Data bit D3 D2 D1 D0
Input External initiator S4 Position 3 Position 2 Position 1
Output Not used Solenoid valve 3 Solenoid valve 2 Solenoid valve 1
Parameter bit P3 P2 P1 P0
Output Not used Not used Not used Not used
english
