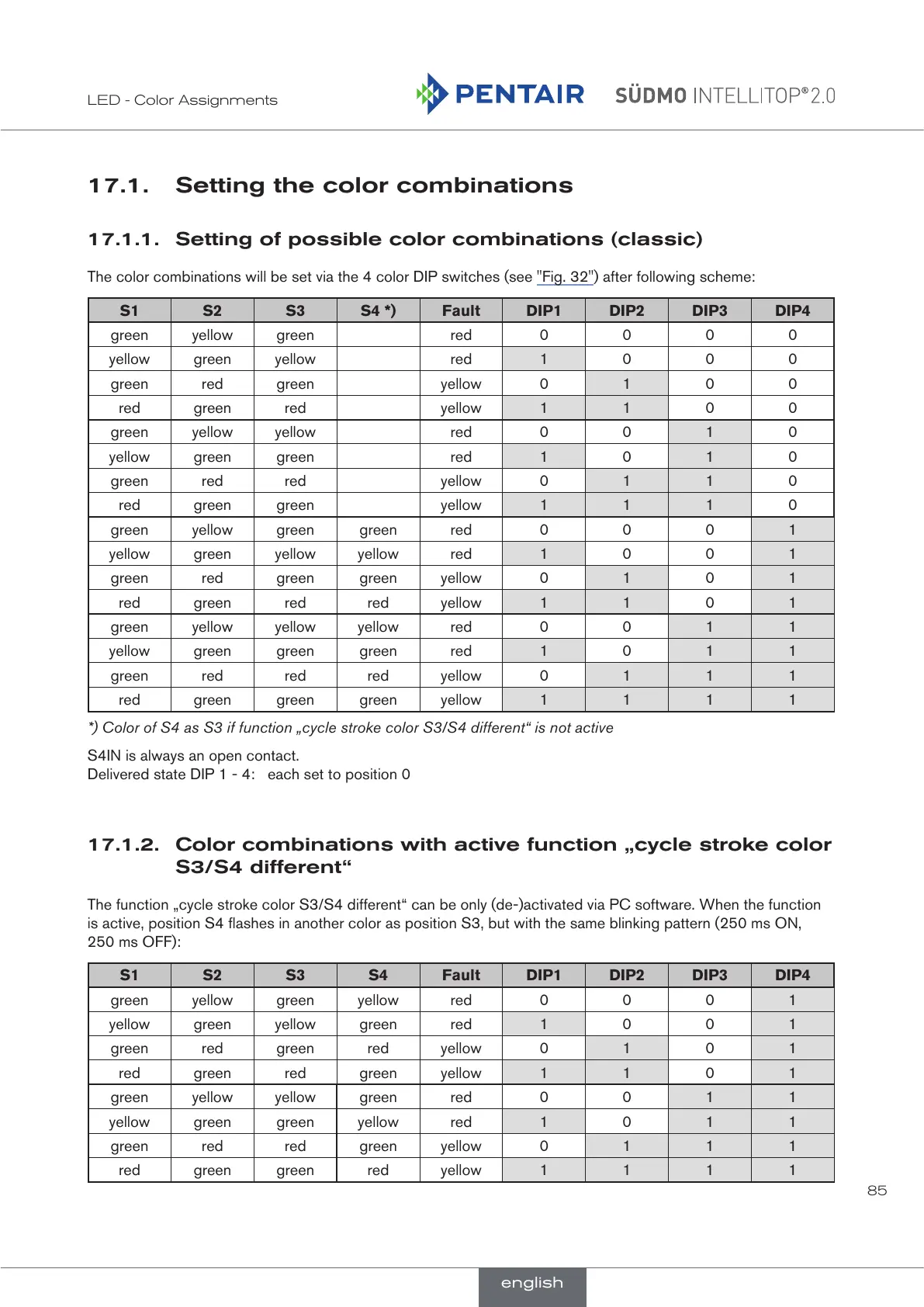

LED - Color Assignments
17.1. Setting the color combinations
17.1.1. Setting of possible color combinations (classic)
The color combinations will be set via the 4 color DIP switches (see "Fig. 32") after following scheme:
S1 S2 S3 S4 *) Fault DIP1 DIP2 DIP3 DIP4
green yellow green red 0 0 0 0
yellow green yellow red 1 0 0 0
green red green yellow 0 1 0 0
red green red yellow 1 1 0 0
green yellow yellow red 0 0 1 0
yellow green green red 1 0 1 0
green red red yellow 0 1 1 0
red green green yellow 1 1 1 0
green yellow green green red 0 0 0 1
yellow green yellow yellow red 1 0 0 1
green red green green yellow 0 1 0 1
red green red red yellow 1 1 0 1
green yellow yellow yellow red 0 0 1 1
yellow green green green red 1 0 1 1
green red red red yellow 0 1 1 1
red green green green yellow 1 1 1 1
*) Color of S4 as S3 if function „cycle stroke color S3/S4 different“ is not active
S4IN is always an open contact.
Delivered state DIP 1 - 4: each set to position 0
17.1.2. Color combinations with active function „cycle stroke color
S3/S4 different“
The function „cycle stroke color S3/S4 different“ can be only (de-)activated via PC software. When the function
is active, position S4 flashes in another color as position S3, but with the same blinking pattern (250 ms ON,
250 ms OFF):
S1 S2 S3 S4 Fault DIP1 DIP2 DIP3 DIP4
green yellow green yellow red 0 0 0 1
yellow green yellow green red 1 0 0 1
green red green red yellow 0 1 0 1
red green red green yellow 1 1 0 1
green yellow yellow green red 0 0 1 1
yellow green green yellow red 1 0 1 1
green red red green yellow 0 1 1 1
red green green red yellow 1 1 1 1
