LED - Color Assignments

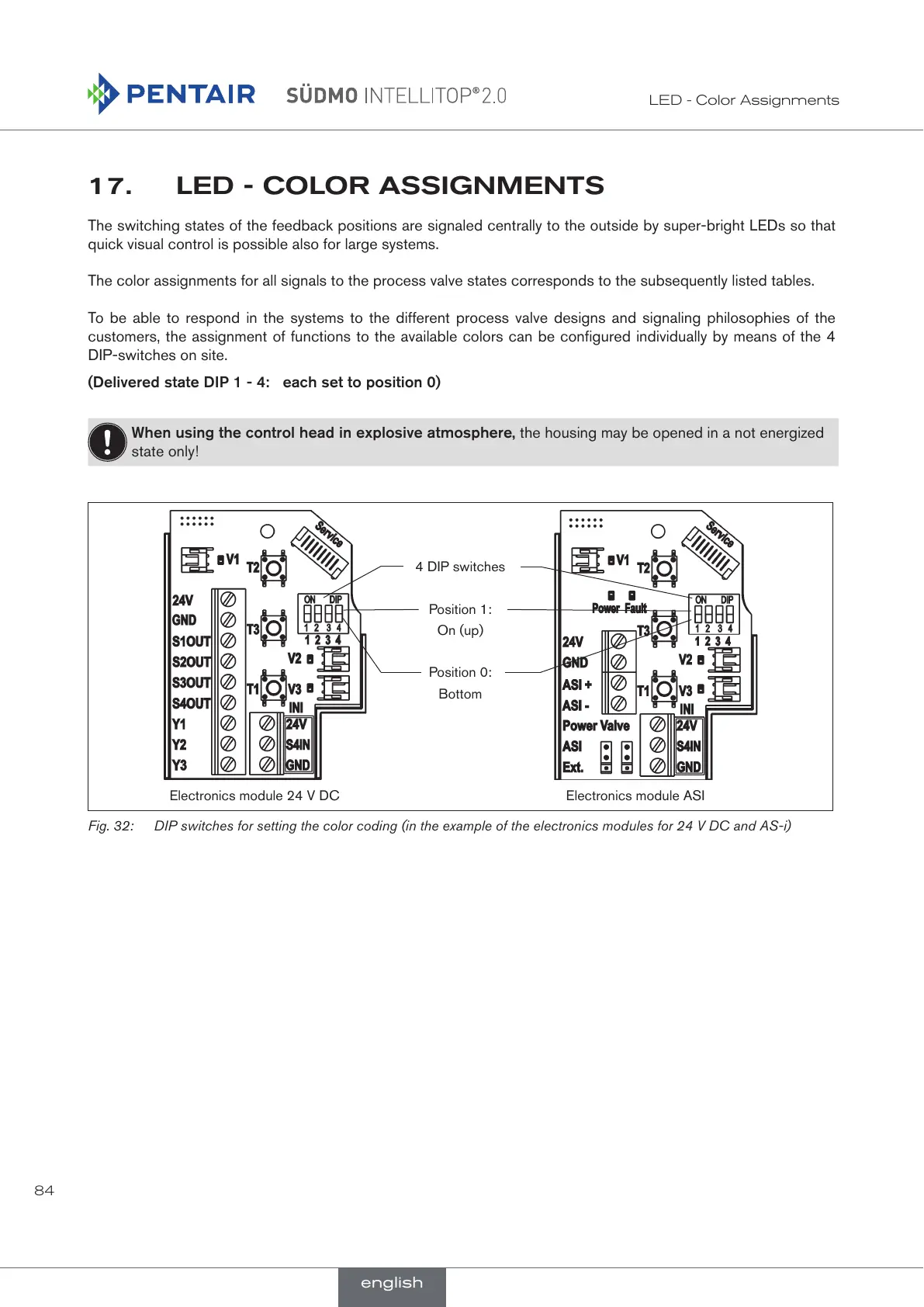

17. LED - COLOR ASSIGNMENTS
The switching states of the feedback positions are signaled centrally to the outside by super-bright LEDs so that
quick visual control is possible also for large systems.
The color assignments for all signals to the process valve states corresponds to the subsequently listed tables.
To be able to respond in the systems to the different process valve designs and signaling philosophies of the
customers, the assignment of functions to the available colors can be configured individually by means of the 4
DIP-switches on site.
(Delivered state DIP 1 - 4: each set to position 0)
When using the control head in explosive atmosphere, the housing may be opened in a not energized
state only!
4 DIP switches
Position 1:
On (up)
Position 0:
Bottom
Electronics module 24 V DC Electronics module ASI
Fig. 32: DIP switches for setting the color coding (in the example of the electronics modules for 24 V DC and AS-i)
