Spare Parts

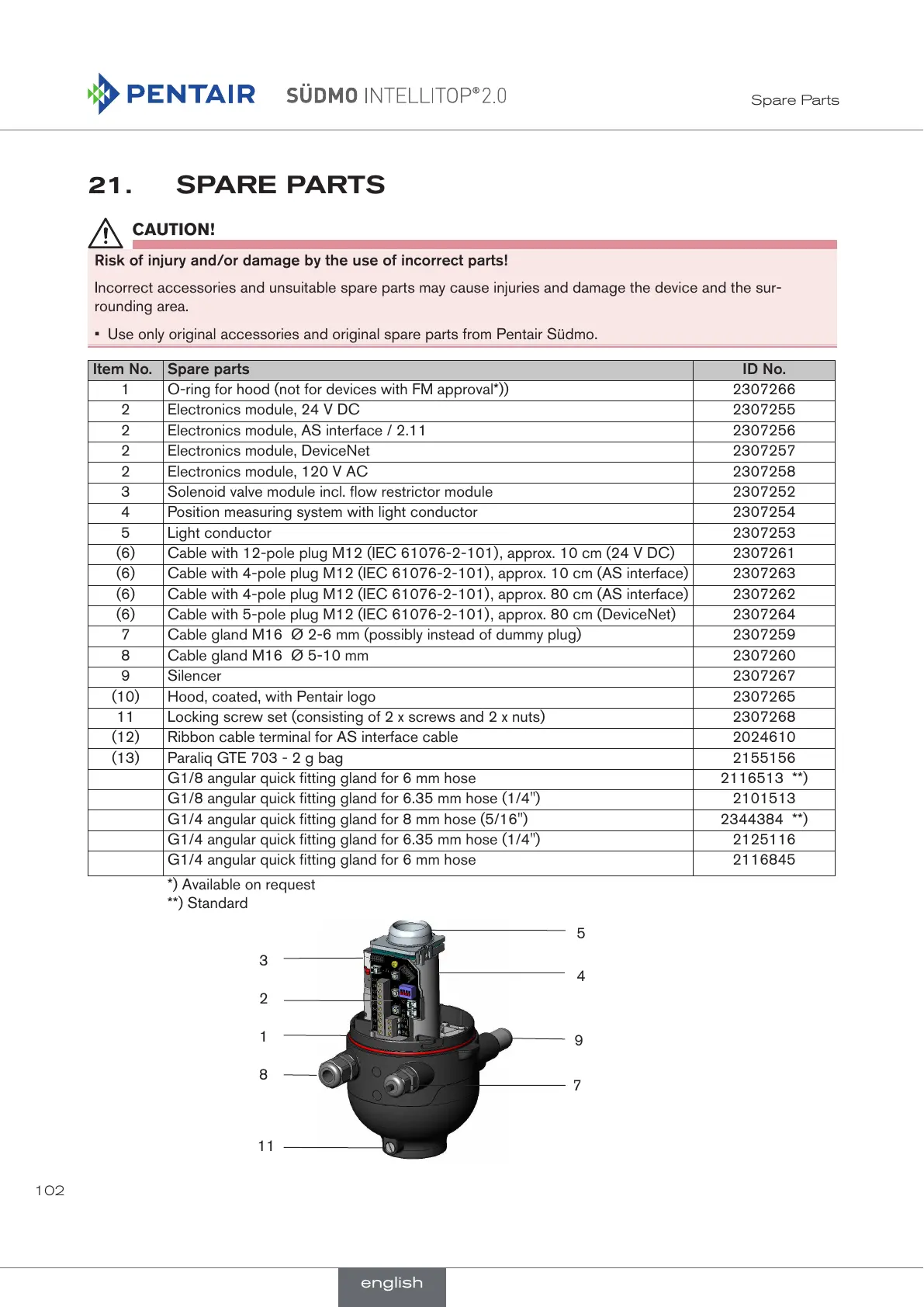

21. SPARE PARTS
CAUTION!
Risk of injury and/or damage by the use of incorrect parts!
Incorrect accessories and unsuitable spare parts may cause injuries and damage the device and the sur-
rounding area.
• Use only original accessories and original spare parts from Pentair Südmo.
Item No. Spare parts ID No.
1 O-ring for hood (not for devices with FM approval*)) 2307266
2 Electronics module, 24 V DC 2307255
2 Electronics module, AS interface / 2.11 2307256
2 Electronics module, DeviceNet 2307257
2 Electronics module, 120 V AC 2307258
3 Solenoid valve module incl. flow restrictor module 2307252
4 Position measuring system with light conductor 2307254
5 Light conductor 2307253
(6) Cable with 12-pole plug M12 (IEC 61076-2-101), approx. 10 cm (24 V DC) 2307261
(6) Cable with 4-pole plug M12 (IEC 61076-2-101), approx. 10 cm (AS interface) 2307263
(6) Cable with 4-pole plug M12 (IEC 61076-2-101), approx. 80 cm (AS interface) 2307262
(6) Cable with 5-pole plug M12 (IEC 61076-2-101), approx. 80 cm (DeviceNet) 2307264
7 Cable gland M16 Ø 2-6 mm (possibly instead of dummy plug) 2307259
8 Cable gland M16 Ø 5-10 mm 2307260
9 Silencer 2307267
(10) Hood, coated, with Pentair logo 2307265
11 Locking screw set (consisting of 2 x screws and 2 x nuts) 2307268
(12) Ribbon cable terminal for AS interface cable 2024610
(13) Paraliq GTE 703 - 2 g bag 2155156
G1/8 angular quick fitting gland for 6 mm hose 2116513 **)
G1/8 angular quick fitting gland for 6.35 mm hose (1/4") 2101513
G1/4 angular quick fitting gland for 8 mm hose (5/16") 2344384 **)
G1/4 angular quick fitting gland for 6.35 mm hose (1/4") 2125116
G1/4 angular quick fitting gland for 6 mm hose 2116845
*) Available on request
**) Standard
1
2
3
5
4
7
8
9
11
english
