System Description
5.3.2. Structure of the control head (feedback top)
Electronics module
with connection
terminals, service
interface and
Teach-in buttons
(T1 to T3)
Cable
gland
Cable gland
Position measuring
system with LEDs
in 3 colors
Sealing lug on the lower
housing part; (for securing
the hood using a lead
seal or plastic self-cutting
screws)
2 locking screws (shoulder
screws M5); no sealing function,
merely as protection against
pulling off from the hub flange
Locking groove (3x)
Pressure relief valve
(rear side)

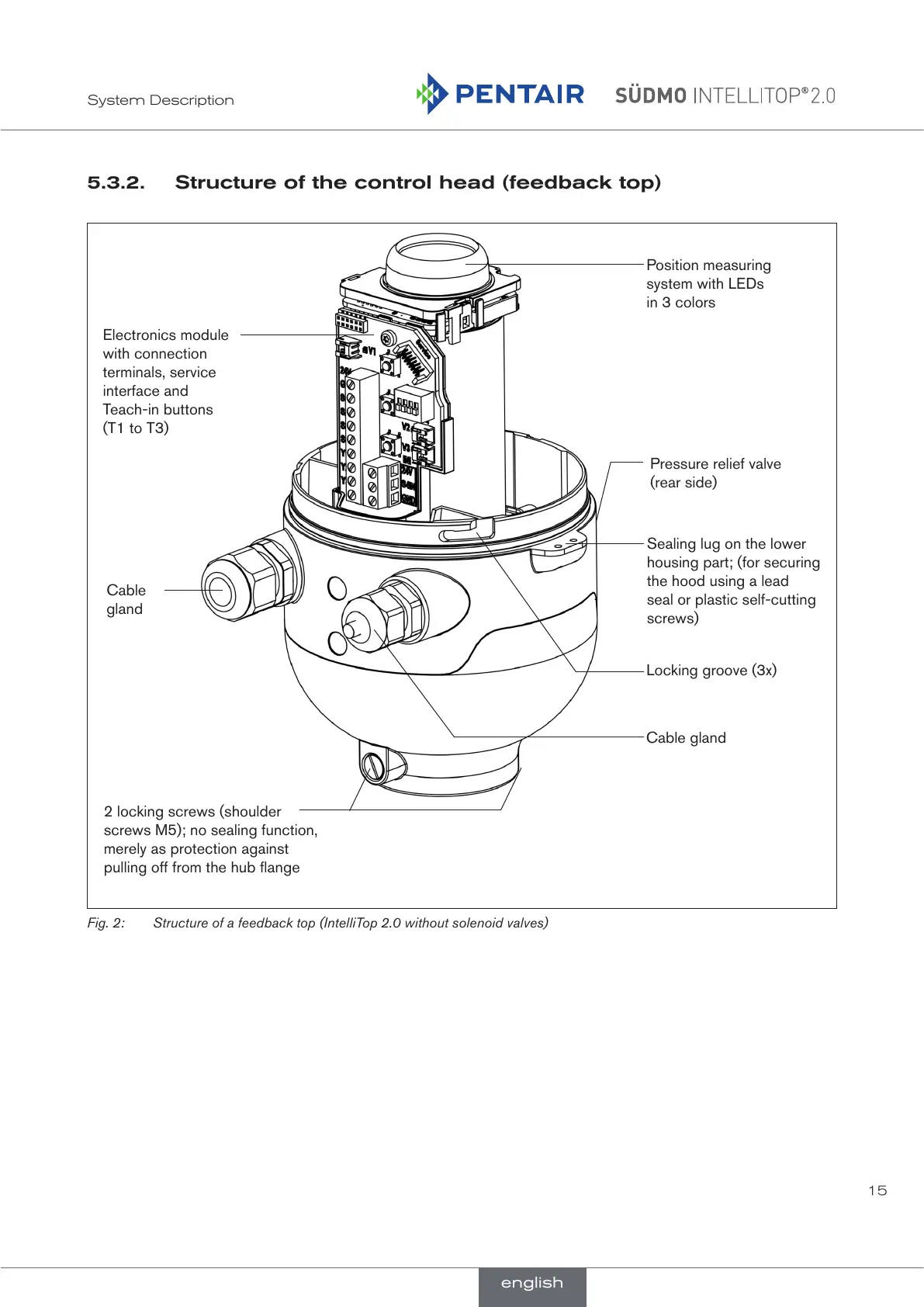

Fig. 2: Structure of a feedback top (IntelliTop 2.0 without solenoid valves)
