86
LED - Color Assignments

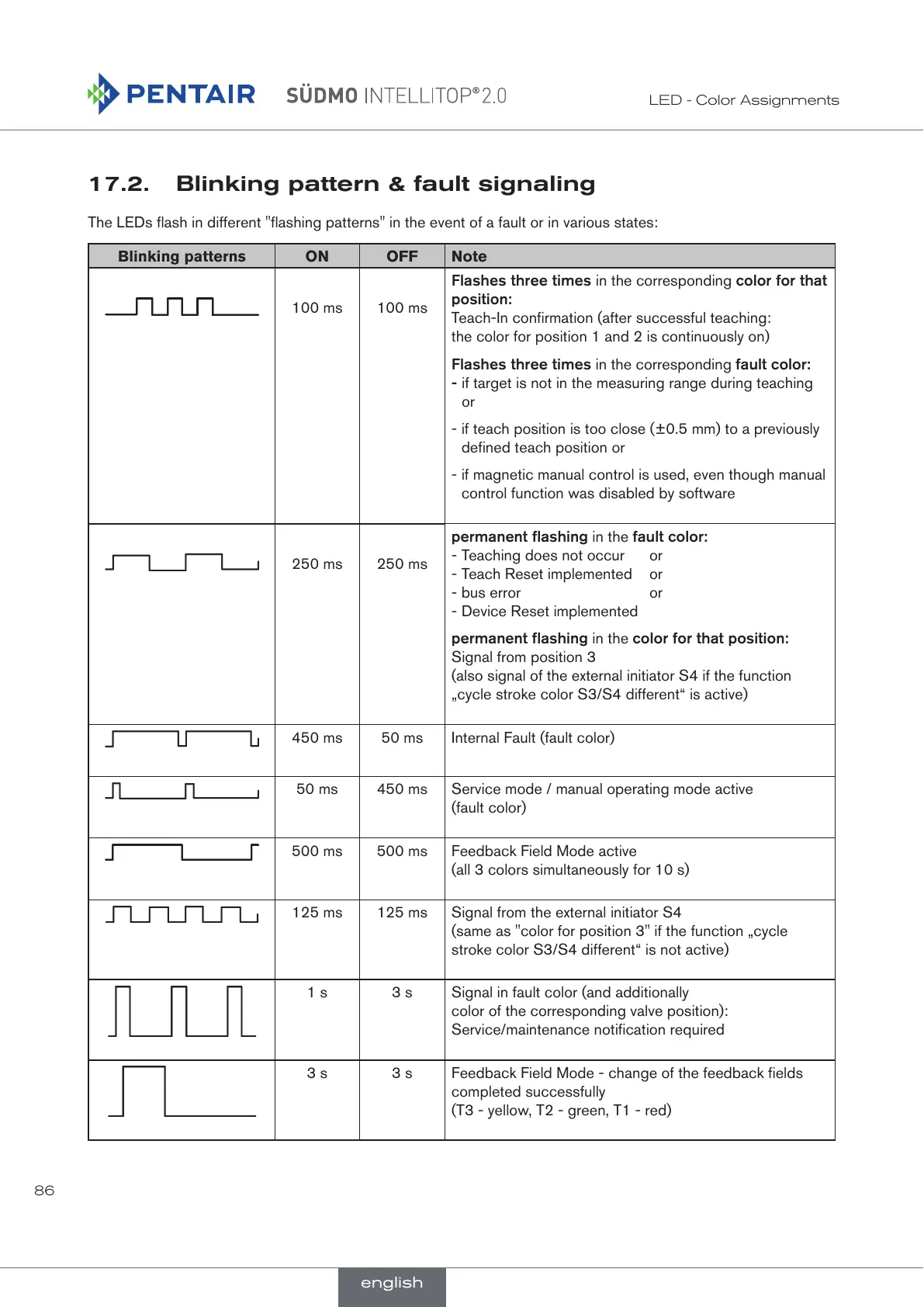

17.2. Blinking pattern & fault signaling
The LEDs flash in different "flashing patterns" in the event of a fault or in various states:
Blinking patterns ON OFF Note
100 ms 100 ms
Flashes three times in the corresponding color for that
position:
Teach-In confirmation (after successful teaching:
the color for position 1 and 2 is continuously on)
Flashes three times in the corresponding fault color:
- if target is not in the measuring range during teaching
or
- if teach position is too close (±0.5 mm) to a previously
defined teach position or
- if magnetic manual control is used, even though manual
control function was disabled by software
250 ms 250 ms
permanent flashing in the fault color:
- Teaching does not occur or
- Teach Reset implemented or
- bus error or
- Device Reset implemented
permanent flashing in the color for that position:
Signal from position 3
(also signal of the external initiator S4 if the function
„cycle stroke color S3/S4 different“ is active)
450 ms 50 ms Internal Fault (fault color)
50 ms 450 ms Service mode / manual operating mode active
(fault color)
500 ms 500 ms Feedback Field Mode active
(all 3 colors simultaneously for 10 s)
125 ms 125 ms Signal from the external initiator S4
(same as "color for position 3" if the function „cycle
stroke color S3/S4 different“ is not active)
1 s 3 s Signal in fault color (and additionally
color of the corresponding valve position):
Service/maintenance notification required
3 s 3 s Feedback Field Mode - change of the feedback fields
completed successfully
(T3 - yellow, T2 - green, T1 - red)
english
