Name: Pentair SUDMO IntelliTop 2.0
Brand: Pentair
Rating: 5 (1 reviews)

To Next Page

To Previous Page

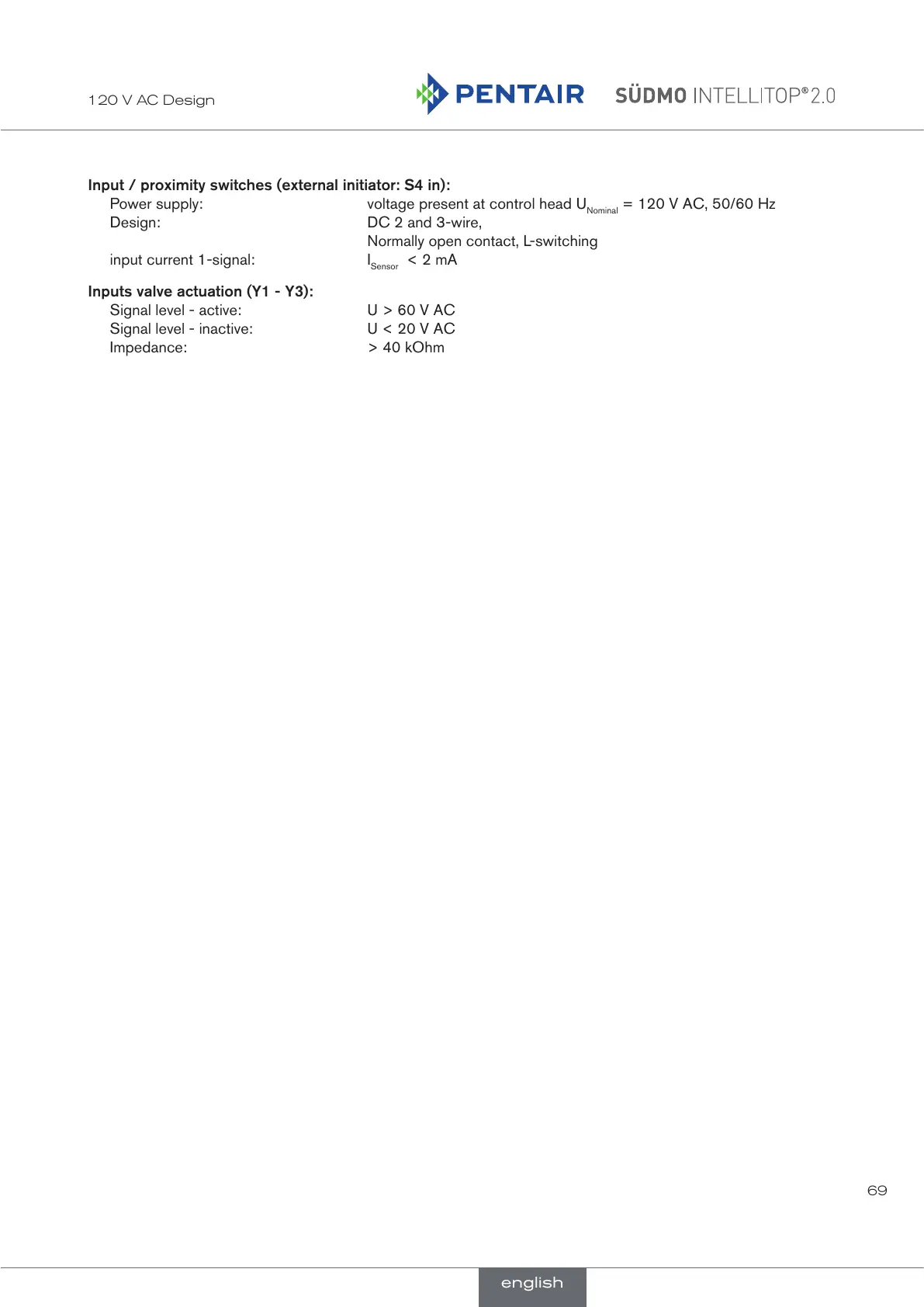

120 V AC Design

Input / proximity switches (external initiator: S4 in):

Power supply: voltage present at control head U

Nominal

= 120 V AC, 50/60 Hz

Design: DC 2 and 3-wire,

Normally open contact, L-switching

input current 1-signal: I

Sensor

< 2 mA

Inputs valve actuation (Y1 - Y3):

Signal level - active: U > 60 V AC

Signal level - inactive: U < 20 V AC

Impedance: > 40 kOhm

english

Default Chapter3
- Table of Contents3
1 Operating Instructions8
2 Authorized Use9
- Export Restrictions9
3 Basic Safety Instructions10
4 General Information12
- Contact Address12
- Warranty12
- Information on the Internet12
5 System Description13
- Intended Application Area13
- General Description13
- Functions / Options / Designs14
6 Technical Data19
- Operating Conditions19
- Conformity with the Following Standards19
- Rating Plate Specifications20
- Information on the Additional Plates21
- Mechanical Data22
- Pneumatic Data24
- Position Measuring System Data25
- Factory Settings in the Firmware26
- Resetting the Device (Device Reset)28
7 Installation30
- Safety Instructions30
- Assembly of the Control Head30
8 Opening and Closing the Housing33
- Safety Instructions33
  - Opening the Housing33
  - Closing the Housing33
9 Pneumatic Installation35
- Safety Instructions35
- Pneumatic Connection of the Control Head35
  - Pneumatic Connection (Standard)36
  - Retrofitting in Case of Intensive External Cleaning36
- Flow Restriction Function of the Solenoid Valves37
600 DC - Design39
- Electrical Connection Options39
- Electrical Data39
- Design Aid41
- Safety Instructions42
- Electrical Installation / Start-Up42
  - Cable Gland with Screw Terminals42
  - Multi-Pole Connection45
11 As Interface - Design46
- Definition46
- Electrical Connection Options for as Interface47
- Number of Connectable Control Heads and Maximum Length of the Bus Line47
- Electrical Data48
- Design Aid50
- Safety Instructions51
- Electrical Installation, as Interface52
- Programming Data54
12 Devicenet Design55
- Definition55
- Electrical Connection Option55
- Devicenet Specification55
  - Total Line Length and Maximum Line Length According to Devicenet Specification56
  - Drop Line Length56
- Electrical Data57
- Safety Position if the Bus Fails57
- Design Aid58
- Safety Instructions59
- Electrical Installation - Devicenet59
- Network Topology of a Devicenet System61
- Configuring the Devicenet Address / Baud Rate61
  - Settings of the Devicenet Address62
  - Setting the Baud Rate63
- Configuration of the Process Data63
  - Static Input Assemblies63
  - Static Output Assembly64
- Configuration of the Device64
  - Configuration of the Safety Position of Solenoid Valves if Bus Error64
  - Configuration Example65
- Display of the Status Leds in the Event of a Bus Error66
  - State of Device Status LED "Modules66
  - State of Bus Status LED "Network67
13 Ac Design68
- Electrical Connection Options68
- Electrical Data68
- Design Aid70
- Safety Instructions71
- Electrical Installation / Start-Up71
14 Connection of an External Initiator74
15 Design for Double-Acting Actuators76
- Anomalies76
- Fluid Diagram76
- Electrical Connection (24 V / 120 V Design)76
- Programming Data (AS-I Design)76
16 Position Measuring System77
- Setting the Position Measuring System (Teach-In)77
- Teach-In Functions79
- Changing the Feedback Field - Feedback Field Mode (FFM)83
17 Led - Color Assignments84
- Setting the Color Combinations85
  - Setting of Possible Color Combinations (Classic)85
  - Color Combinations with Active Function „Cycle Stroke Color S3/S4 Different85
- Blinking Pattern & Fault Signaling86
- Signal Priorities87
18 Service Mode / Manual Control90
- Magnetic Manual Control90
- Mechanical Manual Control91
19 Maintenance, Troubleshooting92
- Safety Instructions92
- Safety Positions93
- Maintenance / Service94
- Cleaning94
- Malfunctions94
20 Replacement of Components and Modules96
- Safety Instructions96
- Changing the Electronics Module97
- Changing the Valves98
- Changing the Position Measuring System99
21 Spare Parts102
22 Shutdown103
- Safety Instructions103
- Dismantling the Control Head Intellitop 2.0103
23 Packaging and Transport104
24 Storage104
25 Disposal104

Brand	Pentair
Model	SUDMO IntelliTop 2.0
Category	Control Unit
Language	English

Pentair SUDMO IntelliTop 2.0 User Manual
