Pentair SuperFlo VS Installation Guide

11

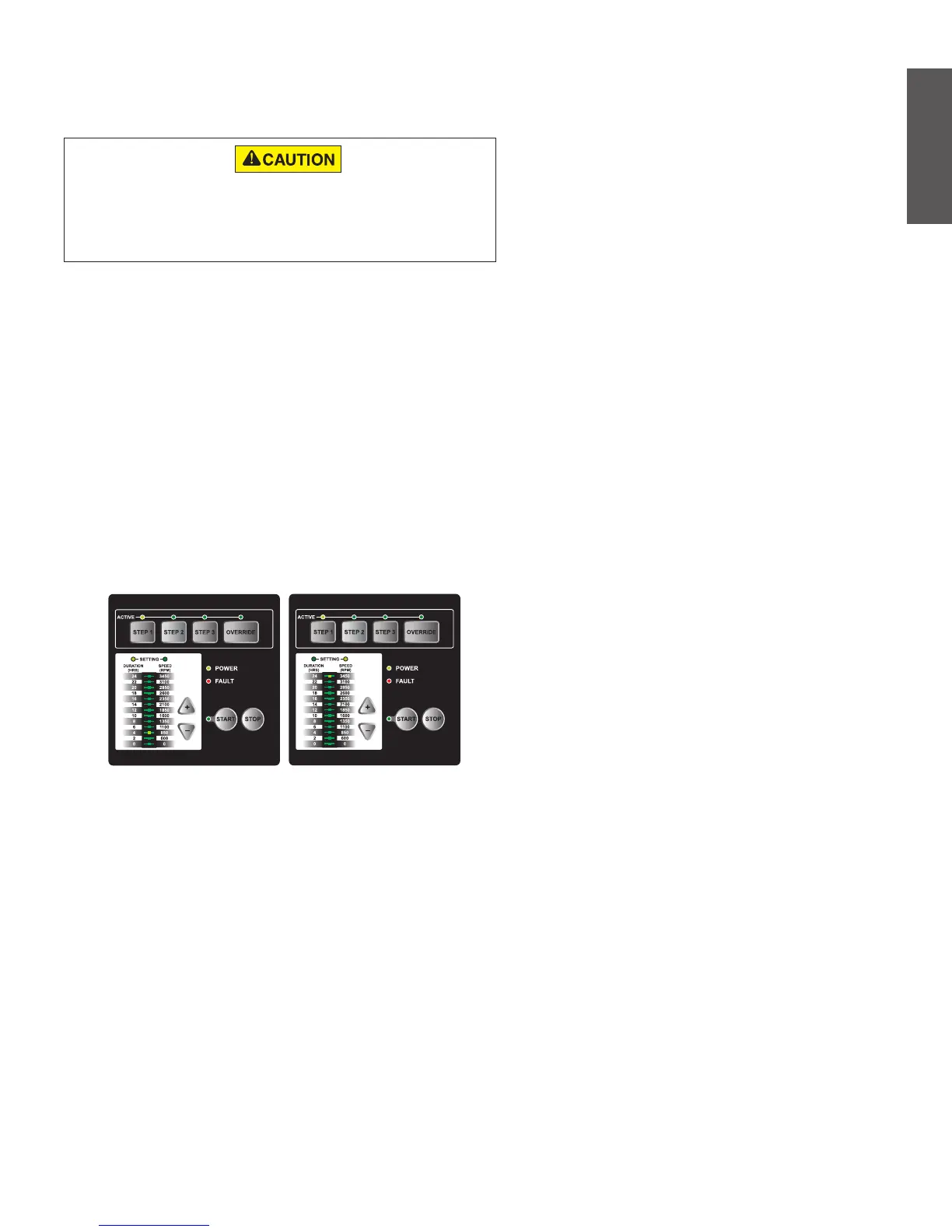

Operating the SuperFlo
®
VS Variable Speed
Pump from the Control Panel
1. Press the START key and the pump will run the
programmed 24 hour duration schedule. The
START event will be stored. Should a power
outage occur, the pump will automatically re-start
at STEP 1 when power is restored.
2. The pump will always run the PRIMING sequence
when it starts from the OFF state, including
when it automatically restarts following a power
outage. The default Prime setting is dened in the
“Priming” section, see page 14.
3. The pump then starts running in STEP 1 at the
programmed DURATION and SPEED. The
“ACTIVE LED” for STEP 1 will switch ON. The
DURATION and SPEED setting LEDs along with
the respective bar graph LED will blink back and
forth every three (3) seconds.
4. This sequence will then repeat for STEP 2 and
then STEP 3 without the pump stopping.
5. At the end of STEP 3, the pump will wait if
necessary for the completion of the 24-hour
schedule. During this waiting period (if
applicable), all of the “active step LEDs” will
remain OFF. However, the START LED will still
be illuminated. After completion of the 24 hour
schedule, the system restarts at STEP 1 and this
cycle will repeat indenitely until the user presses
the STOP key.
Note: Pressing a STEP key other than for
the STEP currently running will cause an
immediate transition to the newly selected
STEP. The pump will continue with the
programmed schedule from that point
forward.
Note: If STOP is pressed during normal
schedule operation, the 24 hour schedule
will stop. When START is pressed again,
the 24 hour schedule will start from
STEP 1.
Note: If power is lost while the pump
is running a 24 hour schedule, upon
restoration of power the pump will start the
24 hour schedule from STEP 1.
Note: If an automation input (provided
from an external source) is detected, the
pump will start running on the STEP 1,
STEP 2, STEP 3, or OVERRIDE speed
corresponding to the digital input. Upon
removing the digital input (provided from
an external source), the pump will stop
and the user will need to press START
to begin the 24 hour schedule operation.
However, if START was already pressed
prior to receiving a digital input, then the
pump will resume running the 24 hour
schedule once the digital input is removed.
Note: Pressing STOP at any time turns the
pump OFF and clears the start time for the
24 hour schedule.
If power is connected to the pump motor, pressing any of the following buttons
referred to in this section could result in the motor starting. Failure to recognize
this could result in personal injury or damage to equipment.
English

Pentair SuperFlo VS Specifications

General

Horsepower	1.5 HP
Control	Digital
Energy Efficiency	ENERGY STAR Certified
Warranty	1-year limited warranty
Motor Type	Permanent Magnet Motor
Maximum Head	50 feet
Speed Range	Variable Speed
Type	Variable Speed
Union Connection	2-inch
Port Size	2-inch
