Pentair SuperFlo VS Installation Guide

9
Navigation Overview
• +, - keys Increase/decrease selected value.
• Pressing any key following a change accepts the current value displayed inside the setting.

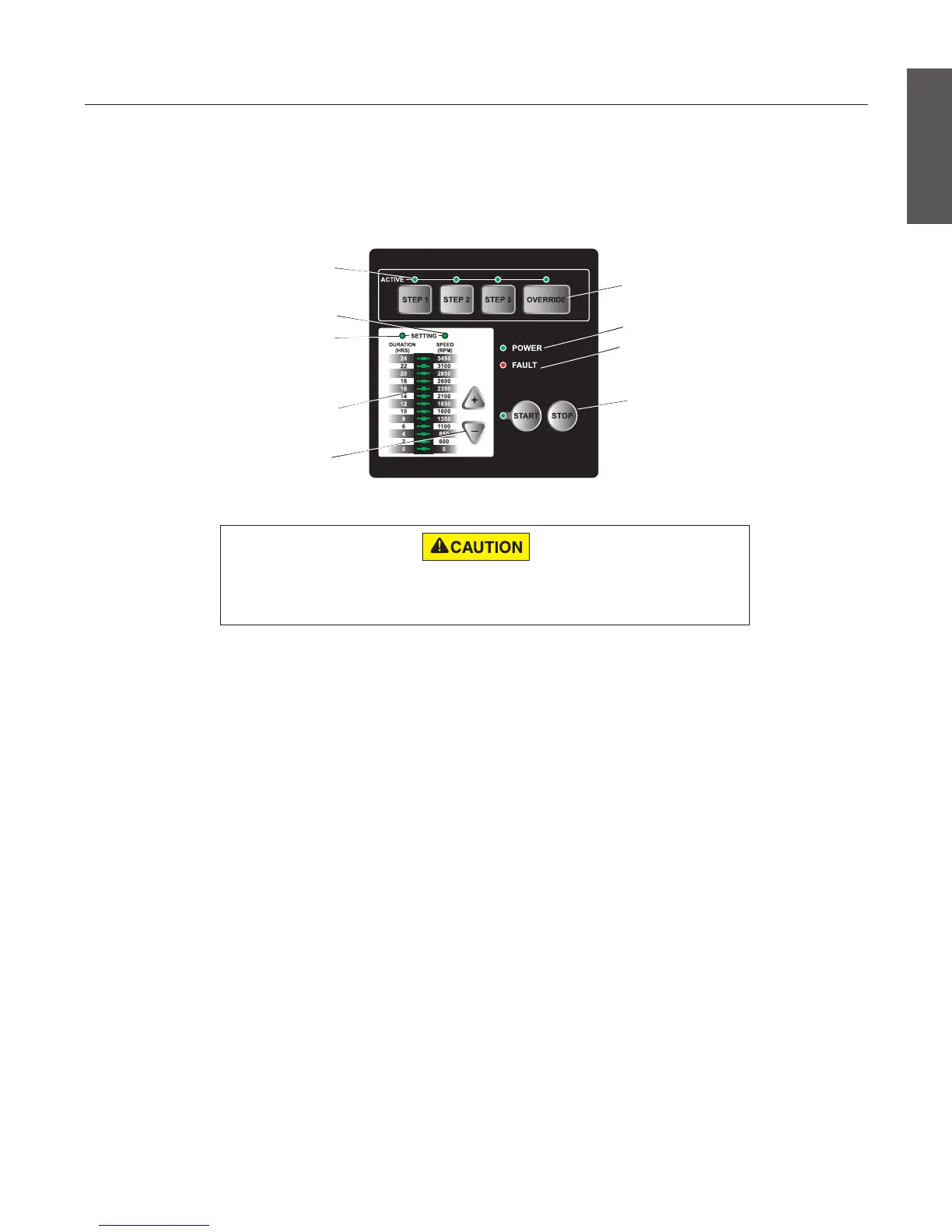

Figure 3: Control Panel
Note: The START button must be pressed for the pump to operate. The START LED will illuminate after the
button has been pressed indicating the pump is capable of operating. Pressing the stop button will turn o
the START LED and stop the motor if running.
If power is connected to the SuperFlo
®
VS Variable Speed Pump motor, pressing any of the
following buttons referred to in this section could result in the motor starting. Failure to recognize
this could result in personal injury or damage to equipment.
CONTROL PANEL OVERVIEW
Programming
Buttons (x4)
Power LED
Fault LED
Start Button
Stop Button
Active Step
LEDs (x4)
Speed LED
Duration (Hrs.)LED
Bar Graph
+ / - Buttons
English

Pentair SuperFlo VS Specifications

General

Horsepower	1.5 HP
Control	Digital
Energy Efficiency	ENERGY STAR Certified
Warranty	1-year limited warranty
Motor Type	Permanent Magnet Motor
Maximum Head	50 feet
Speed Range	Variable Speed
Type	Variable Speed
Union Connection	2-inch
Port Size	2-inch
