B1 Work on the construction site
Anchoring
Check if the cone fits correctly and
isclean.
Assembly of Scaffold Mounting
Ring M24
1. Remove the Anchor Positioning Stud
M24 (5.11) from the cone with an
Allen Key SW 14.
(Fig. B1.16)
2. Place the Scaffold Mounting Ring
M24 (5.6) on the cone cup of the
screw-on or climbing cone (5.1/5.3)
and secure using bolt M24 x 120 ISO
4014-10.9 (5.7). (Fig. B1.17)
3. Firmly tighten bolt by hand using
socket wrench SW 36.
(Fig. B1.18)

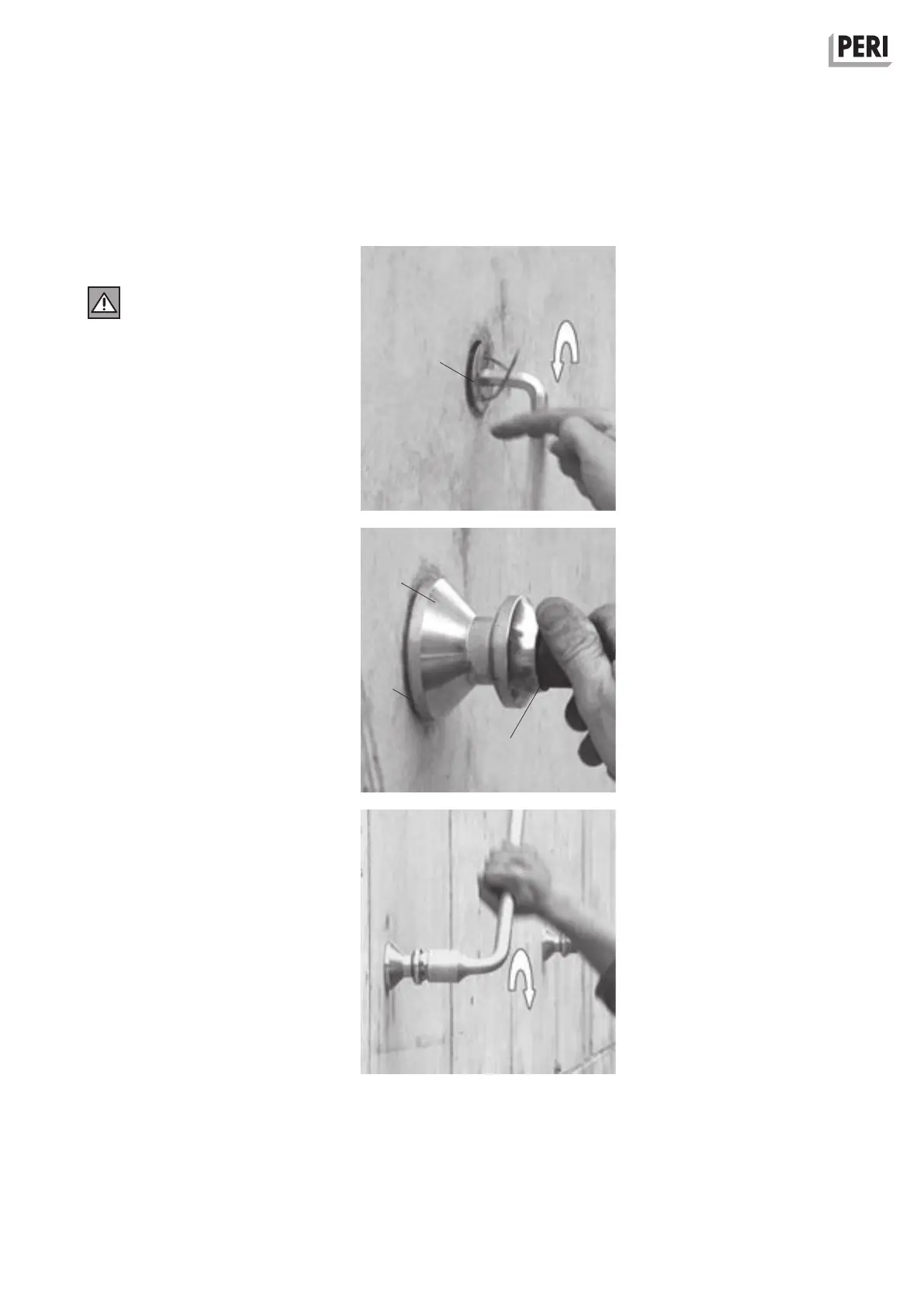

Fig. B1.16
Fig. B1.17
Fig. B1.18
5.11
5.6
5.1
5.7
5.3
