29Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B1 Work on the construction site
Mounting the finishing
platform CB 160
Fixing points for the Platform Posts
CB 225 and Guardrail Posts CB 190
and 370.
Firstly, only loosely tighten the bolt
(9.6) for an articulated connection.
Concreting height 1.50 – 3.10 m
Distance of the working platform to the
finishing platform 3.65 m.
Required free space: ≥ 0.42 m

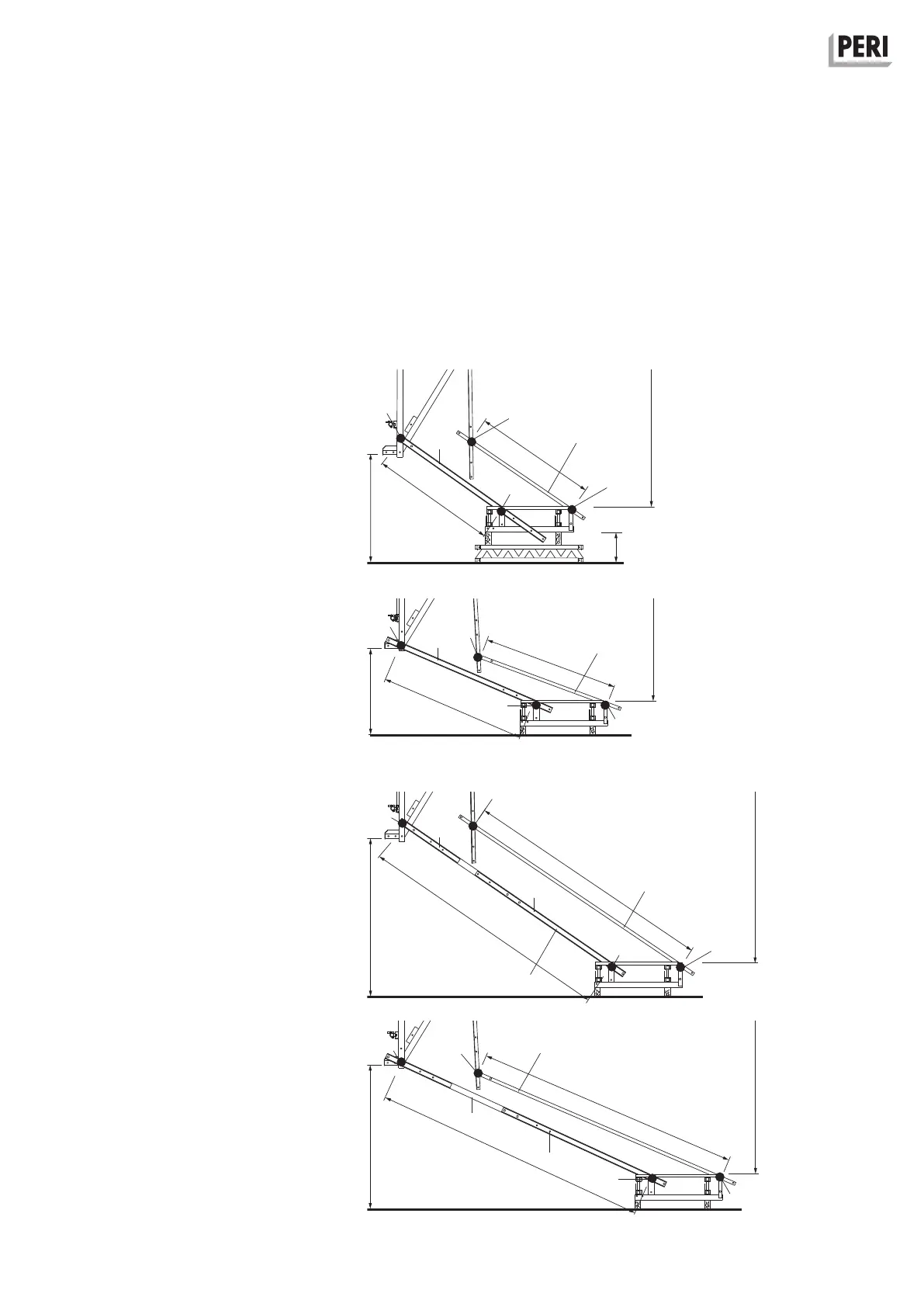

Mark out Platform Post CB 225 (9.1)
and Guardrail Post 190 (9.4) at the top.
(Fig. B1.26a)
Fig. B1.26a
Fig. B1.26b
Fig. B1.26c
Fig. B1.26d
3.65 m
42
Concreting height 2.00 – 3.60 m
Distance of working platform to the
finishing platform 4.15 m.
Mark out Platform Post CB 225 (9.1)
and Guardrail Post 190 (9.4) at the
bottom.
(Fig. B1.26b)
Concreting height 3.30 – 4.90 m
Distance of the working platform to the
finishing platform 5.45 m.
Firmly bolt the Platform Post CB 225 (9.1)
to the Post Extension CB 180 (9.2).
Mark out the Handrail Post CB 370 (9.5)
at the top.
(Fig. B1-26c)
Concreting height 3.80 – 5.40 m
Distance of the working platform to the
finishing platform 5.95 m.
Firmly bolt the Platform Post CB 225 (9.1)
to the Post Extension CB 180 (9.2).
Mark out the Handrail Post CB 370 (9.5)
at the bottom.
(Fig. B1.26d)
1.69
5
m
1.75 m
1.50 m
4.15 m
1.89
5
m
2.05 m
1.20 m
5.45 m
3.49
5
m
3.55 m
2.20 m
5.95 m
3.69
5
m
3.85 m
2.00 m
9.1
9.6
9.4
9.6
9.6
9.6
9.1
9.6
9.4
9.6
9.6
9.6
9.6
9.2
9.6
9.1
9.5
9.6
9.6
9.2
9.6
9.6
9.1
9.5
9.2
9.6
9.6
