30 Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B1 Work on the construction site
Fitting of the finishing
Platform CB 160
Finishing tasks
7. Slowly lift the platform unit.
The finishing platform (8) pivots under
the working platform (1).
8. Safety rails: attach guardrails (12.1) to
the edge platforms by means of
coach screws M8 x 70, see C1
Guardrails. (Fig. B1.27)
Alternative: safety rails can also be
mounted after installing the platform
unit if suitable measures are in place.
9. Lower the platform unit from the
structure and attach it to the Scaf-
fold Mounting Ring (5.6) in the next
climbing cycle, see B4.
10. Close the planking on the finishing
platform (8).
(Fig. B1.28)
11. Mount the missing Bolts M16 x 130
ISO 4014-8.8 with Nuts (9.6) ISO
7042. Tighten bolts.
12. Mount wind bracing (7), see B1 As-
sembly of wind bracing.
(Fig. B1.29)
For controlled moving guide ropes are
to be used.

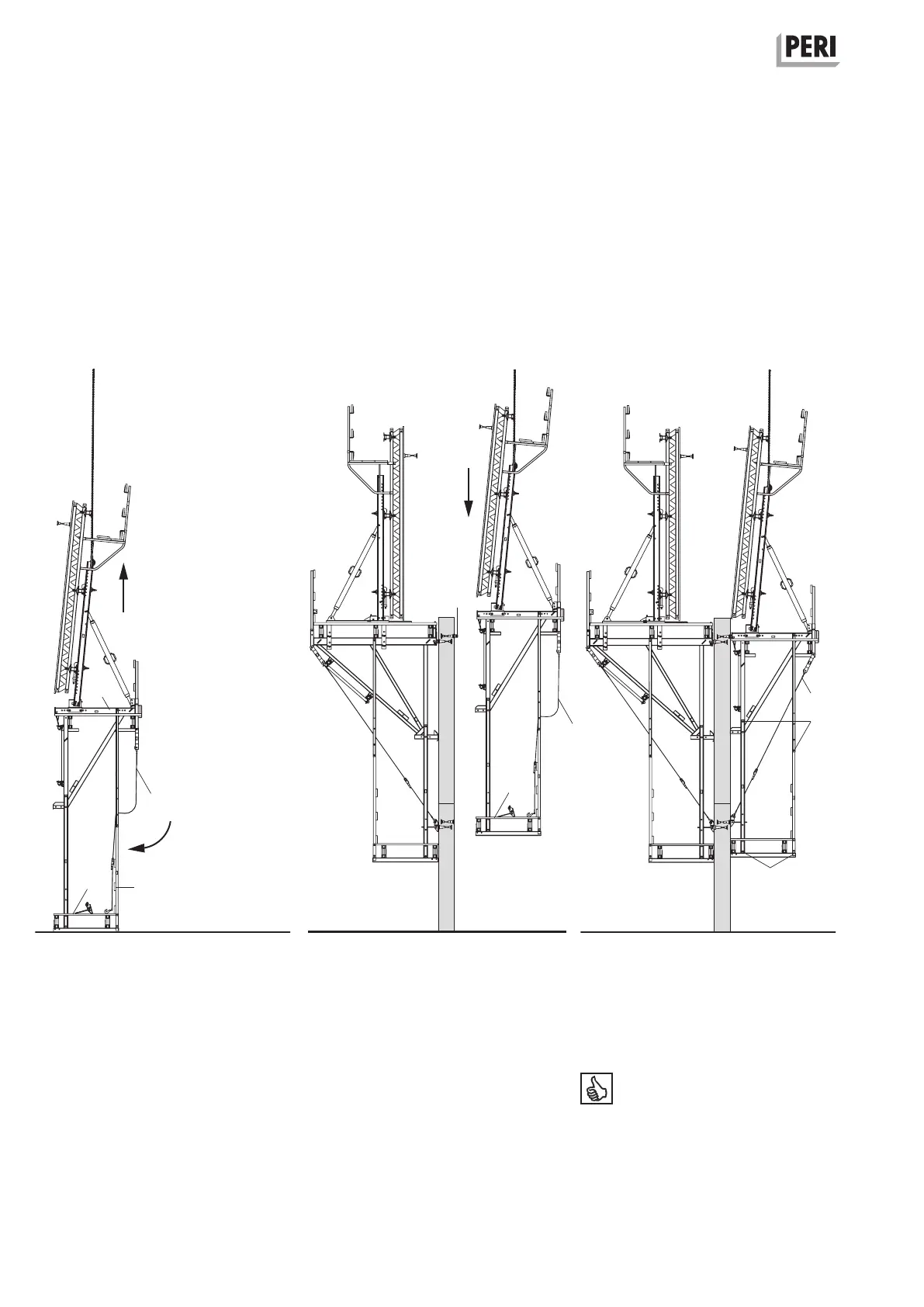

Fig. B1.28Fig. B1.27 Fig. B1.29
