37Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B2 Assembly of formwork elements
VARIO GT 24 element
Assembly of VARIO GT 24 formwork
element on CB 160 Bracket
1. Completely move back the sliding
block (2.1) of the Adjusting Unit
CB160 (2), SW 19, see B3.
(Fig. B2.05a)
2. Open or cut out decking (10.3) of the
concreting platform (10.2) in the area
of the strongback.
Secure loose decking components.
3. Attach formwork with concreting
platform (10) to the strongback (4)
and position on the platform.
(Fig. B2.05b)
4. Fix strongback to the adjusting unit
by means of bolts Ø 25 x 180 and
cotter pins (4.6).
Standard case: use those holes in the
strongback facing the wall.
(Fig. B2.05c)

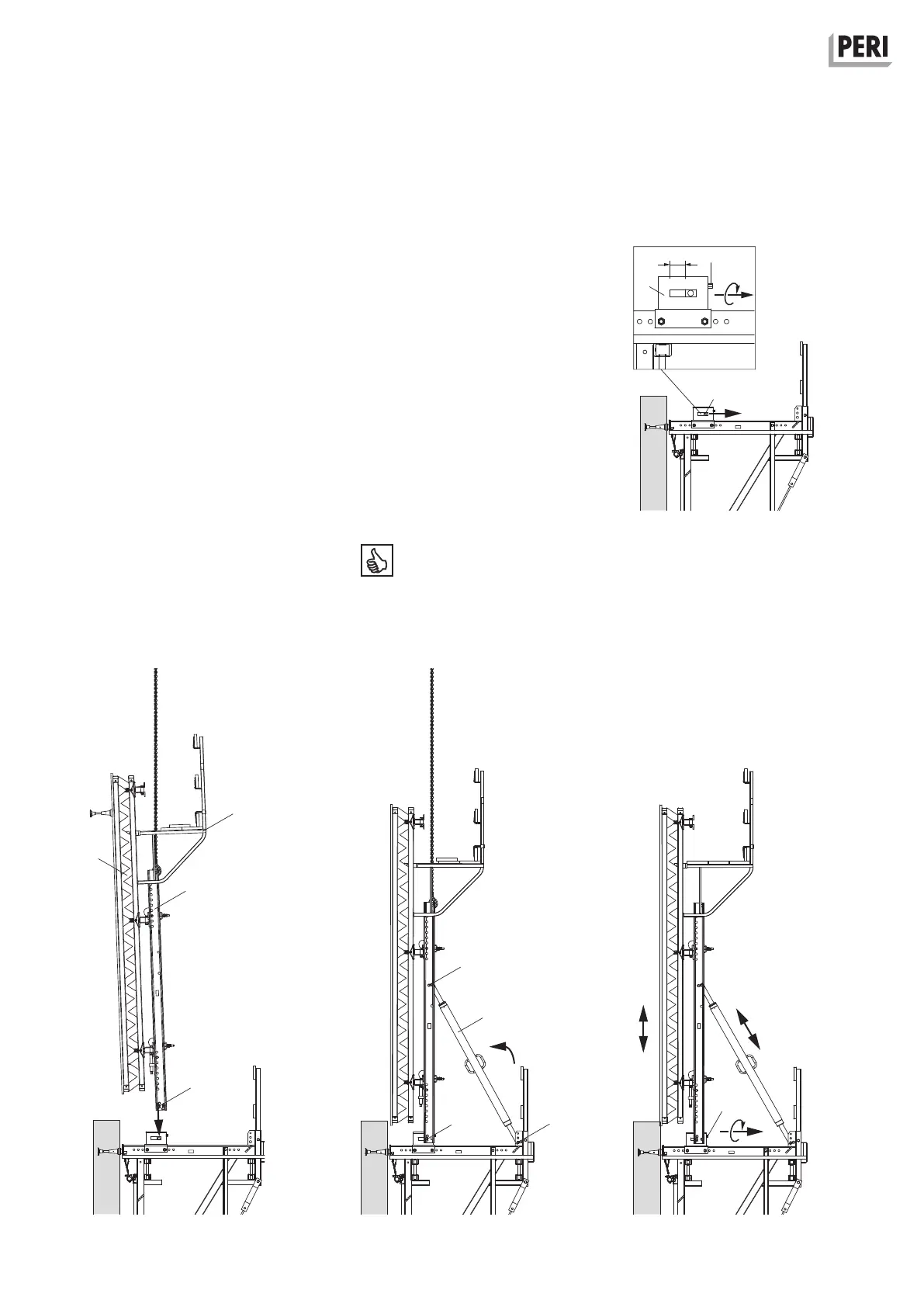

Fig. B2.05c Fig. B2.05dFig. B2.05b
Fig. B2.05a
2.1
10
4
10.2
10.3
SW 19
3.2
3.1
3.2
4.6
4.6
5. Fix Adjustable Brace 164-224 (3.1) to
the bracket using bolts and cotter
pins (3.2). Spindle to approx. length
and attach to strongback.
(Fig. B2.05c)
6. Detach lifting gear. Close decking
(10.3) on concreting platform.
7. Move sliding block (2.1) in the
adjusting unit with formwork to the
wall, SW 19.
(Fig. B2.05d)
8. Align formwork, see B3.
For controlled moving a guide ropes are
to be used.
