CB 160 Climbing Formwork
B2 Assembly of formwork elements
VARIO GT 24 element
Moving of VARIO GT 24 elements
Follow the instructions of use for the
Crane Splice 24!
Dismantling
1. Move back the sliding block (2.1) in the
adjusting unit, SW 19, and laterally
brace the strongbacks.
2. Attach formwork (10) to Crane Splice
24 (10.6) and tension lifting gear.
3. Remove all Waler Fixations U100 –
U120 (4.4).
4. Lift formwork and remove
(e.g. storage area).
(Fig. B2.06)
When laying the formwork down, the
guardrail (10.5) on the concreting plat-
form (10.2) must be removed in order
to avoid any damage caused by the lift-
ing gear.

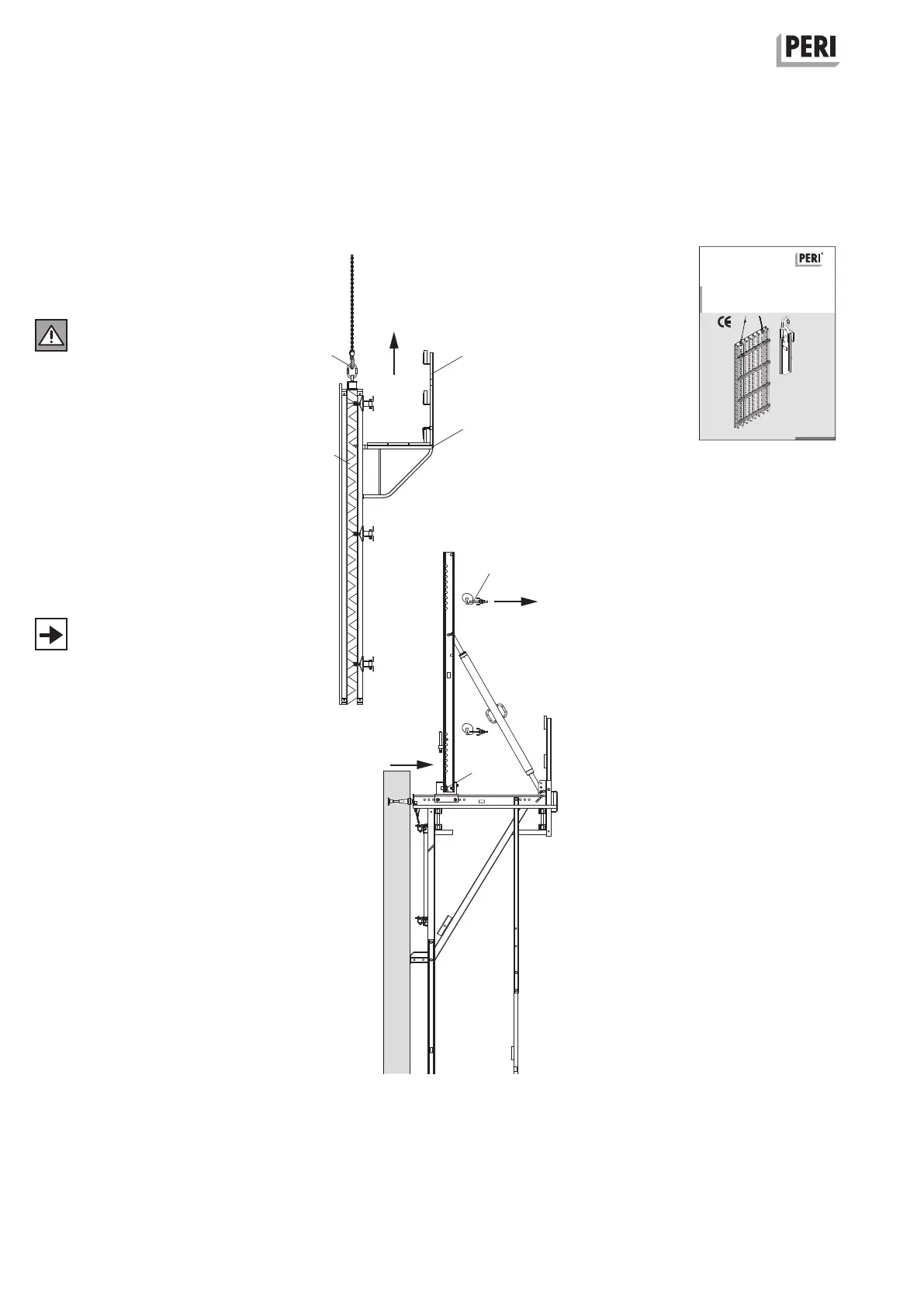

Fig. B2.06
SW 19
10.5
10.2
10.6
10
4.4
2.1
