41Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B2 Assembly of formwork elements
TRIO element
Mounting of formwork element on
CB 160 Bracket

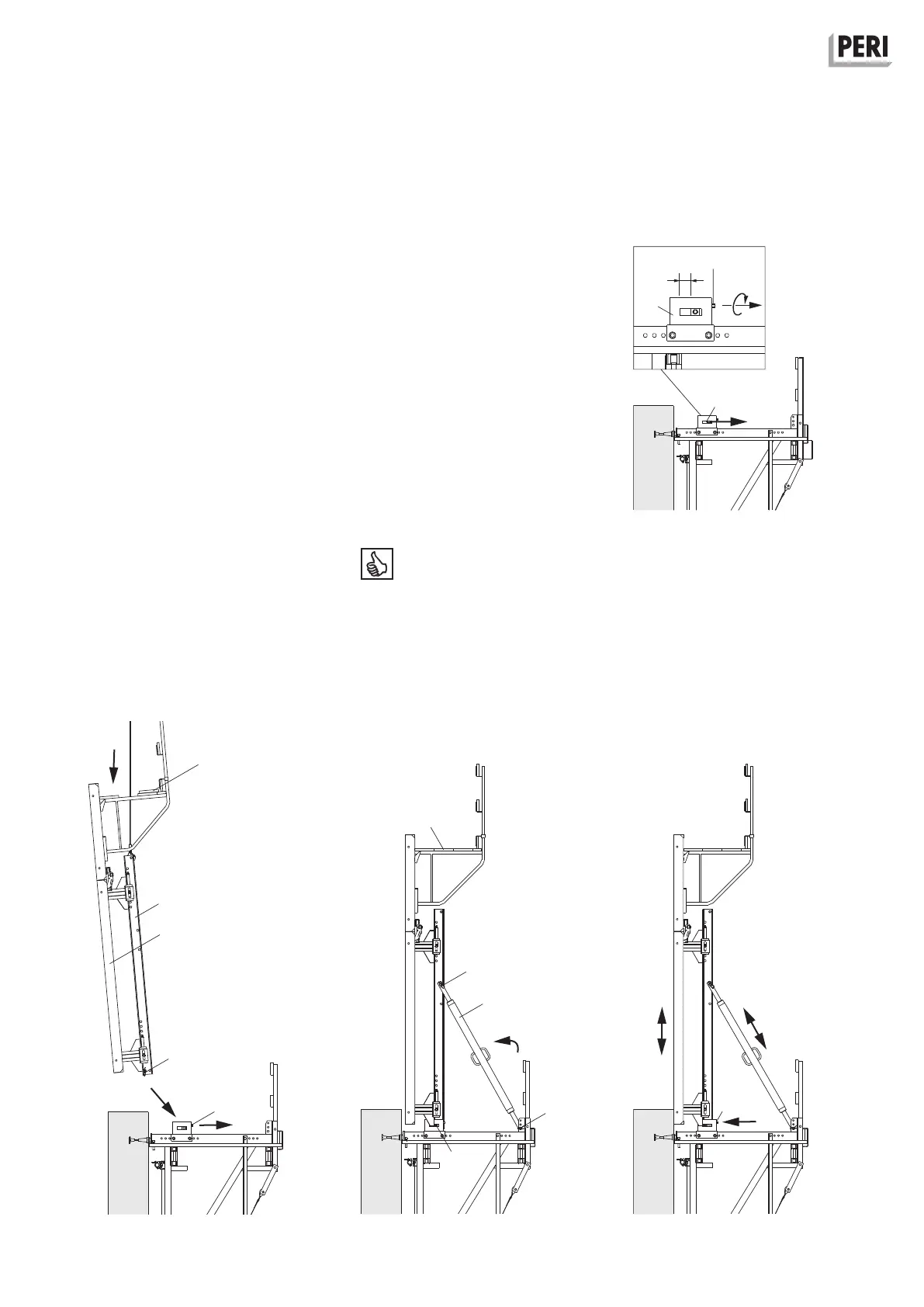

1. Move back the sliding block (2.1)
in the adjusting unit (2), SW 19,
(Fig. B2.17).
2. Open concreting platform decking
(10.3) above the strongback. Secure
loose decking components.
3. Attach formwork unit (10) with con-
creting platform to the strongback (4)
and position on the platform.
(Fig. B2.18)
4. Fix strongback to the adjusting unit
by means of bolts Ø 25 x 180 and
cotter pins (4.6).
Standard case: use those holes in the
strongback facing the wall.
(Fig. B2.18)
Fig. B2.18 Fig. B2.19 Fig. B2.20
10.3
4
10
4.6
2.1
SW 19
10.3
3.2
3.1
3.2
4.6
2.1
SW 19
5. Fix Adjustable Brace 164-224 (3.1)
to bracket using bolts and cotter pins
(3.2). Spindle to approx. length and
attach to strongback.
(Fig. B2.19)
6. Detach lifting gear. Close decking
(10.3) on concreting platform.
7. Move sliding block (2.1) in the
adjusting unit with formwork to the
wall, SW 19.
8. Align formwork, see B3.
(Fig. B2.20)
For controlled moving a guide ropes are
to be used.
Fig. B2.17
SW 19
7
2
2.1
