42
Versetzhaken MAXIMO 1,5 t
Art.-Nr. 115168
Ausgabe 06 | 2013
Originalbetriebsanleitung
Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B2 Assembly of formwork elements
TRIO element
Exchange of formwork
Follow Instructions for Use:
Lifting Hook MAXIMO 1.5 t!
Dismantling
1. Move back the sliding block (2.1) in
the adjusting unit, SW 19, and lateral-
ly brace the strongbacks.
2. Fix TRIO Lifting Hook (10.6) to the
formwork unit (10) and then attach
lifting gear.
3. Tension lifting gear.
4. Release bail pin of the Connectors
CB (4.5).
5. Lift formwork and remove (e.g. storage
area).

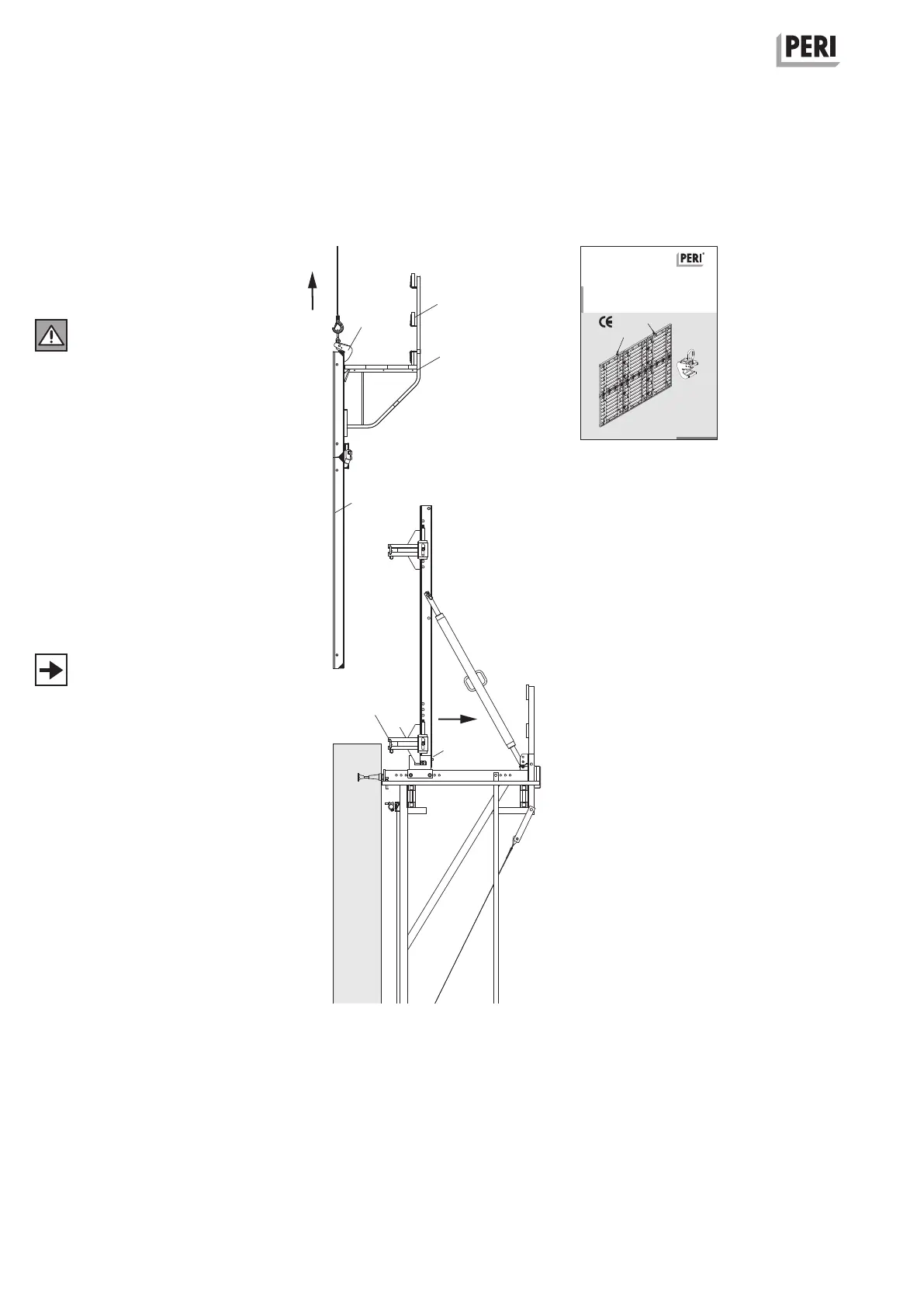

(Fig. B2.21)
When laying the formwork down, the
guardrail (10.5) on the concreting platform
(10.2) must be removed (by customer)
in order to avoid any damage through
the lifting gear.
Fig. B2.21
10.5
10.2
10.6
10
4.5
4.7
2.1
SW 19
