Peri CB 160 - B4 Moving the Units; Preparation for Moving Units

43Instructions for Assembly and Use – Standard Configuration
CB 160 Climbing Formwork
B2 Assembly of formwork elements
TRIO element
Exchange of formwork elements
Preparation for initial assembly
1. Move back the sliding unit (2.1) in the
adjusting unit, SW 19, see B3.
2. Fix Connectors CB (4.5) to the
Strongback CB (4) using bolts Ø 25 x
180 and cotter pins (4.6).
3. Fix strongback to the adjusting unit
by means of bolts ø 25 x 180 and cot-
ter pins (4.6).
4. Attach Adjustable Brace (3.1) to bracket
and strongback using bolts ø 25 x 180,
cotter pins (3.2) and laterally brace
strongbacks.

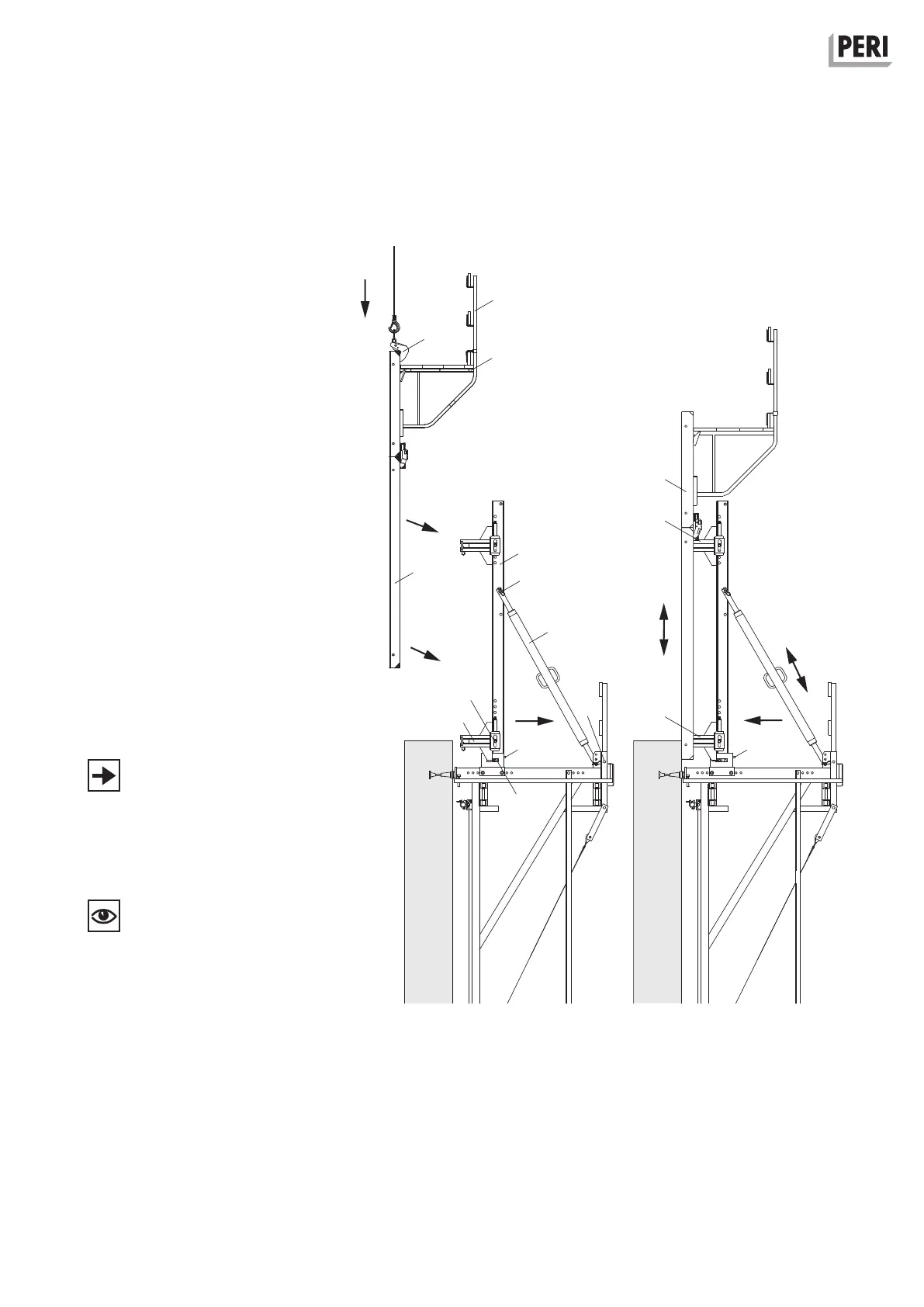

(Fig. B2.22)
Assembly
5. Insert formwork unit (10) with MAXIMO
Lifting Hook (10.6) into the Connectors
CB (4.5) and secure using bail pin (4.7).
6. Remove lifting gear and lifting hook.
7. Move sliding block (2.1) in the adjust-
ing unit to the wall, SW 19.
8. Align formwork, see B3.
(Fig. B2.23)
Attention must be paid to ensure that
the strongback does not collide with
the TRIO Scaffold Bracket TRG 80 (10.2)
or decking (10.3). If necessary, remove
scaffold bracket and decking.
Check the clearance of the top height
adjustment, ≥ 5 mm.
Fig. B2.22 Fig. B2.23
10.2
10.3
10.6
10
3.2
4
3.1
3.2
4.5
4.6
2.1
SW 19
4.6
4.7
4.5
10
4.7
4.5
2.1
SW 19
