Adjustment
13 - 42

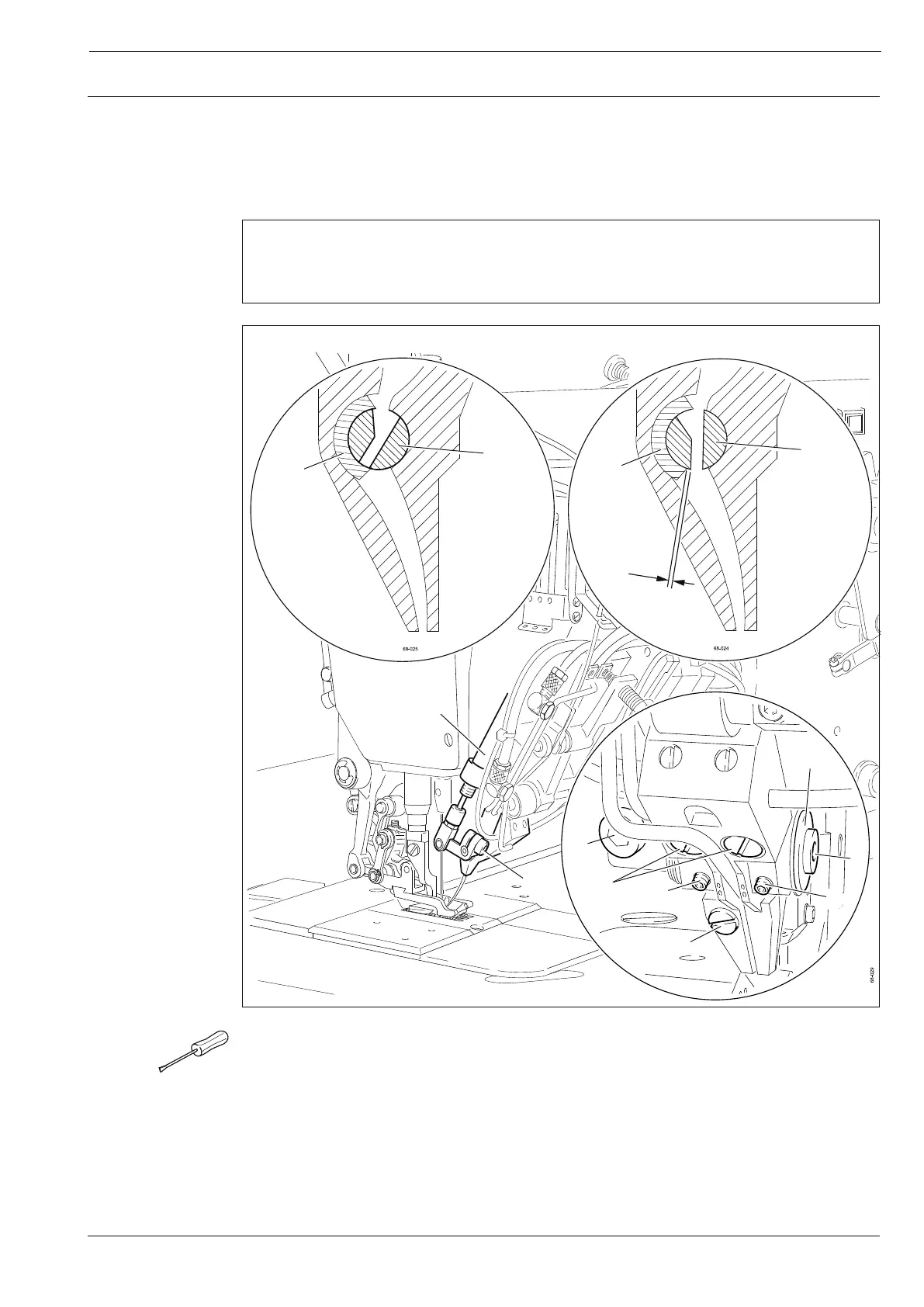

Fig. 13 - 39
2
7
2
7
ca. 0,1 mm
48-07
1
1
2
3
4
4
5
6
3
13.07 Adjusting the tape feeding device
13.07.01 Adjusting the knife
Requirement
With cylinder 6 extended, the edge of the inside blade 2 should be approx. 0.1 mm above
the edge of the outside blade 7.
● Remove cover (screw 1).
● Adjust inside blade 2 (screw 3) in accordance with the requirement.
Changing the knife:
● Loosen screw 4.
● Remove retaining ring 5 and pull out the complete knife towards the left.
● Assembly in the reverse order.
Basic positionCutting position
