Adjustment
13 - 32

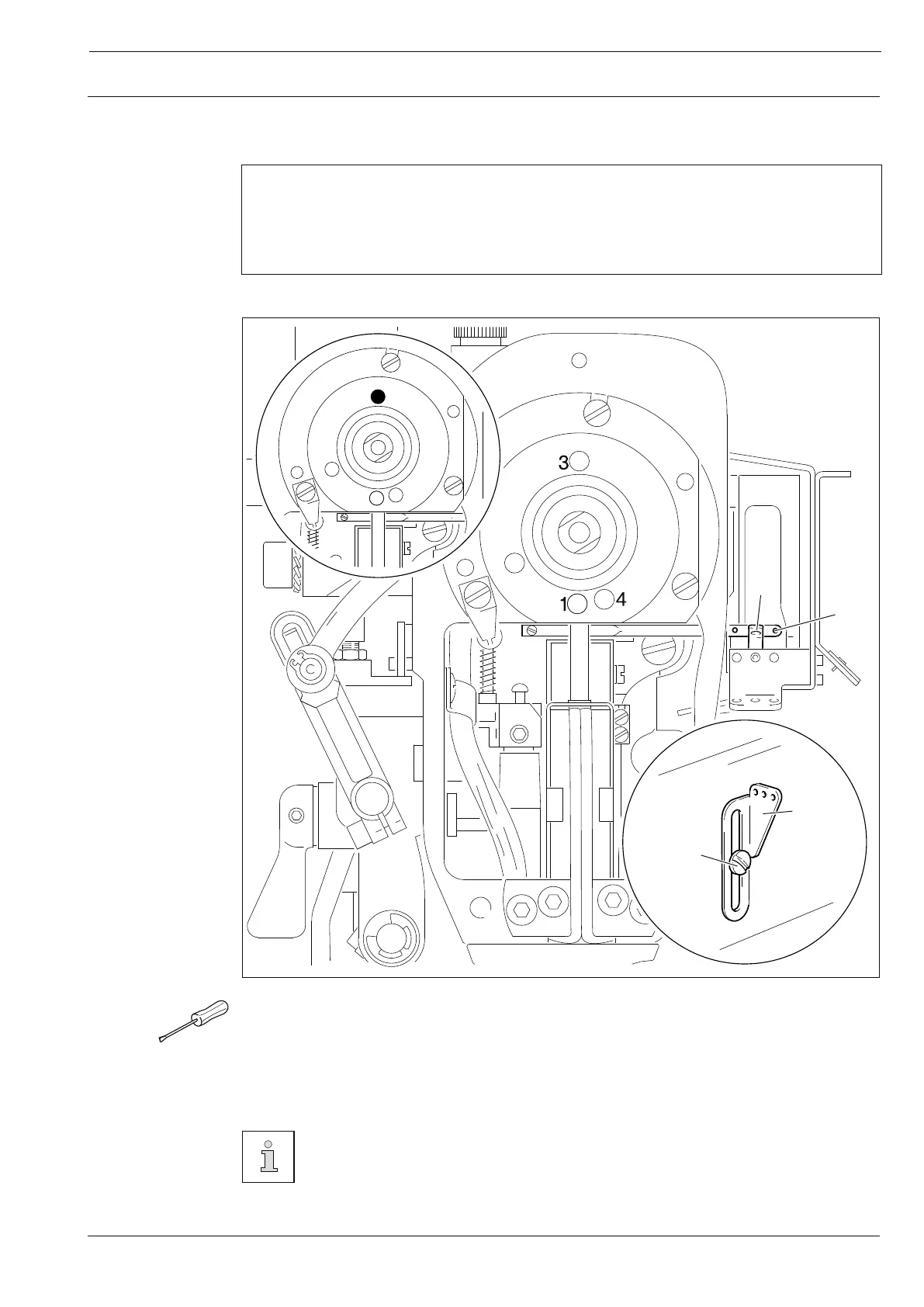

Fig. 13 - 29
1
4
2
3
3
4
1
13.05.29 Basic setting of the needle thread regulator and the thread guide
Requirement
1. With the needle bar at its BDC (hole 3), the eye of the needle thread regulator 1 must be
at the same height as the hole in the needle thread puller 4.
2. The thread guide 2 must be vertical and fastened in the middle of the elongated hole.
● Bring the needle bar to its BDC.
● After you have loosened the screw, move the needle thread regulator 1 according to
requirement 1.
● Tighten the screw of the needle thread regulator.
● Align the thread guide 2 (screw 3) according to requirement 2.
Depending on the workpiece and the type of thread, it may be necessary to
deviate from the basic setting.
