8 - 2
Mounting and commissioning the machine
109-020

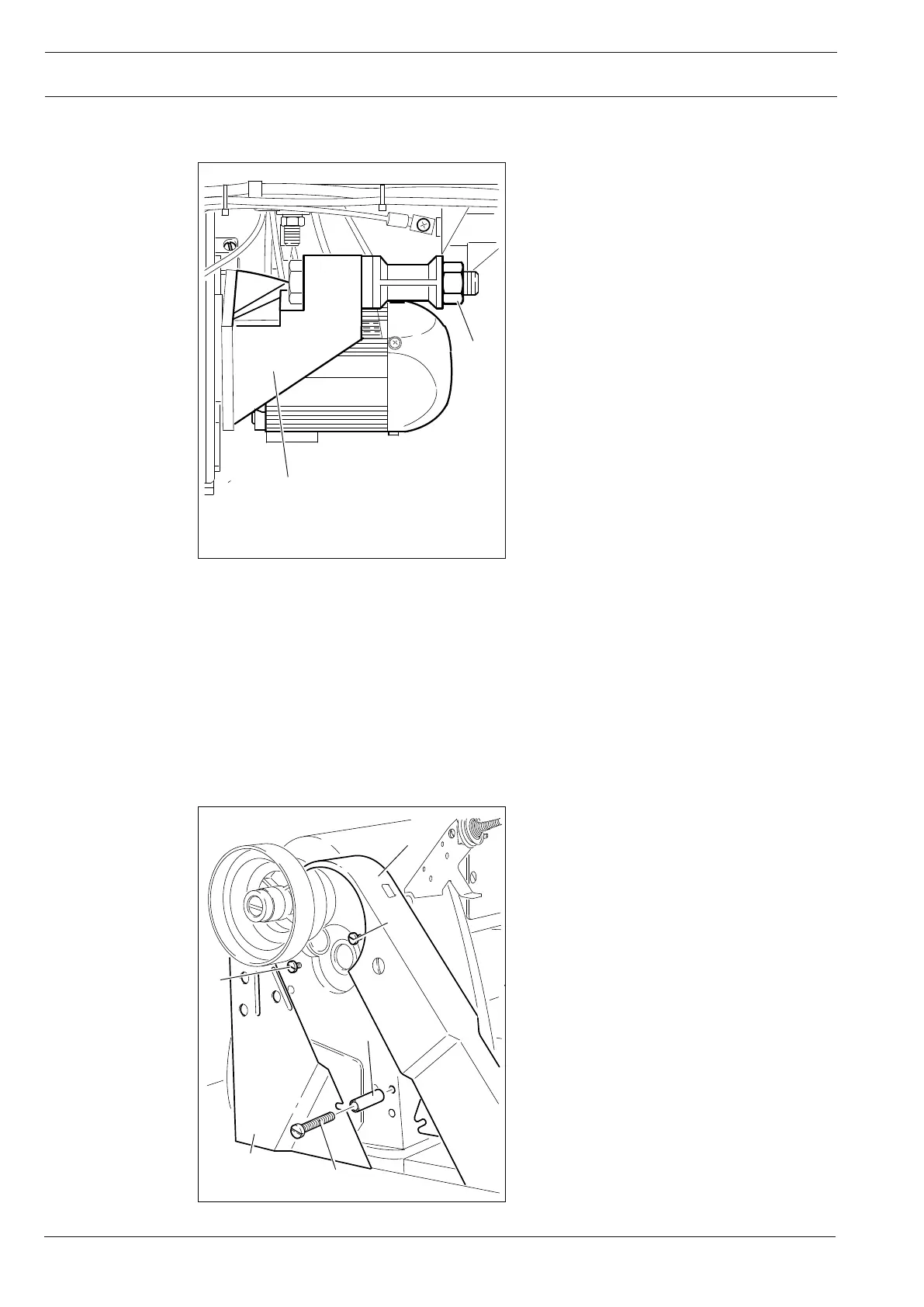

8.01.02 Tightening the V-belt
● Fit the V-belt.
● Loosen nut 1 and tighten the V-belt by
turning motor mounting 2.
● Tighten nut 1.
Fig. 8 - 02
2
1
8.01.03 Fitting the upper belt guard
● Insert screws 1 and 2.
● Insert screw 3 with spacing sleeve 4.
● Slide belt guard section 5 so that the
slots are behind the heads of screws 1
and 3.
● Slightly tighten screw 1.
● Making sure that the lug of belt guard
section 6 is located between belt guard
section 5 and the spacing sleeve 4, align
the complete belt guard and tighten
screws 1, 2 and 3.
Fig. 8 - 03
5
1
2
3
6
4
