8 - 3
Mounting and commissioning the machine

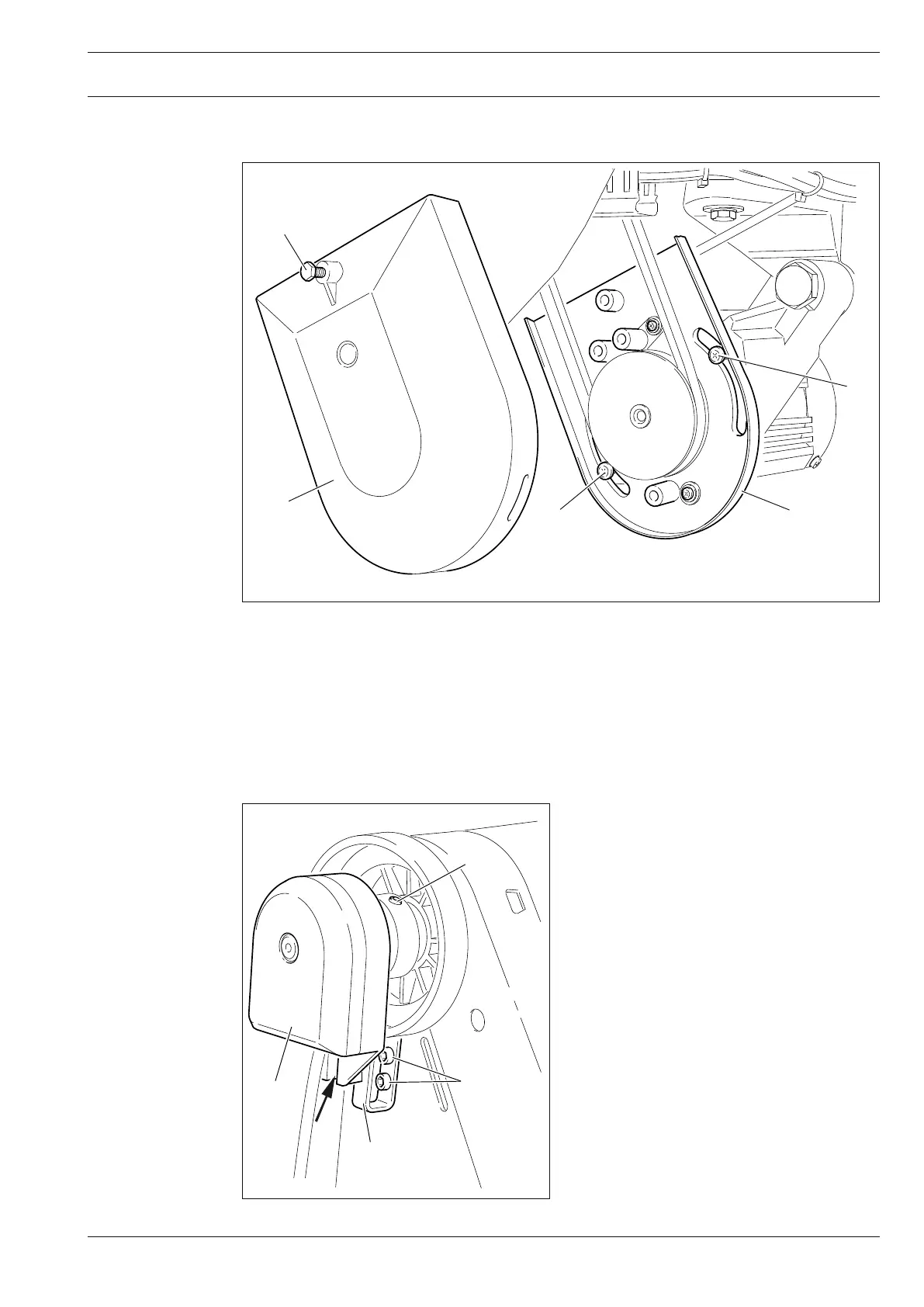

8.01.04 Mounting the bottom V-belt guard
1
Fig. 8 - 04
2
● Loosen screws 2 and adjust belt guard support 1 so that the motor pulley and V-belt run
freely.
● Tighten screws 2.
● Fasten belt guard 3 with screw 4.
2
4
3
Fig. 8 - 05
8.01.05 Fitting the synchronizer
● Screw on stop 1 with screws 2.
● Place synchronizer 3 on the shaft so that
stop 1 is in the slot of synchronizer 3, see
arrow.
● Tighten screws 4 just a little.
● Insert the plug for the synchronizer in the
socket on the control box.
● Adjust synchronizer 3 (see Chapter
13.05.01, Basic position of the machine).
1
2
3
4
