8 - 4
Mounting and commissioning the mac
hine
8
.01.06
Connecting the plug-in connections and earth cables
●
Connect all plugs as labelled in the control box
1
.
●
Screw the earth cable from the sewing head to earth point
A.
●
Connect earth point
C
and earth point
A
with an earth cable.
●
Screw the earth cable from main switch
3
to earth point
A.
●
Screw the earth cable
2
from the motor to earth point
B.
C
1
A
3
2
B
D

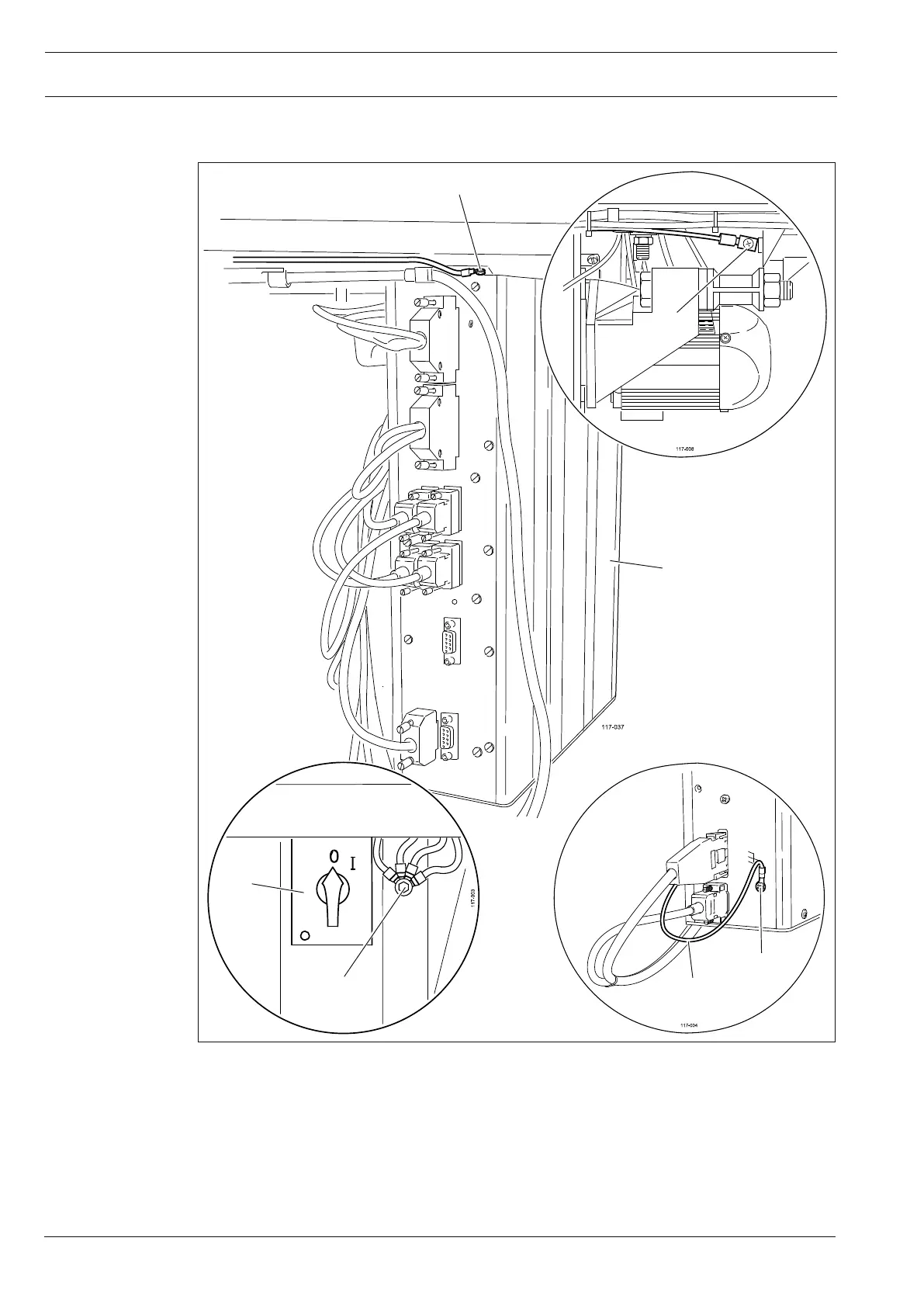

Fig. 8 - 06
23
25
