Adjustment
13 - 3
13
.05
Adjusting the basic machine
13
.05.01
Basic position of the machine
●
Switch on the machine.
●
Call up the input mode.
●
By turning the balance wheel, position the needle point flush to the top edge of the needle
plate.
●
Conclude the input.
●
Switch off the machine.
●

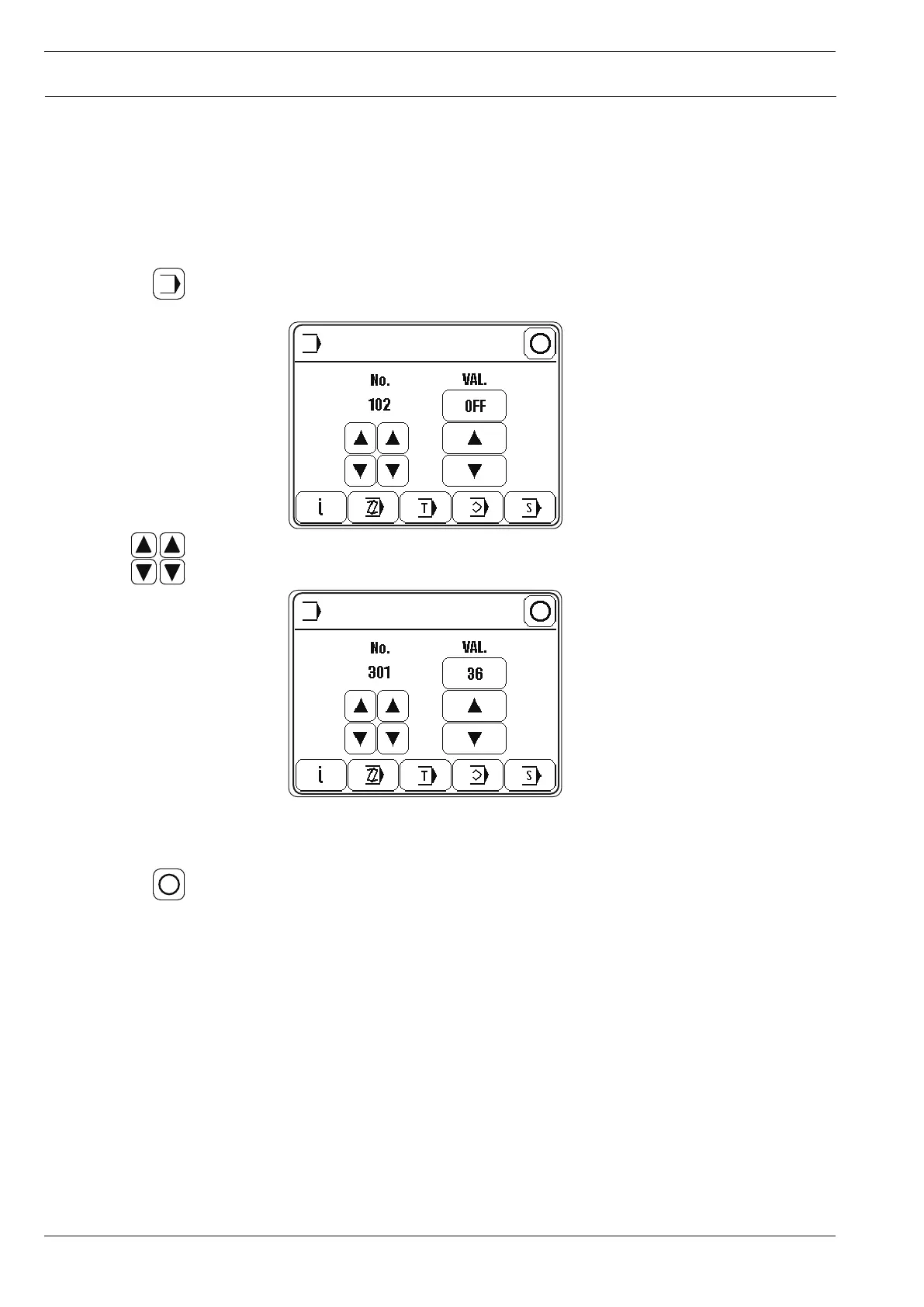

Call up parameter "301".
65
67
