Mounting and commissioning the machine
8 Mounting and commissioning the machine
The machine must only be mounted and commissioned by qualified personnel!
All relevant safety regulations are to be observed!
If the machine is delivered without a table, you must make sure that the frame
and the table top which you intend to use can hold the weight of the machine
and the motor. It must be ensured that the supporting structure is sufficiently
sturdy, including during all sewing operations.
8.01 Mounting
The necessary supply connections for the electrical and pneumatic systems must be
available at the machine’s location, see Chapter 3 Specifications.
There must be a stable and horizontal surface and adequate lighting at the machine’s
location.
The method of packaging used requires that the table top be lowered for
transport. The following is a description of how to adjust the height of the
table top.
8.01.01 Adjusting the table-top height
● Loosen screws 1 and 2 and set the desired table-top height.
● Tighten screws 1 well.
● Adjust the position of the pedal so that you can operate it comfortably and tighten
screw 2.

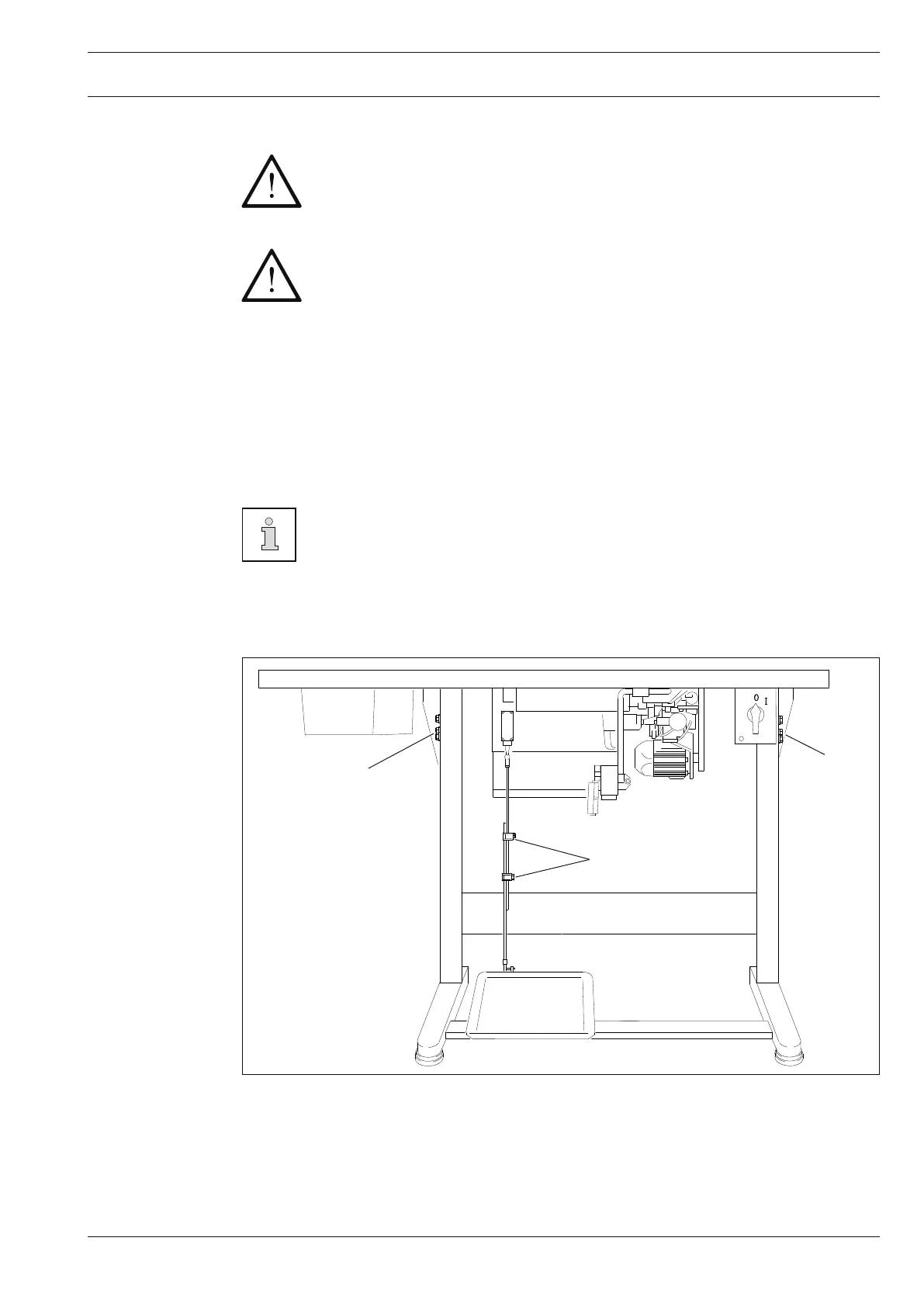

Fig. 8 - 01
1
1
2
