Adjustment
13 - 13
15
16
14
10
8
1
16
7
9

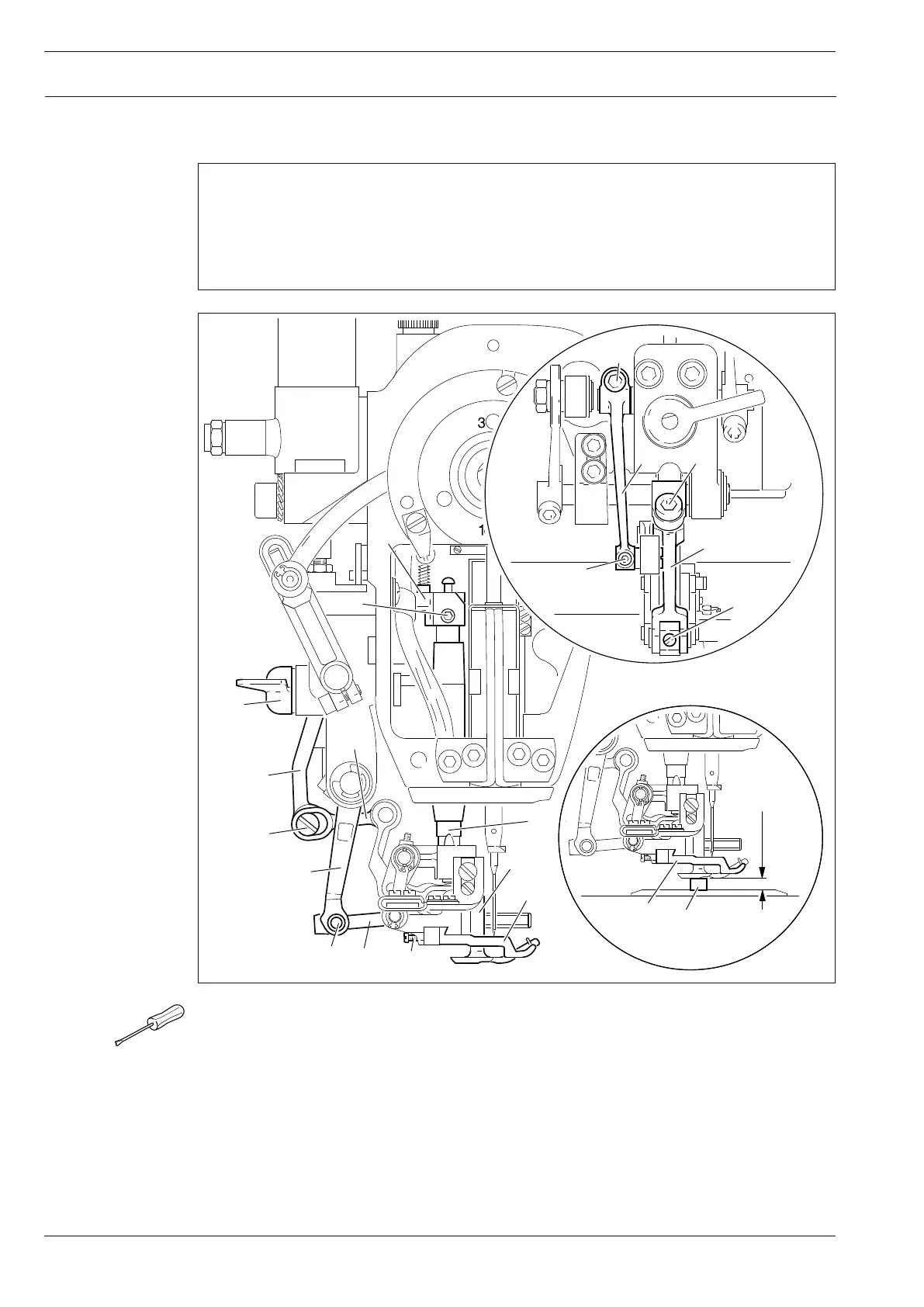

Fig. 13 - 11
17
18
13
2
5 mm
2
4
3
5
6
12
11
10
13
.05.11 Positioning the lifting presser
Requirement
1. With presser bar lifter 1 raised there must be a clearance of 5 mm between lifting pres-
ser 13 and the needle plate.
2. The needle must enter the centre of the needle hole in lifting presser 13.
3. The edge of the lifting presser must be parallel with the bottom feed dog.
● Raise presser bar lifter 1.
● Turn the balance wheel to set feeding presser 2 at its highest point.
● Raise presser bar 3 and push the 5 mm thick part of adjustment gauge 4
(part No. 61-111642-19) under the lifting presser from behind.
● Move lifting piece 5 (screw 6) down as far as it will go.
● Take out pin 7 (screw 8).
● Swing lever 9 out of the fork of lever 10.
● Take out eccentric pin 11 (screw 12).
● Position lifting presser 13 according to the Requirements.
