Adjustment
13 - 37

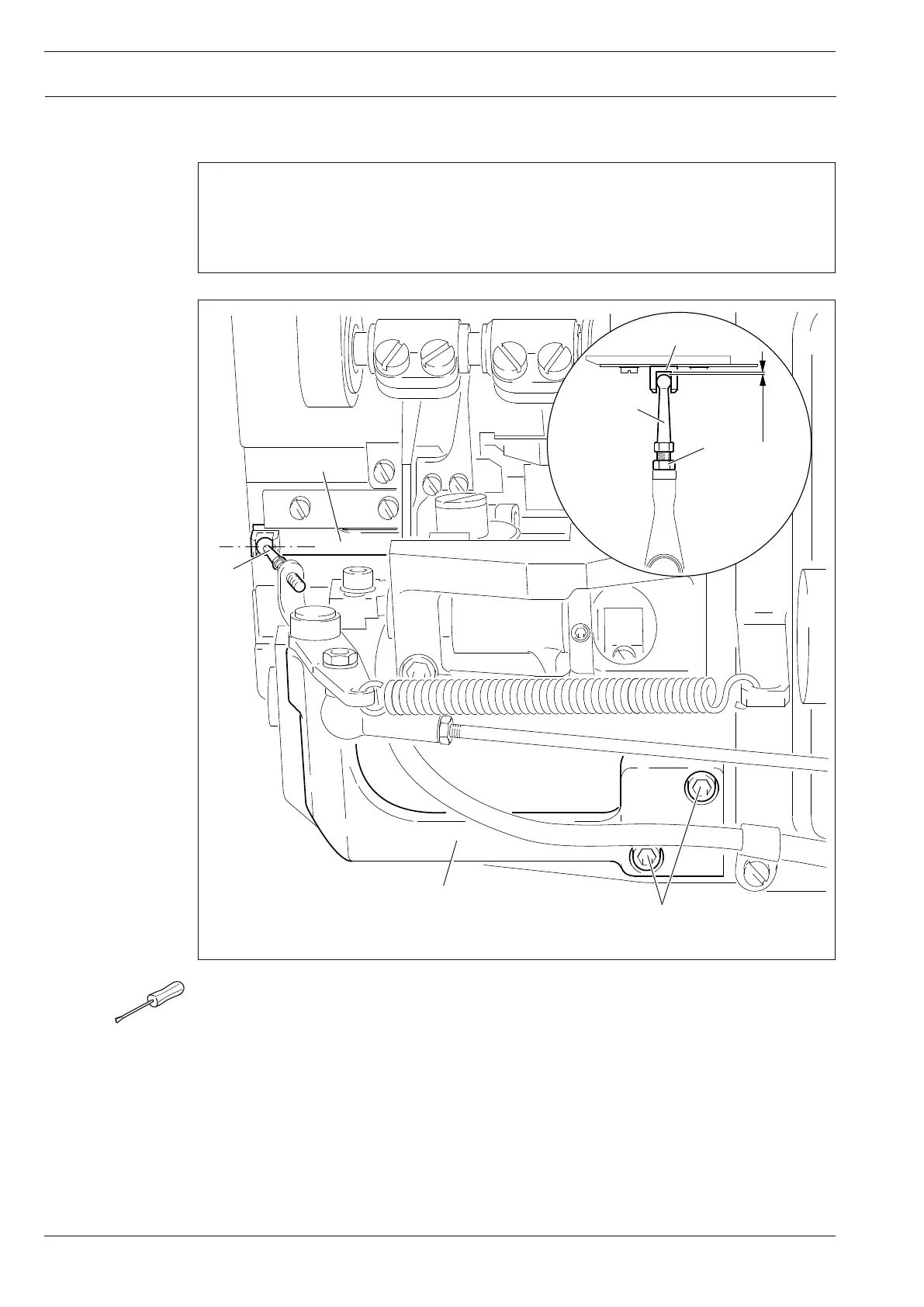

Fig. 13 - 34
5
1
5
4
1
0,5 mm
2
3
13
.06.02
Ball pin position
Requirement
When it is positioned vertically, the ball pin
1
must
1.
be centered with respect to the drive dog
5
, and
2.
have a distance of
0.5 mm
to the bottom of the drive dog
5
.
●
Position the ball pin
1
vertically.
●
Move carrier
2
(screws
3
) according to
requirement 1
.
●
Turn ball pin
1
(nut
4
) according to
requirement 2
.
99
101
