Installation and commissioning
22
8 Installation and commissioning
After the machine has been unpacked, check it for any damages caused during transportati-
on. If there are any damages, please notify the transport company and your
local PFAFF agency.
The machine must only be installed and commissioned by qualifi ed personnel.
All relevant safety regulations must be strictly adhered to!
8.01 Installation
Suitable connections for electricity and compressed air must be available at the machine’s
location (see Chapter 3 Specifi cations).

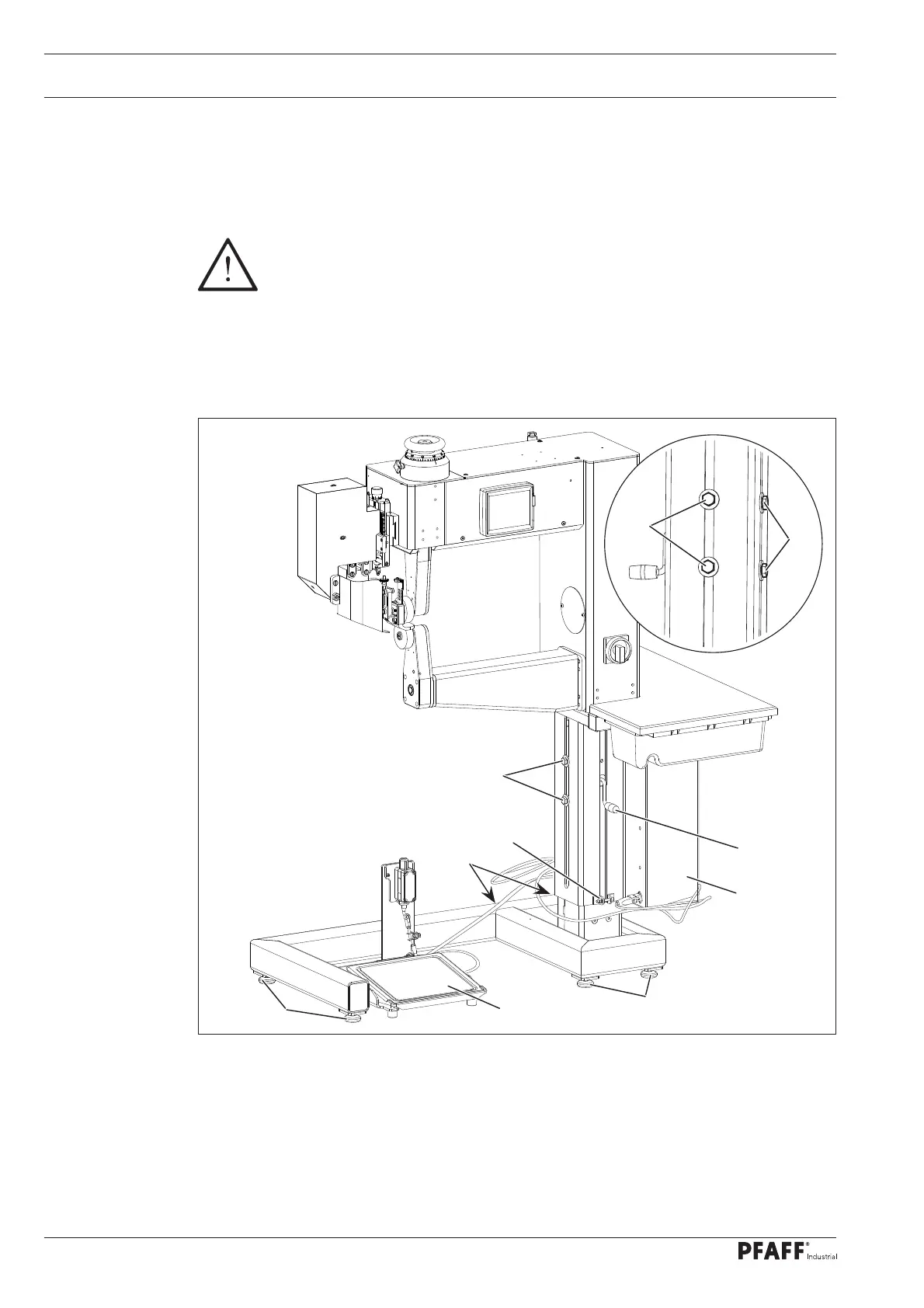

Fig. 8 - 01
1
2
5
1
4
● Slide the machine from the transport pallet.
● Level the machine horizontally by turning the feet 1.
● Connect the plugs from pedal 2 and any existing foot switches to the control box.
● Loosen screws 4 and 5 and adjust the height of the machine by turning crank 6.
● Well tighten screws 4 and 5 again.
1
6
4
4
3
