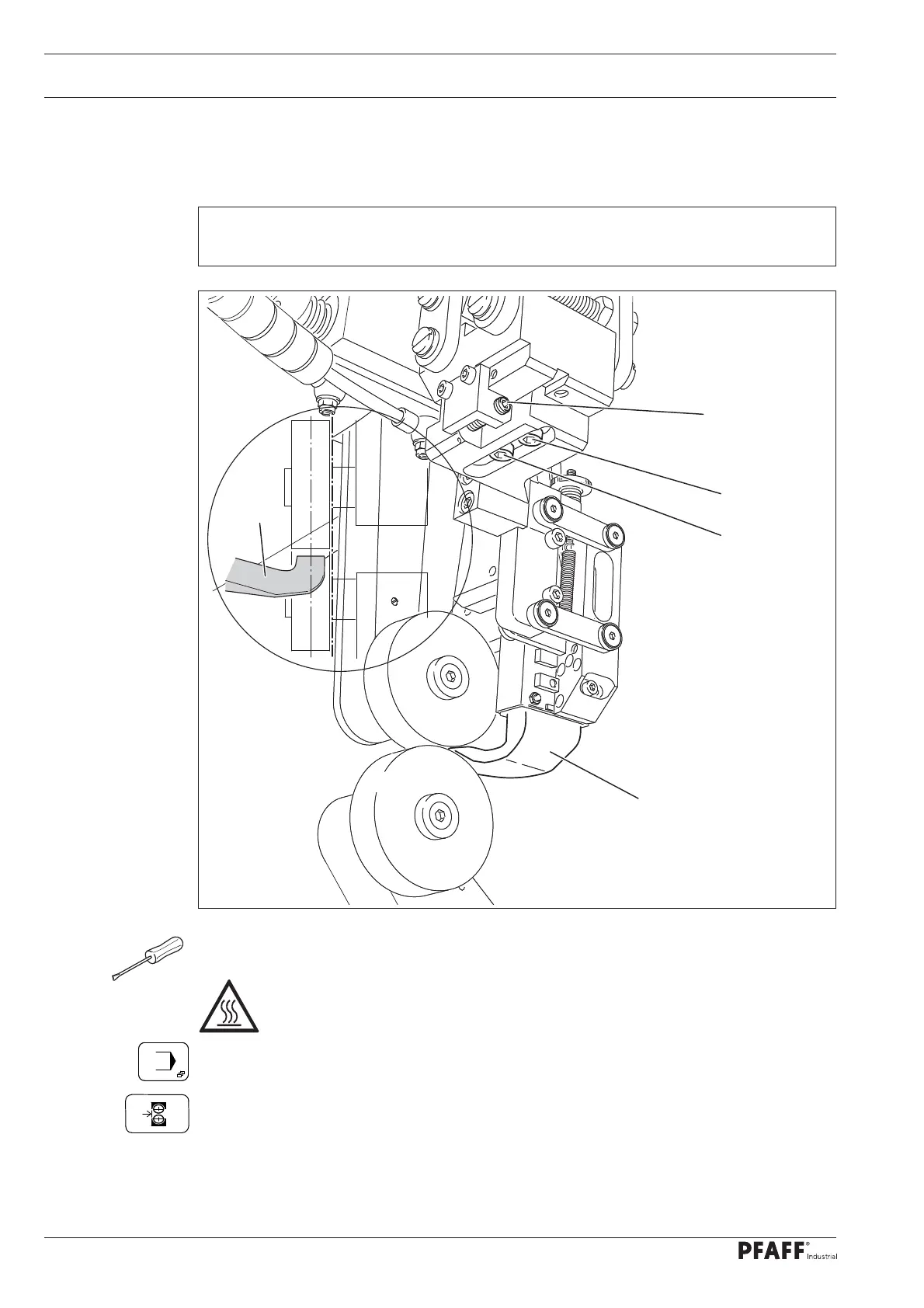

Fig. 13 - 05
1
2
3
2
3
13.07 Adjusting the hot wedge on the PFAFF 8320-010
13
.07.01 Positioning the hot wedge crosswise to the feed direction
● Switch on the machine and set the sealing temperature at its minimum value.
Let the heating element cool down!
Danger of burns if the heating element is touched!
● Call up the input menu.
● Position the heating element.
● Adjust screw 1 (screws 2) in accordance with the requirement.
● Switch off the machine.
Requirement
In the feed direction the hot wedge 3 should be centred to the feed rollers.
