Adjustment
89

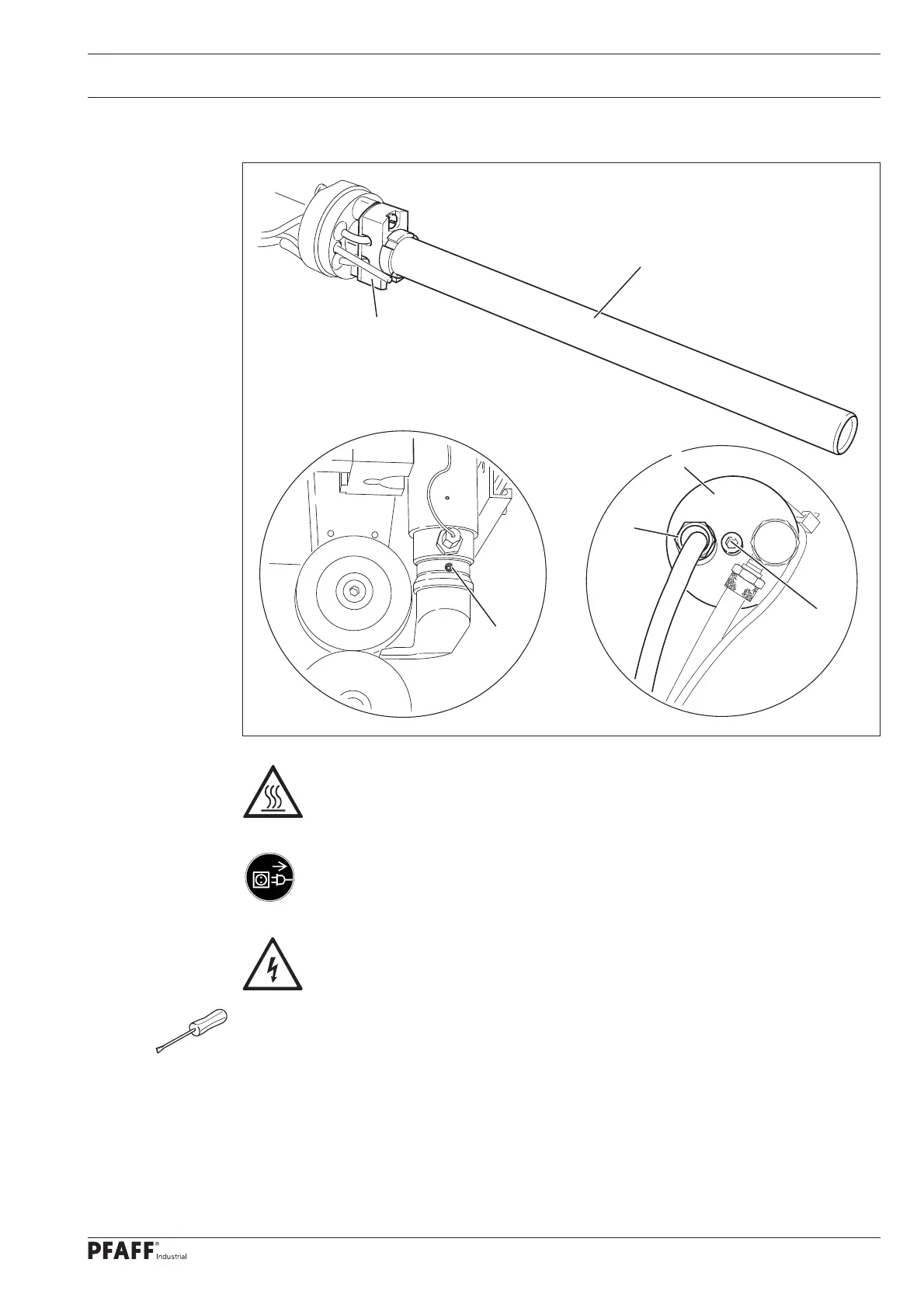

Fig. 13 - -10
6
7
4, 5
1
2
3
13.09 Changing the heating cartridge (only on the PFAFF 8320-020)
Wait until the heating element has cooled down! Danger of burns!
Disconnect the mains plug!
Danger from electric voltage!
● Loosen the cable screw 1.
● Remove cap 2 (screw 3).
● Remove screw 4 and loosen screw 5 (underneath).
● Pull out socket 6 together with the heating cartridge 7.
● Remove heating cartridge 7 from socket 6.
● Installation takes place in the reverse order, taking care that screw 5 must only be tighte-
ned slightly (max. 1 Nm).
