Adjustment
83

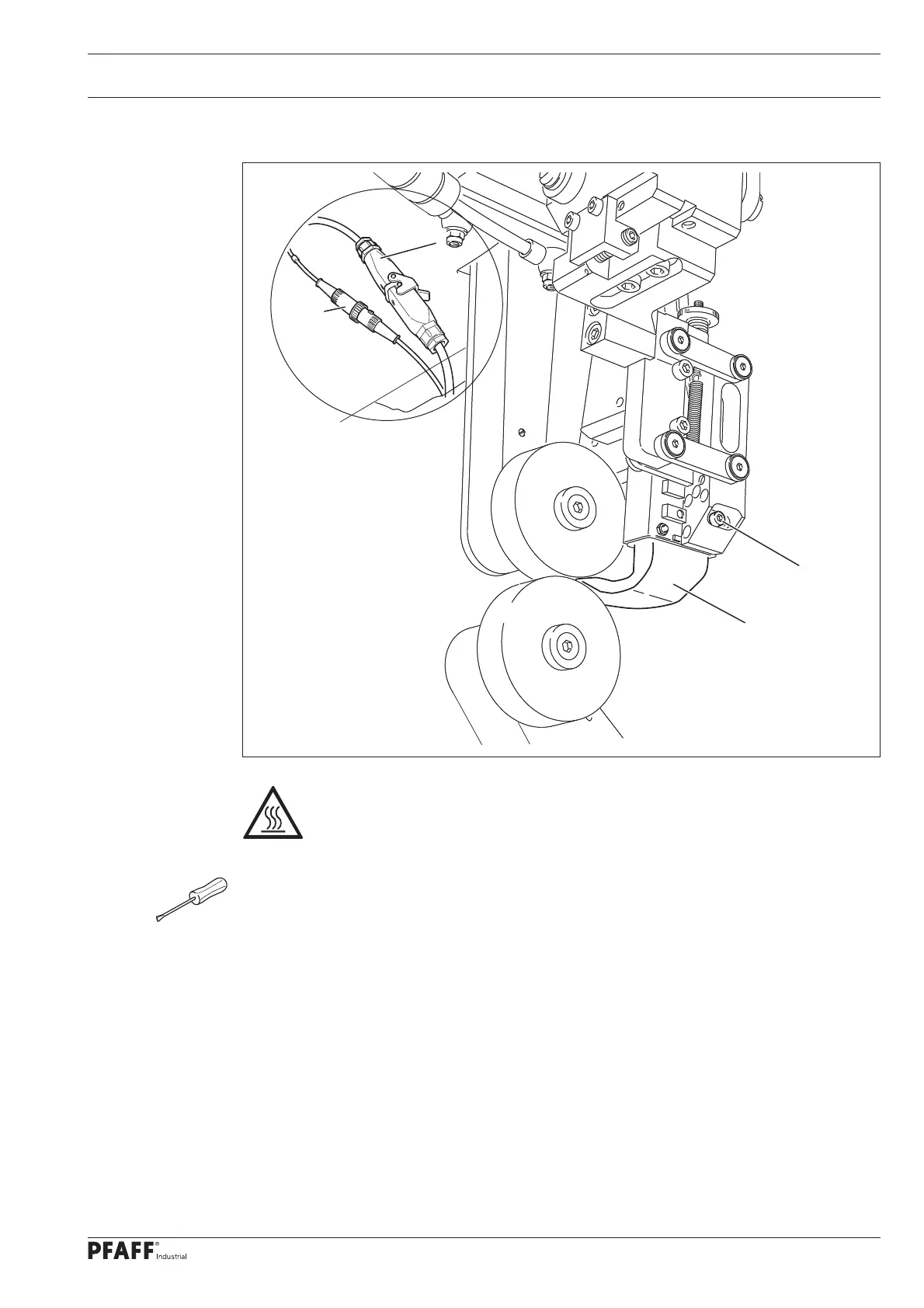

Fig. 13 - 04
Let the heating element cool down!
Danger of burns if the heating element is touched!
● Disconnect plug connections 1 and 2.
● Change hot wedge 3 (screws 4).
● Reconnect plug connections 1 and 2.
● Adjust the hot wedge, see Chapter 13.07 Adjusting the hot wedge on the
PFAFF 8320-010.
● Grind the hot wedge, see Chapter 12.05 Grinding the hot wedge.
3
4
2
1
13.06 Changing the hot wedge (only on the PFAFF 8320-010))
