Pfaff 8320-020 User Manual

Adjustment
87
13.08 Adjusting the hot air nozzle on the PFAFF 8320-020
13
.08.01 Lateral adjustment and setting the angle of the hot air nozzle
● Switch on the machine and set the sealing temperature at its minimum value.
Let the heating element cool down!
Danger of burns if the heating element is touched!
● Call up the input menu.
● Position the heating element
● Adjust screw 1 (screws 2) in accordance with requirement 1.
● Adjust hot air nozzle 3 (screw 4) in accordance with requirement 2.
● Switch off the machine.

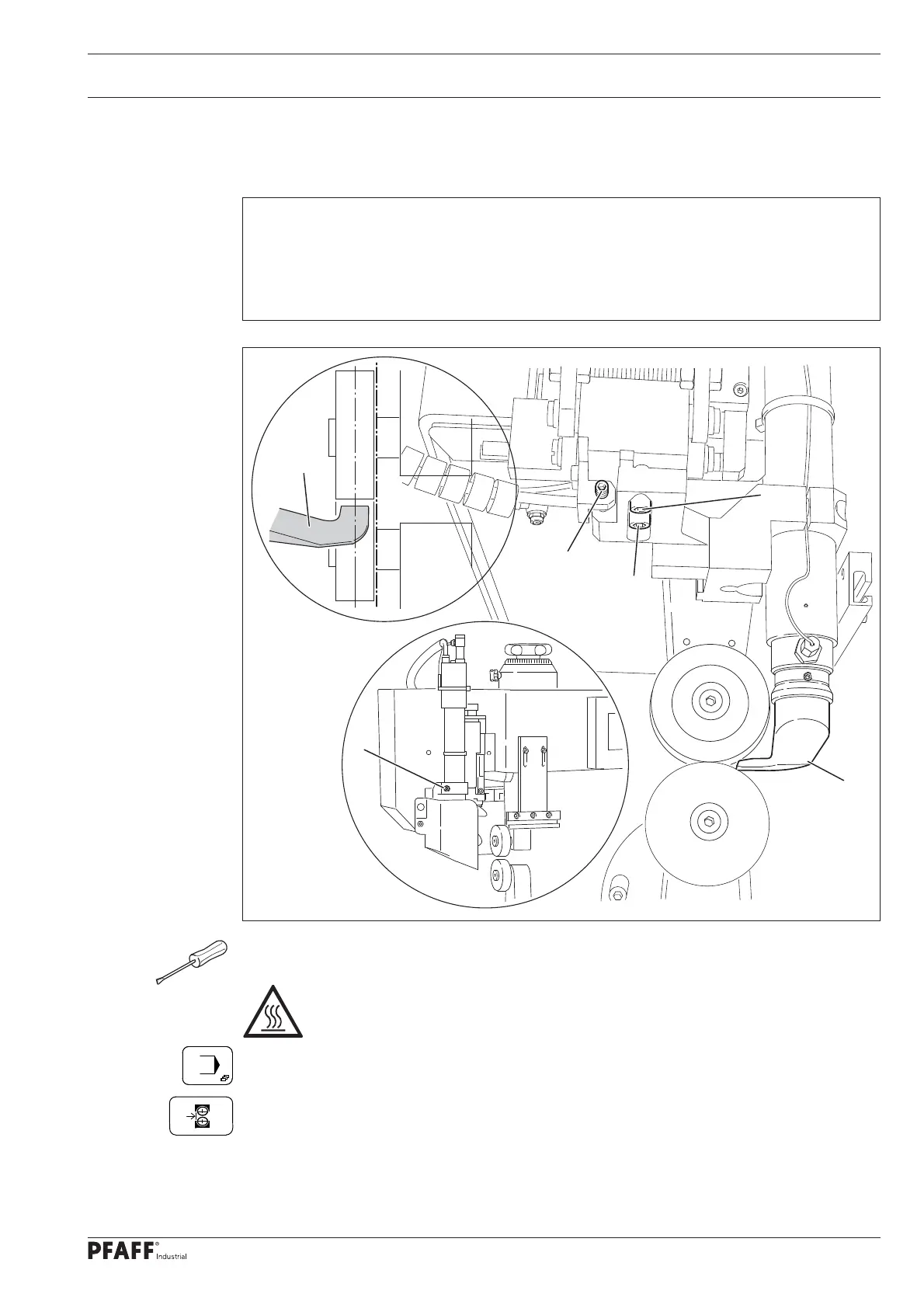

Fig. 13 - 08
2
1
3
4
2
3
Requirement
1. When hot air nozzle 3 is engaged, in the feed direction it should be centred to the
feed rollers.
2. The front edge of the hot air nozzle 3, as seen from the rear, should be positioned
parallel to the axes of the feed rollers.
