Pfaff 8320-020 User Manual

Adjustment
90

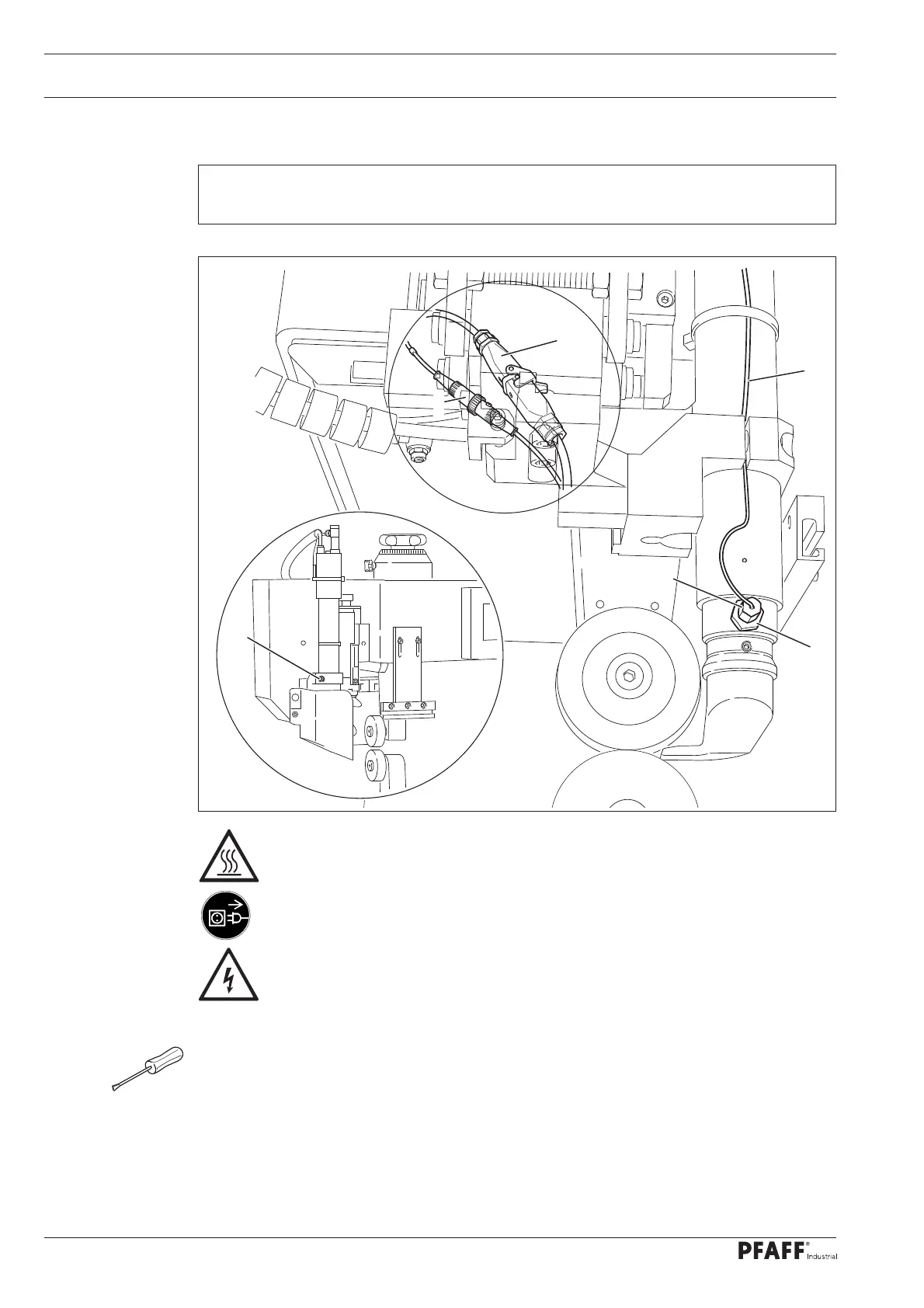

Fig. 13 - 11
5
6
4
3
2
1
13.10 Changing the temperature sensor (only on the PFAFF 8320-020))
Wait until the heating element has cooled down! Danger of burns!
Disconnect the mains plug!
Danger from electric voltage!
● Disconnect plug connections 1 and 2 and loosen screw 3.
● Remove nut 4 together with the temperature sensor 5.
● Attach the new temperature sensor 5 together with new nut 4.
● Slide temperature sensor 5 as far into the hot air tube as possible and fi x it in this positi-
on by tightening nut 6.
● The rest of the installation takes place in the reverse order.
● Carry out adjustments as described in Chapter 13.07.02 Adjusting the height and feed
roller clearance of the hot air nozzle.
Requirement
The temperature sensor 5 should be inserted as far as possible into the hot air tube.
