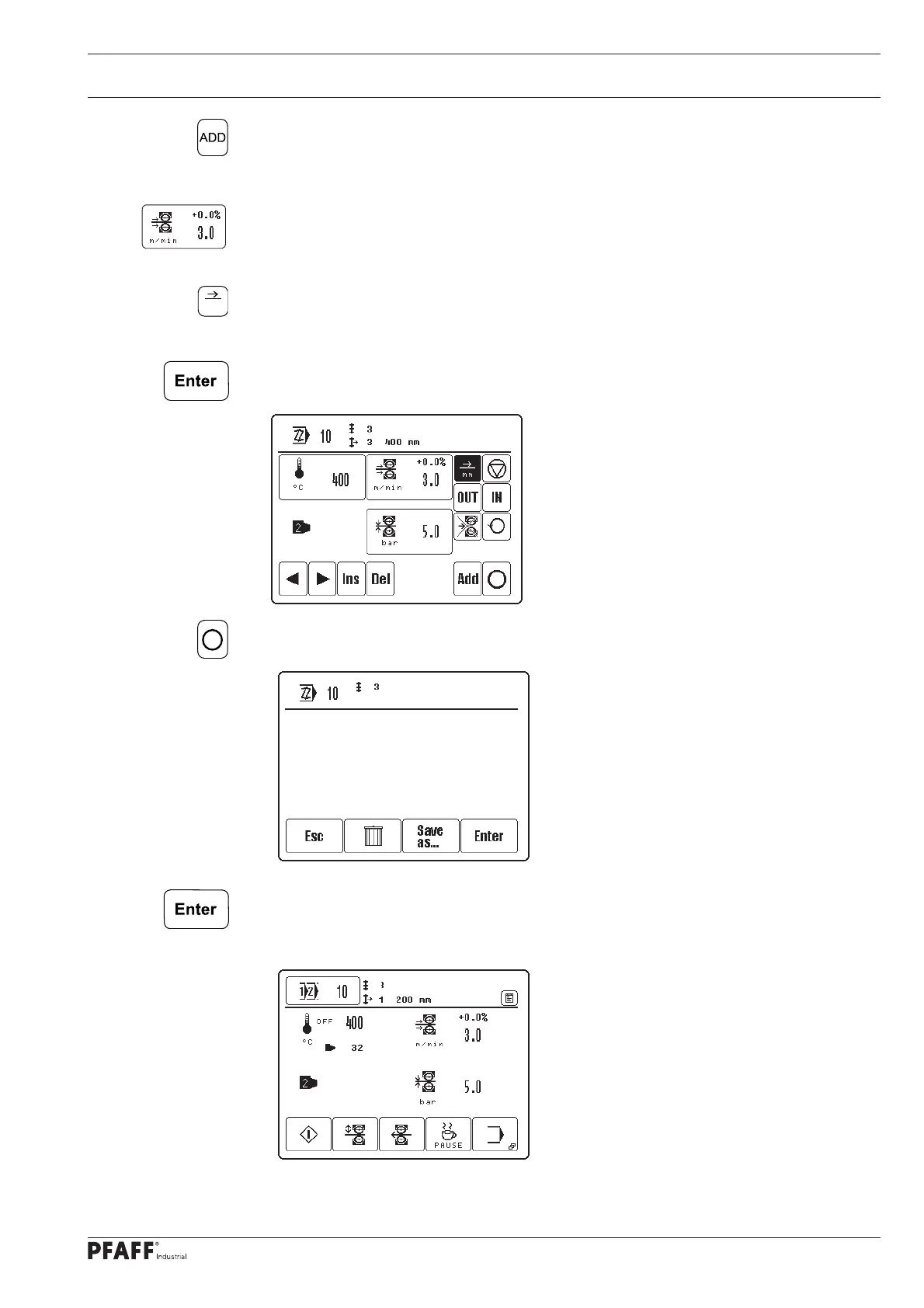

Heat sealing
●
Add seam z
one
3
.
●
Reset the v
alues for sealing speed and speed dif
ference.
●
Activ
ate the switc
h to another z
one with the value "
400
" as seam length.
●
Conclude the input of seam zone
3
.
mm
●
Conclude programming.
●
Reconfi
rm the sealing program input.
The programmed sealing function is called up to process the created sealing program.
The entered program is automatically activ
ated.
Example
1
Example
1
4
Example
1
50
52
Table of Contents
Table of Contents
3
Contents
4
Safety
6
Directives
6
General Notes on Safety
6
Safety Symbols
7
Important Notes for the User
7
Operating and Technical Staff
8
Operating Staff
8
Technical Staff
8
Danger
9
Proper Use
10
Specifi Cations
11
Machine Variants
12
Disposal of Machine
14
Transportation, Packing and Storage
15
Transportation to Customer's Premises
15
Transportation Inside the Customer's Premises
15
Disposal of Packing Materials
15
Storage
15
Explanation of Symbols
16
Controls
17
Summary of Controls
17
Main Switch
18
Pedal
18
Foot Switch (Optional)
19
Triple Foot Switch (Optional)
19
Adjustment Wheel for the Roller Clearance
20
Control Panel
21
Installation and Commissioning
22
Installation
22
Commissioning
23
Switching the Machine On/Off
24
Selecting the Language and Units
25
Preparation
26
Adjusting the Feed Roller Clearance
26
Selecting the Production Type
27
Entering the Sealing Parameters (Manual Heat Sealing)
29
Entering the Sealing Temperature
31
Entering the Sealing Speed
32
Stipulating the Hot Wedge Type (Only on the PFAFF 8320-010)
34
Adjusting the Contact Pressure of the Hot Wedge (Only on the PFAFF 8320-010)
34
Stipulating the Nozzle Type and Hot Air Volume (Only on the PFAFF 8320-020)
35
Entering the Roller Pressure
36
Adjusting the Control Panel
37
Heat Sealing
38
Heat Sealing Principle
38
Manual Heat Sealing
39
Creating/Editing a Heat Sealing Program
41
Notepad
42
Basic Functions for the Program Input
43
Sealing Parameters
44
Functions for Switching to Other Zones
45
Entering Further Sealing Parameters
46
Concluding Programming
47
Example of How to Enter a Sealing Program
48
Programmed Heat Sealing with Individual Programs
52
Creating/Processing Sequences
53
Programmed Heat Sealing with Sequences
54
Error Messages
56
Input
57
Summary of the Functions in the Input Mode
57
Program Management
59
Further Settings
61
Feed Roller Parameters
63
Rights of Access
64
Installation and Commissioning
66
8320-010 (Hot Wedge Sealing Machine)
66
8320-020 (Hot Air Sealing Machine)
68
Advanced Programming
70
Manual Datasets (Recipes)
70
Stop with Light Barrier
73
Start with Light Barrier
73
Connecting the External Puller 95-256 400-90 with DC Motor
74
Care and Maintenance
76
Servicing and Maintenance Intervals
76
Cleaning
76
Checking/Adjusting the Air Pressure
77
Cleaning the Air Fi Lter of the Air-Fi Lter/Lubricator
77
Grinding the Hot Wedge (Only on the PFAFF 8390-010)
78
Adjustment
79
Notes on Adjustment
79
Tools, Gauges and Other Accessories
79
Changing the Feed Rollers
80
Adjusting the Feed Rollers
81
Swinging the Post into Position
82
Changing the Hot Wedge (Only on the PFAFF 8320-010))
83
Adjusting the Hot Wedge on the PFAFF 8320-010
84
Positioning the Hot Wedge Crosswise to the Feed Direction
84
Adjusting the Height and Counter-Balancing the Weight of the Hot Wedge
85
Hot Wedge to Feed Roller Clearance and Contact Pressure
86
Adjusting the Hot Air Nozzle on the PFAFF 8320-020
87
Lateral Adjustment and Setting the Angle of the Hot Air Nozzle
87
Adjusting the Height and Feed Roller Clearance of the Hot Air Nozzle
88
Changing the Heating Cartridge (Only on the PFAFF 8320-020)
89
Changing the Temperature Sensor (Only on the PFAFF 8320-020))
90
Protective Switch and Boot Key
91
Service Menu
92
Machine Confi Guration
93
Loading/Updating the Operating Program with SD-Card
95
Description of the Error Numbers
97
General Errors
97
Temperature Control Error
98
DC-Motors Error (Feed Rollers)
99
List of Outputs and Inputs
100
Digital Outputs
100
Digital Inputs
100
Analog Outputs
101
Analog Inputs
101
Parameter Settings
102
Selection and Changing Parameters
102
List of Parameters
103
Circuit Diagrams
104
Pneumatic-Circuit Diagrams
109
