Input

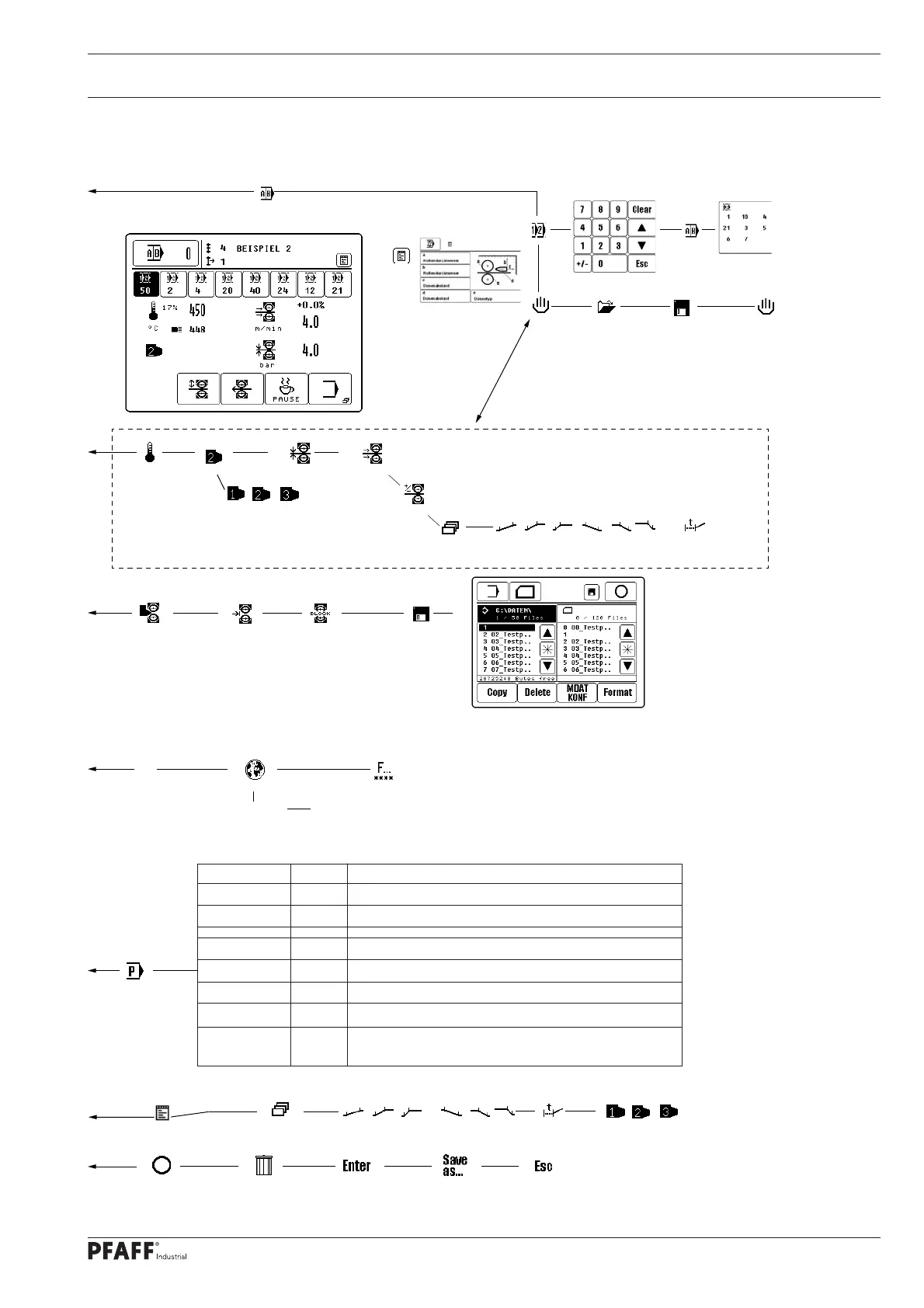

Progr.sealing with Sequences
Y4
Program selection
Sequences
Notes
load manual
130 .. 149
store manual
130 .. 149
select manual
sealing
(
If enebled with parameter Enable Manprog = 1
)
Temperature Rollerpressure Rollerspeed
Staring
delay
Feed difference
Further parameter
Reposition
of the wedge
Block rollers Program managment
Parameters of manual sealing exist separately
.
Parameters of programmed sealing and programmed sealing with sequences
are entered in „Creating/altering a program“.
Local settings
Rights of access
D, GB, F, E, I mm, inch...
°C, °F
UnitsLanguage
Further parameters
Conclude
Discard Save Program Program
save as...
Notes
Deceteration
low middle high
Acceleration values
low middle high
Further parameters
Deceteration
low middle high
Acceleration values
low middle high
Staring
delay
backward
Wedge type
small middle large
Grind hot wedge
Parameter Values [init] Function
Sequence continue 0,[1] 1: Sequence programs are forwarded
0: Sequence programs as quick key selection
Enable Manprog [0],1 1: manual datasets can be stored and loaded back as program 130..149
0: the function is disabled
VQLIM +/-2400 Do not change value 500
Powertest [0],1 1: display of power input at hot wedge
0: function deactivated
Stop with IN1 [0],1 1: digital Stop signal at input IN1
0: IN1 as zone forwarding condition in programs
Start with In2 [0],1 1: digital Start signal at input IN2
0: IN2 as zone forwarding condition in programs
Enable Puller [0],1 1: Additional puller activating
0: No additional puller installed
LinkRollerPuller [0],1 1: Puller follows the movement of upper roller
0: Puller is lifted or lowered with the puller button
(Only visible with active puller)
Wedge type
Wedge type
small middle large
Y4 activated:
wedge travels
forward/back
Y4 deactivated:
wedge remains in
forward position
