Installation
17
5.3.1 Storing the lifting handles
One the detector has been installed, the handles can be removed and stored in the back
of the detector or used to place the control panel on a work surface.
Tools required ● 5-mm Allen key.

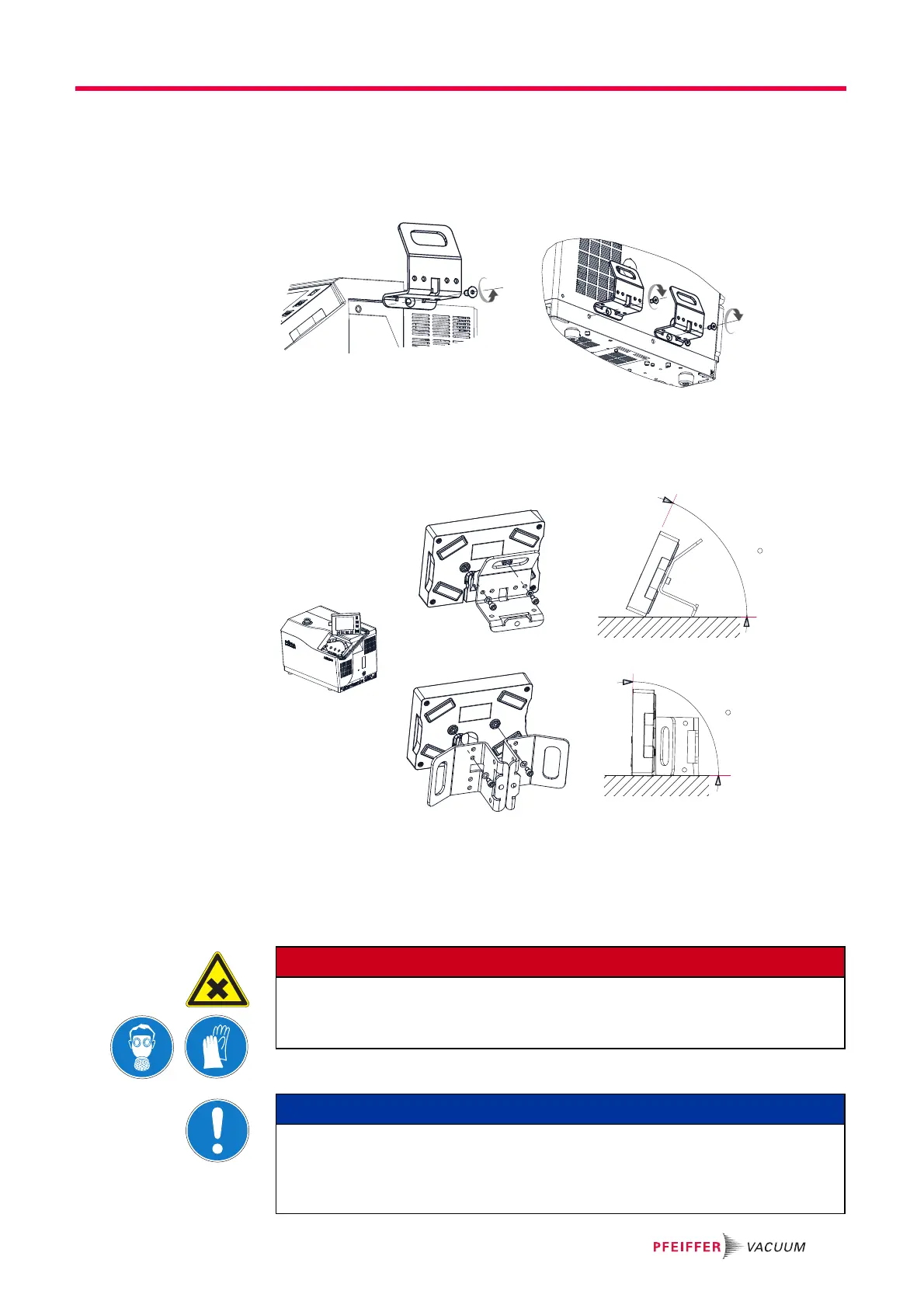

Fig. 3: Storing the lifting handles
5.3.2 Control panel equipment
The control panel can be placed on a work surface using the lifting handles for support.
Fig. 4: Control panel on work surface
 Attach the handles with 2 CHc M6 x 10 screws and 2 ø 6 mm bolts (at customer's ex-
pense).
5.4 Filling with oil (Wet model only)
66
89
DANGER
Health risk in case of oil contact
The pumps are delivered empty of oil: the oil is delivered in separate containers.
 Wear mask, gloves, protective glasses to fill the pumps with oil.
NOTICE
Only use approved operating fluids
The pumps are factory tested using adixen oil.
 The same oil must be used during operation. The oil safety data sheet is available on
the website.
