Pfeiffer ASM 340 - Standard Screen

Operation
23

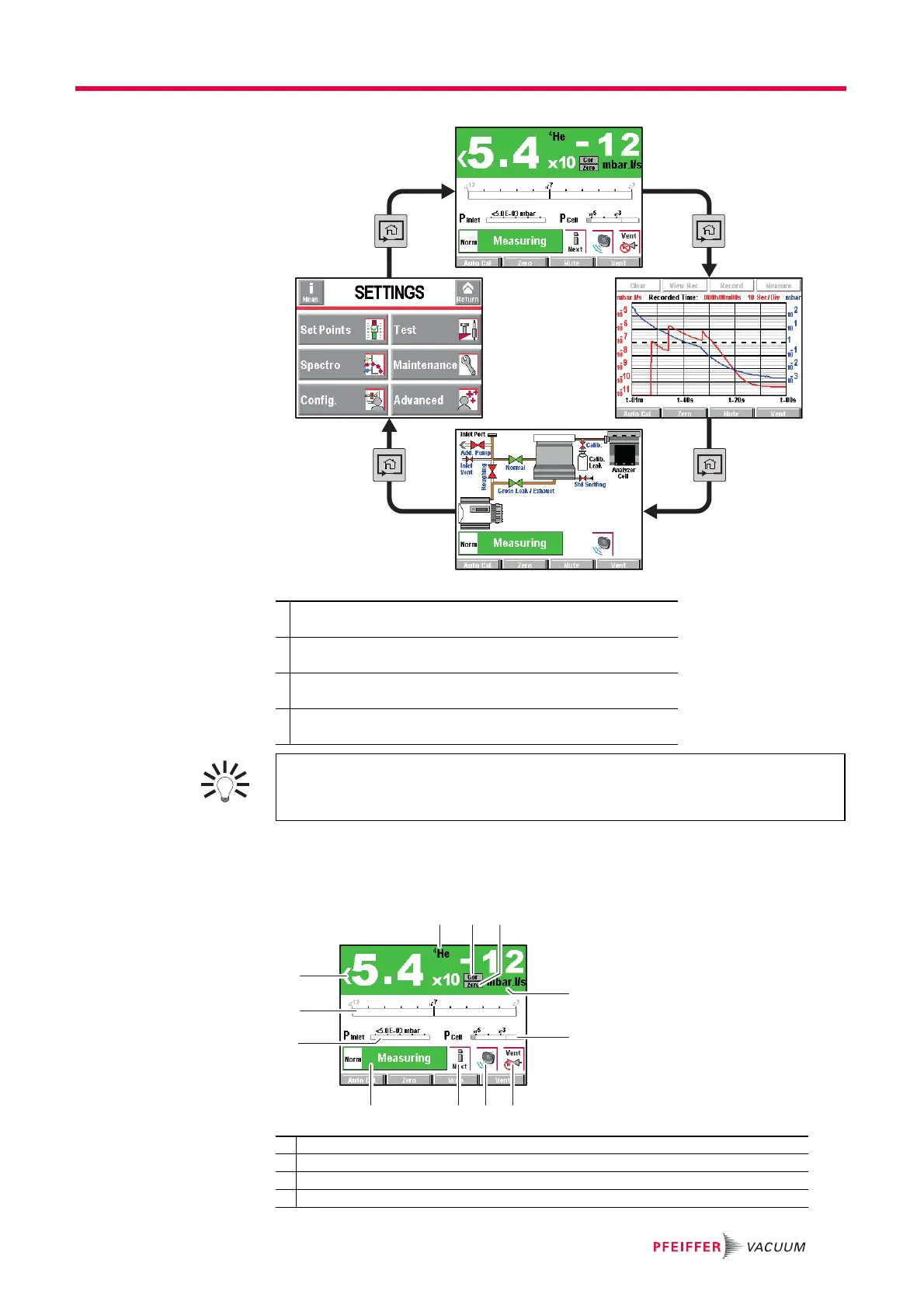

Fig. 6: Example of each screen
6.1.4 "Standard" screen
Information about the test: display most often shown during a test.
1 "Standard" screen (home)
Information about the current test
2 "Graph" screen
Monitoring and recording the leak rate and/or the inlet pressure
3 "Vacuum circuit" screen
Vacuum circuit of the detector and the status of the valves
4 "Settings" screen
Detector parameters
1
24
3
The operator can hide and/or switch certain screens in the loop (see 7.7.3).
For daily use, after the detector's parameters have been set consult primarily the "Stan-
dard" screen.
1 Digital display of the leak rate (green ≤ reject set point < red)
2 Bargraph display of the leak rate (adjustable scale)
3 Detector status and Detection mode
4 Access error information
7
3
8
4 5 6
10
12 9
1
2
11
