Mixing pump G 4 X smart Overview - Operation and service
Connections
18 2021-08-12
11.6 Air compressor

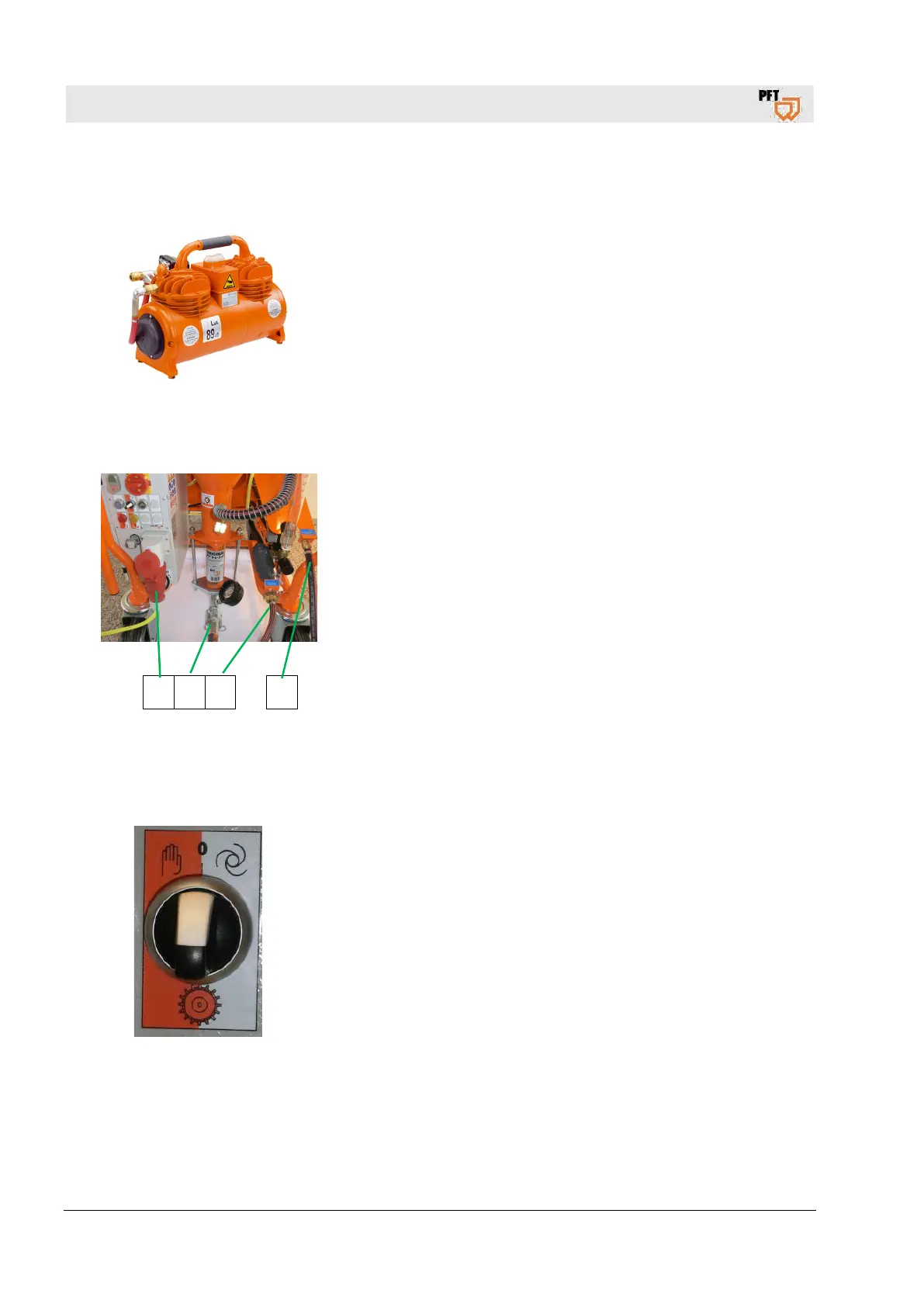

Fig. 11: Air compressor
Air compressor LK250 with pressure switch-off
Air compressor K2 N with pressure switch-off
12 Connections
1 2 3 4
Fig. 12: Connections
1. Main terminal
2. Connections material hoses
3. Connection water supply from mains
4. Connection air to spray gun
13 Operating modes
13.1 Selector switch star wheel
Fig. 13: Operating modes star wheel
The star wheel can be operated in three operating modes:
Selector switch position “0”:
The star wheel is switched off and thus the material supply to the
mixing section is interrupted, e.g. for cleaning the mixing section
using the cleaning shaft or carrying out a pressure test of the
pump.
Selector switch right:
The star wheel is running in sync with the mixing pump motor and
is switched on and off using the air control or remote control.
Selector switch left:
The star wheel is running in continuous mode, independent from
the air control. In this position material can be added to the mixing
section if the pump is deactivated.
