Mixing pump G 4 X smart Overview - Operation and service
Compressed air supply
40 2021-08-12
36 Compressed air supply
36.1 Connect air hose

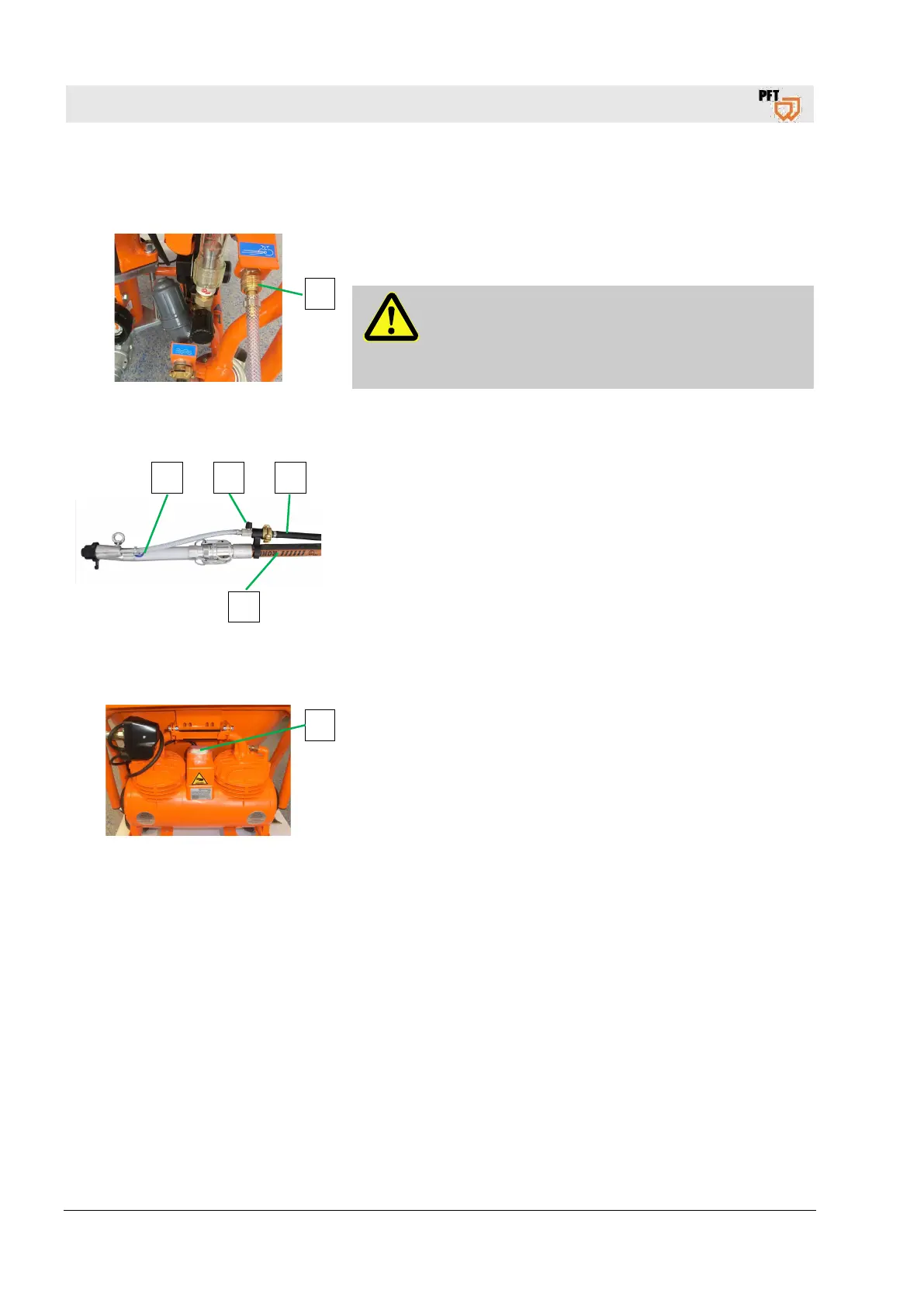

Fig. 57: Connect air hose
1. Connect compressed air hose (1) at the air fitting.
DANGER!
Never loosen the hose couplings as long as the
compressed air hose is not depressurised.
For further information see book art. 00172709
General safety instructions for mixing pumps.
36.2 Connecting the spraying gun
2 3 1
4
Fig. 58: Spraying gun
1. Connect the compressed air hose (1) at the spraying gun (2).
2. Ensure that the air tap (3) is connected to the spraying gun.
3. Connect the spraying gun (2) at the mortar hose (4).
36.3 Switch on air compressor
Fig. 59: Air compressor
1. Switch on the air compressor using the black switch (1).
2. As soon as the air compressor has built up pressure in the
pipeline system, it switches off using the pressure switch-off.
1
1
