Cleaning the machine after work
2021-08-12 55

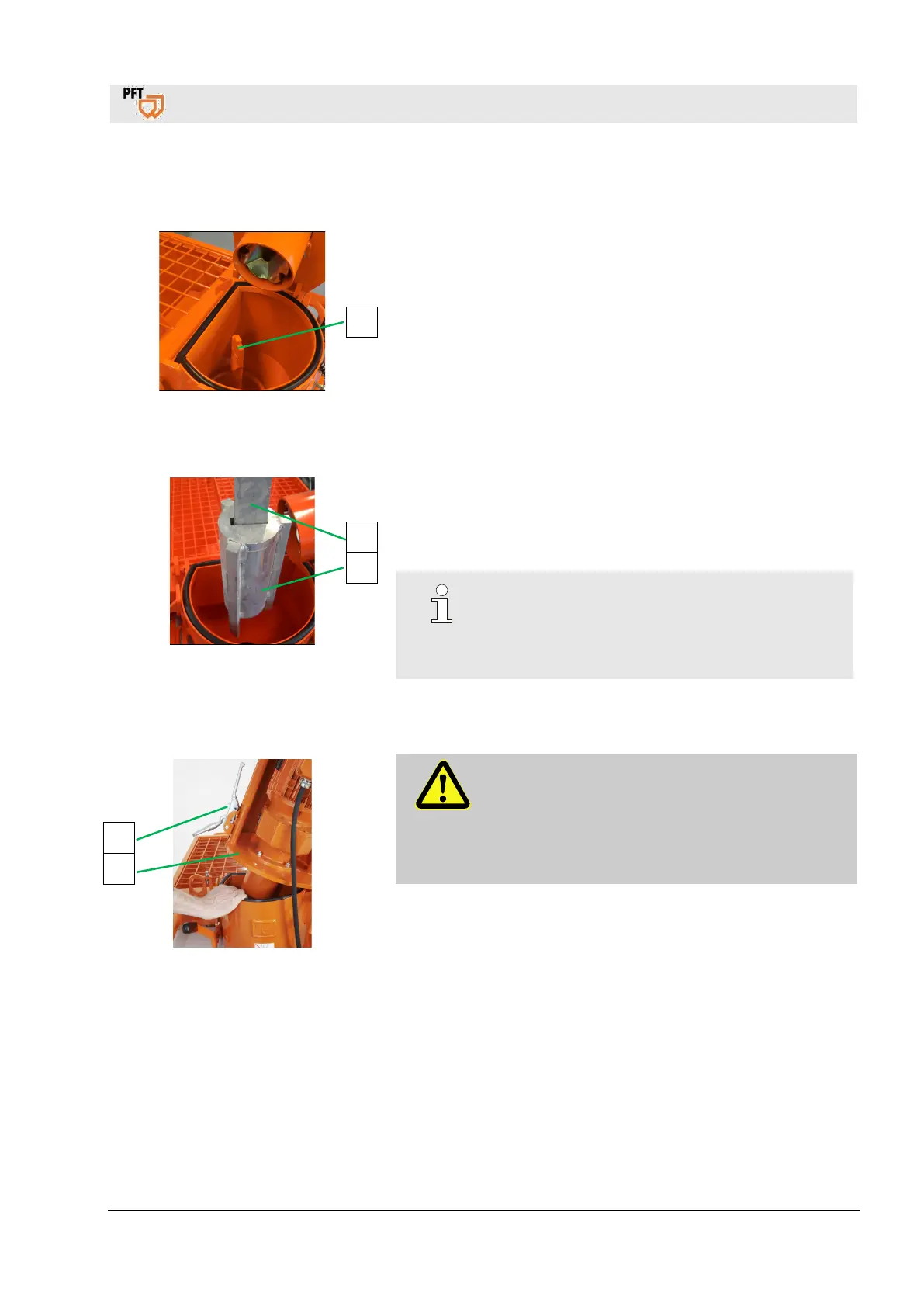

43.7 Cleaning the mixing tube
Fig. 82: Open motor tilt flange
1. Open the quick closure at the motor tilt flange and tilt the motor.
2. Remove the mixing shaft (1) and clean it.
43.8 Insert the mixing tube cleaner
Fig. 83: Insert the mixing tube cleaner
1. Take the mixing tube cleaner (1) and cleaning shaft (2) from the
tool box.
2. Insert the mixing tube cleaner (1) into the mixing tube with the
scrapers pointing downward.
NOTE!
When inserting the cleaner shaft ensure that the
cleaner shaft engages correctly in the drive dog
in the head of the rotor and when closing the
motor flange.
43.9 Insert the mixing tube cleaner
Fig. 84: Close motor tilt flange
1. Close the motor tilt flange (1) and lock using the quick closure
(2).
DANGER!
Risk of contusion at the motor tilt flange!
There is a risk of contusion when closing the motor
tilt flange.

Do not reach into the clamping area of the motor
tilt flange.
1
2
1
2
1
