Mixing pump G 4 X smart Overview - Operation and service
Preparing the machine
32 2021-08-12

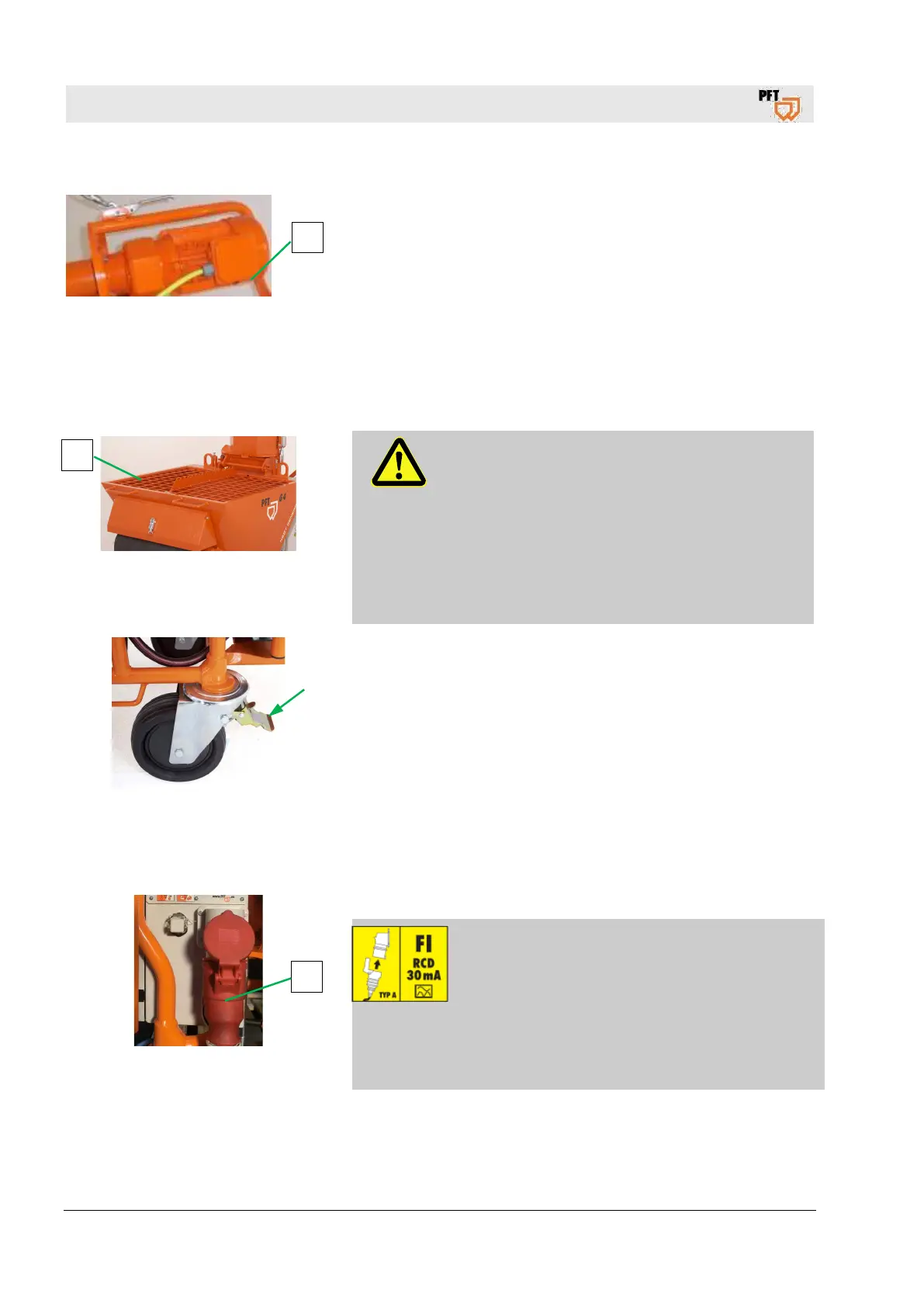

26.2 Safety system
Fig. 31: Lockable castor
Inclination switch (1) in the terminal box of the geared motor.
The inclination switch triggers as soon as the quick closure is
opened and the geared motor is tilted on the side.
If the machine in on rough terrain, the inclined position of the
machine can also trigger the inclination switch.
27 Preparing the machine
Prior to operating the machine carry out the following steps for
preparing the machine:
Fig. 32: Grille cover
DANGER!
Running star wheel!
Risk of injury when reaching into the running star
wheel.
During machine preparation and operation, the
grille cover (1) must not be removed.
Never reach into the running machine.
For further information see book art. 00172709
General safety instructions for mixing pumps.
Fig. 33: Lockable castor
1. Lock the lockable castor prior to operating the machine.
2. Put up the machine on a stable, even surface and secure
against unwanted movements:
Neither tilts nor rolls off the machine.
Put up the machine in such a way that it cannot be hit by
falling objects.
The operating elements have to be freely accessible.
Maintain a clearance of approx. 1.5 metres around the
machine.
28 Connecting the power supply 400 V
Fig. 34: Power supply 400 V
1. Connect machine (1) to three-phase network 400 V.
DANGER!
Danger of death from electric current!
The connection line has to be fused properly:
Connect the machine only to a power source with
permissible RCCB (30 mA) RCD (residual current
operated device) type A.
For further information see book art. 00172709
General safety instructions for mixing pumps.
1
1
1
