Cleaning the machine after work
56 2021-08-12

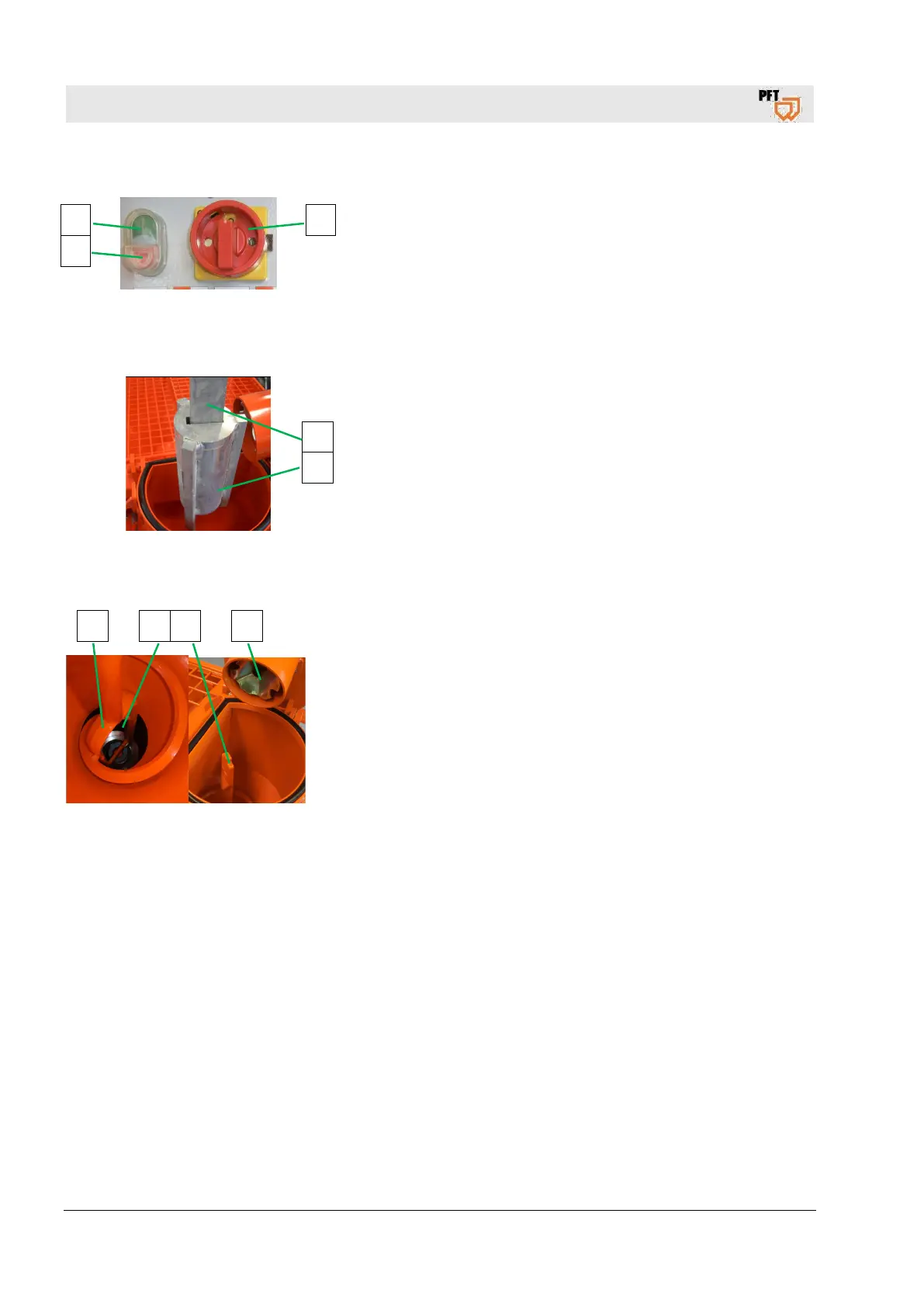

Fig. 85: Switching on
2. Turn main switch (3) to position "I".
3. Press the green push button (4) control voltage “ON” (4).
4. Let the machine run for about 5 - 10 seconds until the mixing
tube has been cleaned.
5. Switch the machine off by pressing the red push button (5)
control voltage “OFF”.
6. Turn main switch (3) to position "0".
Fig. 86: Remove the mixing tube cleaner
7. Open the quick closure at the motor tilt flange and tilt the motor.
8. Take the mixing tube cleaner (6) and cleaning shaft (7) from the
mixing tube.
43.10 Insert agitator
1 2 1 3
Fig. 87: Insert agitator
1. Insert agitator (1) and ensure correct positioning at the rotor
head (2).
2. When closing the tilt flange ensure that the agitator (1) engages
properly into the drive dog (3).
3. Close the quick closure at the mixing tube.
43.11 Cleaning the hopper
The inside of the hopper can be cleaned with a water hose after
having been emptied completely.
