Cleaning the machine after work
54 2021-08-12

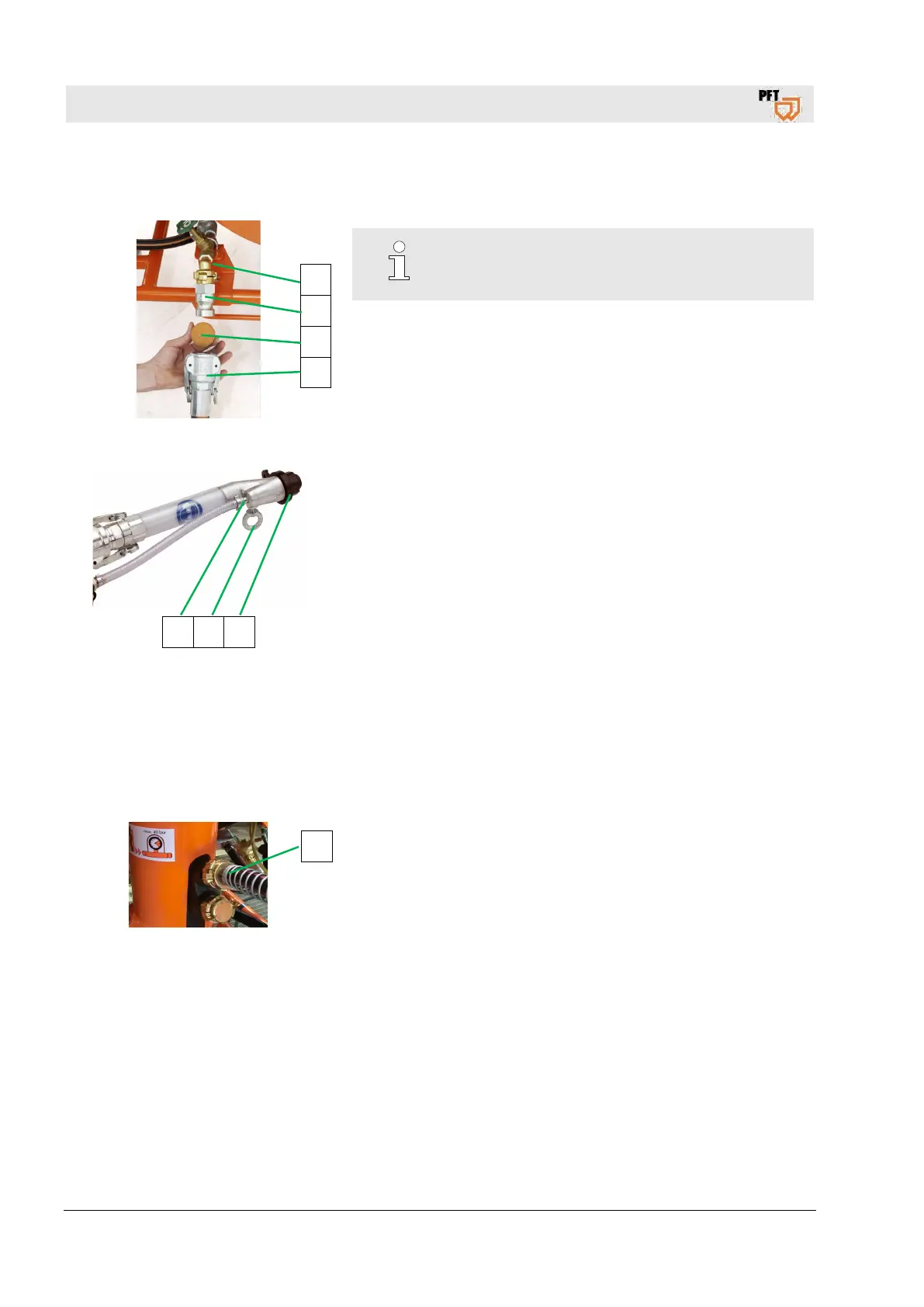

43.5 Clean mortar hose
Fig. 79: Clean mortar hose
NOTE!
Mortar hoses and spraying device have to be
cleaned immediately after finishing work.
1. Connect the cleaner coupling (1) at the water extraction valve
(2).
2. Press the water saturated sponge ball (3) into the mortar hose
(4).
3. Connect the mortar hose (4) with the sponge ball to the cleaner
coupling (1).
7 6 5
Fig. 80: Air nozzle tube and fine plaster
spraying nozzle
4. Remove the fine plaster spraying nozzle (5) from the spraying
gun.
5. Loosen the ring screw (6) and pull the air nozzle tube (7) out of
the spray head.
6.
Water sampling valve pos. 2 fig. 79
until the sponge ball
emerges from the fine plaster spraying nozzle. Repeat this
process until the hose is clean.
7. In case of different hose diameters, the mortar hoses have to
be cleaned separately with the matching sponge balls.
8. In case of strong soiling repeat this process.
9. Clear the air nozzle tube (7) using a round file.
10. Switch on the compressor and purge the air nozzle tube.
11. Reassemble the spraying gun.
43.6 Remove the water hose
Fig. 81: Water hose
1. Remove the water hose (1) from the mixing tube.
