Mixing pump G 4 X smart Overview - Operation and service
Mortar pressure gauge
2021-08-12 35

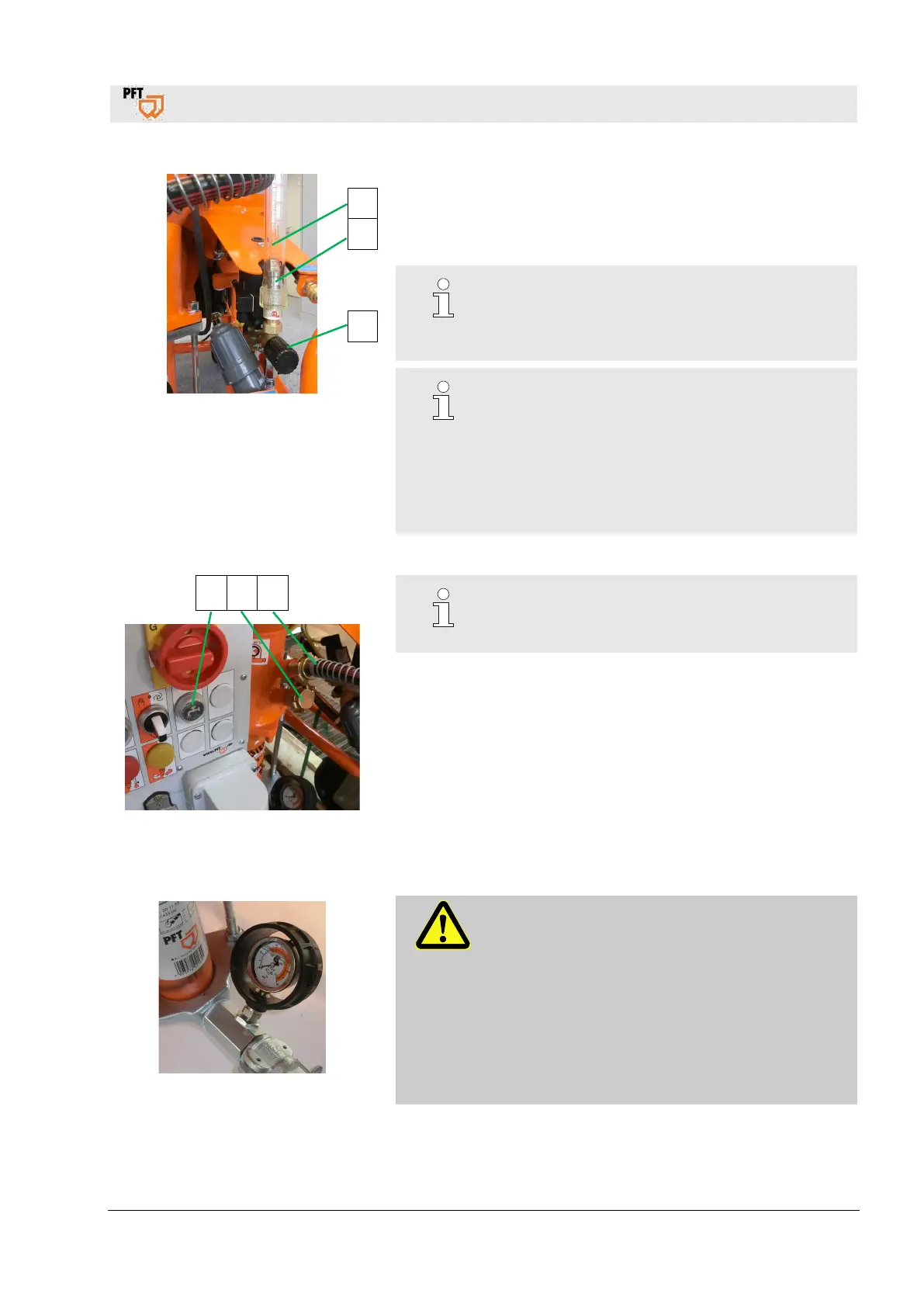

Fig. 42: Water supply button
2. At the same time adjust the expected amount of water required
at the needle valve (2).
3. The water flow can be seen at the inspection glass (3) of the
water flow meter and the level of the floater (4).
NOTE!
The specifications of the material manufacturer are
to be observed here, e.g. Knauf MR75 water
consumption approx. 650l/h
NOTE!
Any interruption of the spray operation results in a
slight irregularity in the consistency of the material.
This irregularity normalises by itself as soon as the
machine has been working for a short while.
Therefore it is important not to change the water
quantity for each irregularity.
consistency of the material has set again.
29.3
Water the mixing zone
3
2
1
Fig. 43: Soaking
NOTE!
he pump usually needs to be watered. Watering
makes it easier to start the pump.
1. Connect the water hose (1) to the mixing tube.
2. Remove the blind cover (2) from the lower water nozzle.
3. Press the water supply button (3).
4. Release the water supply button (3) as soon as water emerges
from the lower water nozzle.
5. Screw the blind cover (2) back on the lower water nozzle.
30 Mortar pressure gauge
Fig. 44: Mortar pressure gauge
DANGER!
Operating pressure too high!
Machine parts can open in an uncontrolled manner
and injure the operator.
Do not operate the machine without mortar
pressure gauge.
Use only mortar hoses with a permissible
operating pressure of at least 40 bar.
The burst pressure of the mortar hose must
reach at least 2.5 times the value of the
operating pressure.
3
4
2
