Changing lenses
It is easy to mount and exchange the lens on the XT Camera Body. Note that
the lens mount is compatible with all Cambo WRS lenses.
Mounting the Lens Panel
1. Ensure that both lens panel locks are open.
2. Slide the bottom of the lens plate into the lens panel slot.
3. Slide the safety lock at the top-middle upwards.
4. Tilt the lens panel up against the XT Camera body.
5. Lock both lens panel in place.
Removing the Lens Panel
1. Open both lens panel locks by sliding them upwards.
2. Slide the safety lock at the top-middle upwards.
3. Tilt the lens panel outward at the top
4. Lift the lens free from the lens panel slot at the bottom
5. Remove the lens.
Rotating the XT Camera
The integrated and rotatable tripod mount makes it easy to quickly switch
from landscape to portrait format without having to remove the XT Camera
from the tripod.
Open the silver-colored Rotation Lock on the tripod mount by pressing it
forward to unlock it and rotate the XT Camera System 90 degrees. Then press
the Rotation Lock backwards until it locks into position.
Be aware that any Shift movements that you have applied will obviously
be rotated as well so readjust the vertical and horizontal shifts if
necessary. Please read a later chapter on how to use and take advantage
of the integrated Shift system on the XT Camera System.

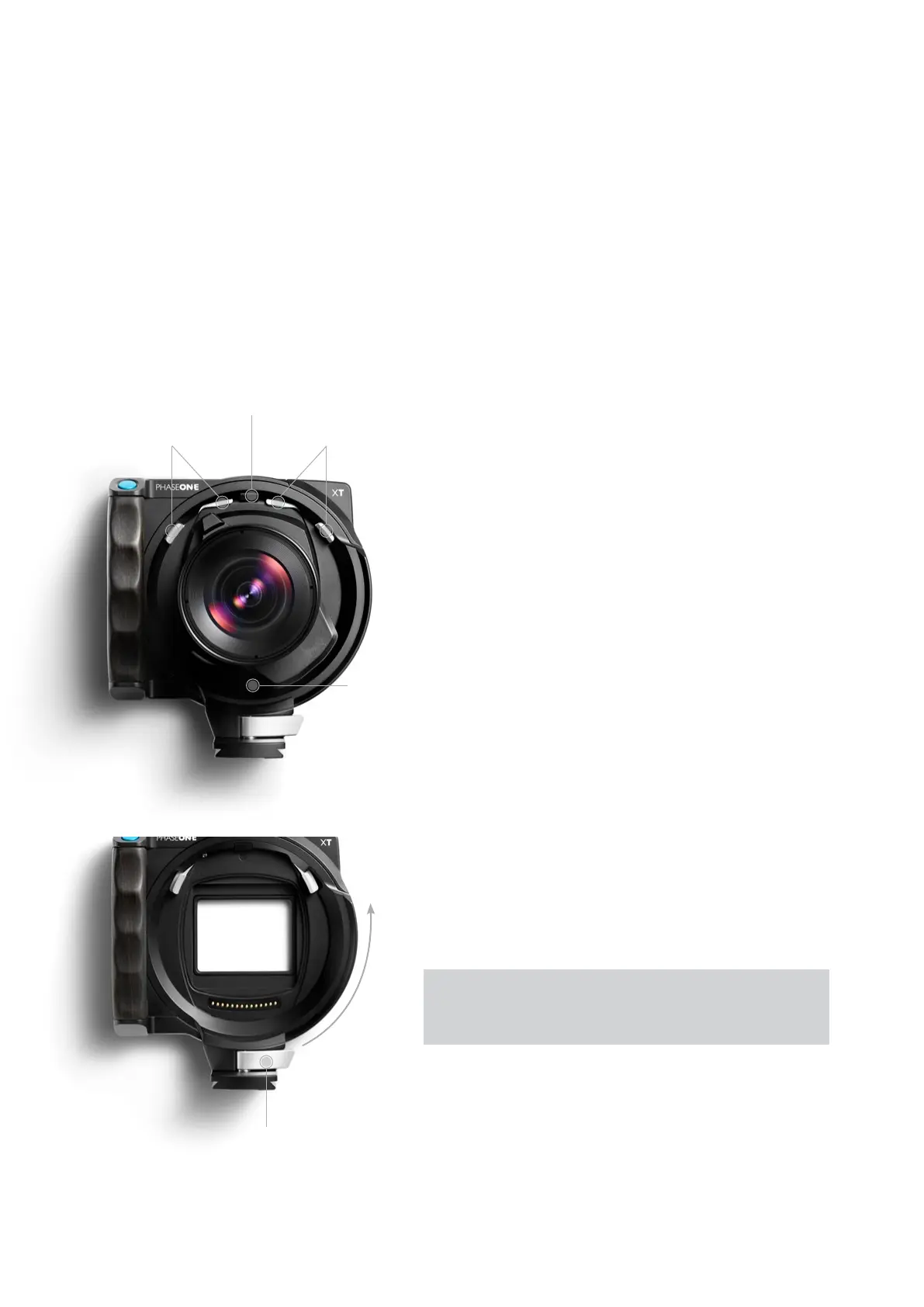

Lens Panel Lock
Safety Lock
Lens
Panel
Slot
Rotation Lock
Lens Panel Lock
