Mechanical Instructions
EN 46 DVDR70 & DVDR75/0x14.
4.1.3 DVIO Board, only for sets with DV input and Digital Board
1.5
To put the DVIO board in a service position, an extender board
must be used. This extender board can be ordered with
codenumber 3104 128 07770.
– After removal of the EPG board (if present) the DVIO board
can be reached
– Remove the two screws (1), see picture 4-4
– Release the snaps of the two board spacers 125
– Put the DVIO board in the service position with the
extender board 3104 128 07770.

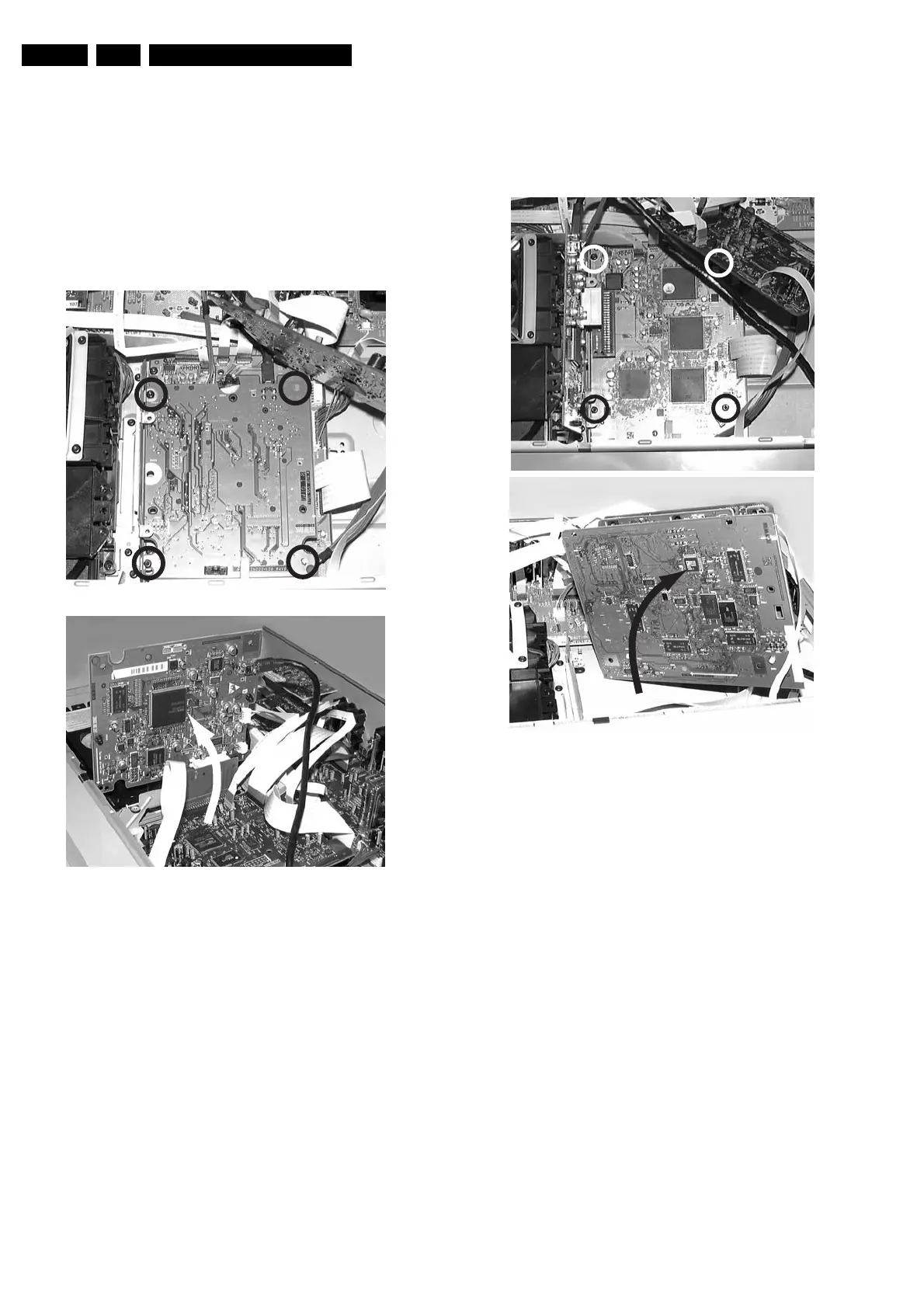

Figure 4-4
4.1.4 Digital Board
– After removal of EPG board (if present) and DVIO board (if
present) the digital board can be reached
– Remove screws (1)
– Turn the PCB in the service position
Figure 4-5
1
1
1
1
2
1
1
1
1
2
