3.15 Communication paths
The following communication paths are available on the controllers:
AXC F 1152 and AXC F 2152

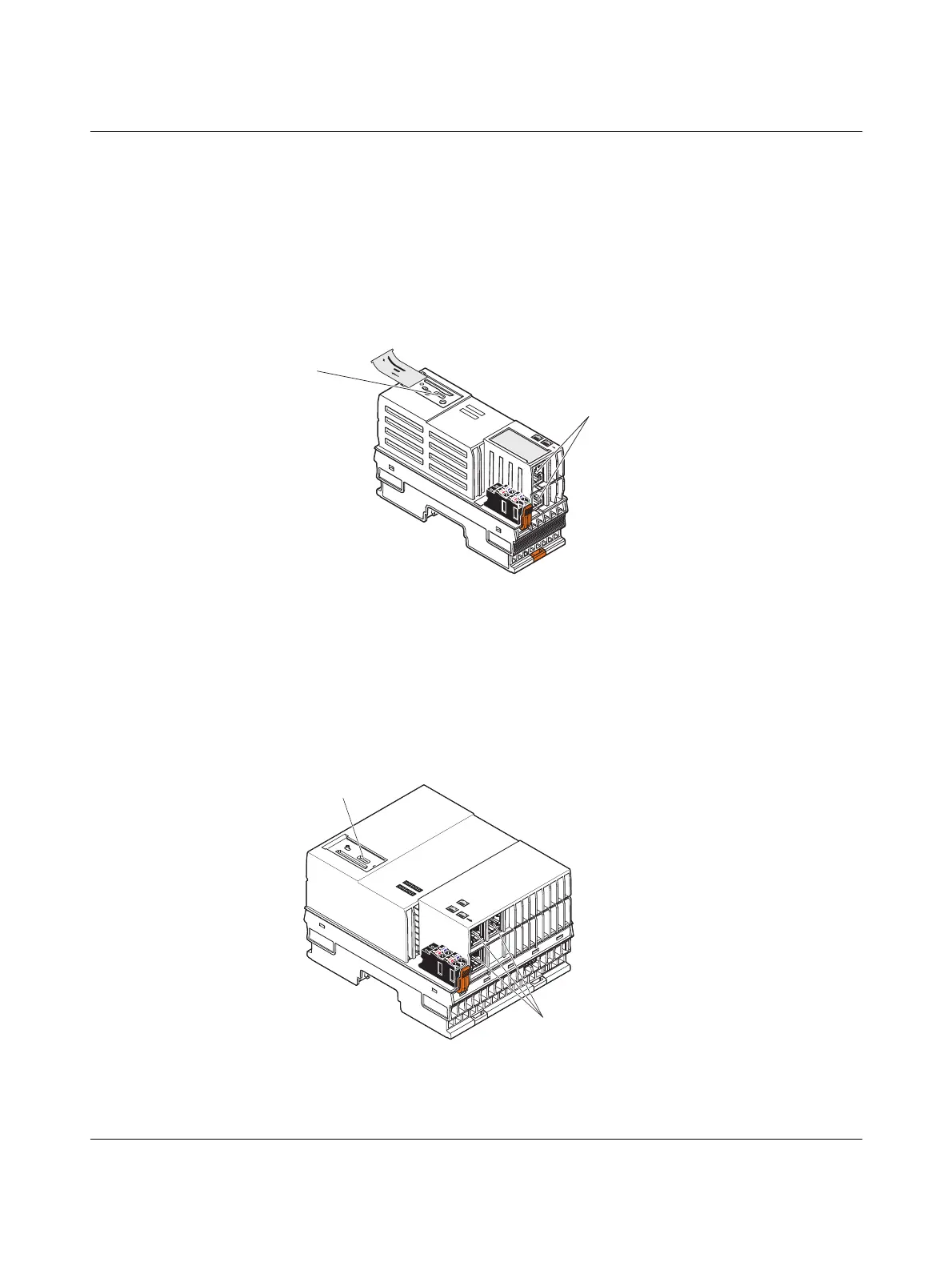

Figure 3-17 Communication paths: (1) Ethernet, (2) service interface
AXC F 3152
Figure 3-18 Communication paths: (1) Ethernet, (2) service interface
(1) 2 x Ethernet X1/X2: 10/100 BASE-T(X) (switched internally)
(2) Service interface No function at present
(1) 3 x Ethernet X1/X2/X3: 10/100/1000 BASE-T(X)
X2: PROFINET controller interface
X3: PROFINET device interface
(2) Service interface No function at present
R
S
D
-C
A
R
D
X4
X2
X1
2
1
U
L
a1 b
1
b2b1
2
1
