Phoenix Contact AXC F 3152 - Example of AXC F 2152: Init Value Configuration for the RTC System Variable Organized as a Data Structure

AXC F X152
66 / 112
PHOENIX CONTACT 107708_en_08
The Init Value Configuration for the selected system variable organized as a data structure
opens below the “Data List” editor.

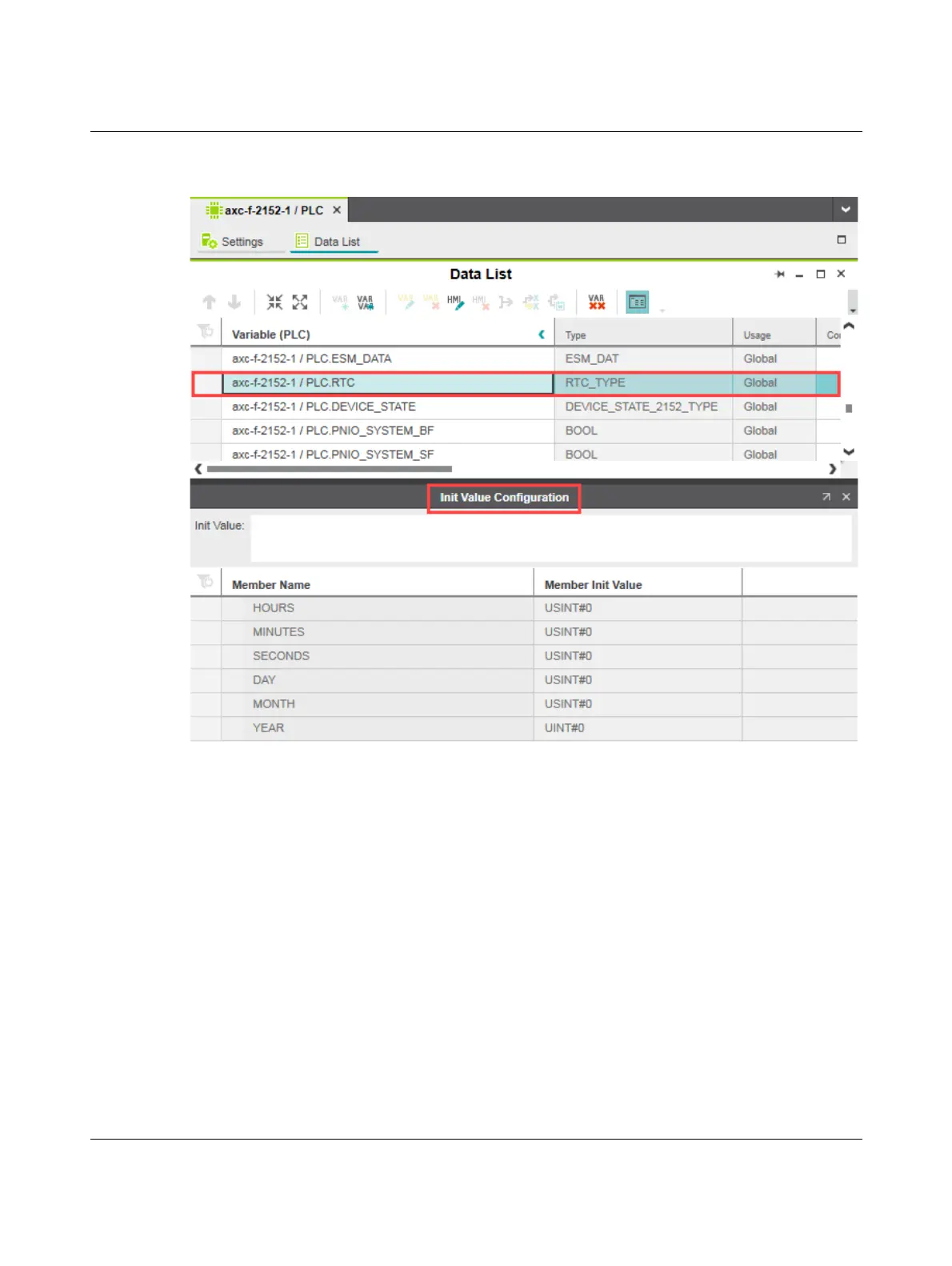

Figure 8-1 Example of AXC F 2152: Init Value Configuration for the RTC system
variable organized as a data structure (RTC_TYPE data type)
The “Member Name” column in the Init Value Configuration displays all the system variables
contained in the system variable which is organized as a data structure.
