The following left-alignable Axioline F extension modules are currently available:
– AXC F XT ETH 1TX (Order No. 2403115):
Left-alignable Ethernet interface
– AXC F XT IB (Order No. 2403018):
Left-alignable INTERBUS master for the connection of up to 255 INTERBUS remote
bus devices

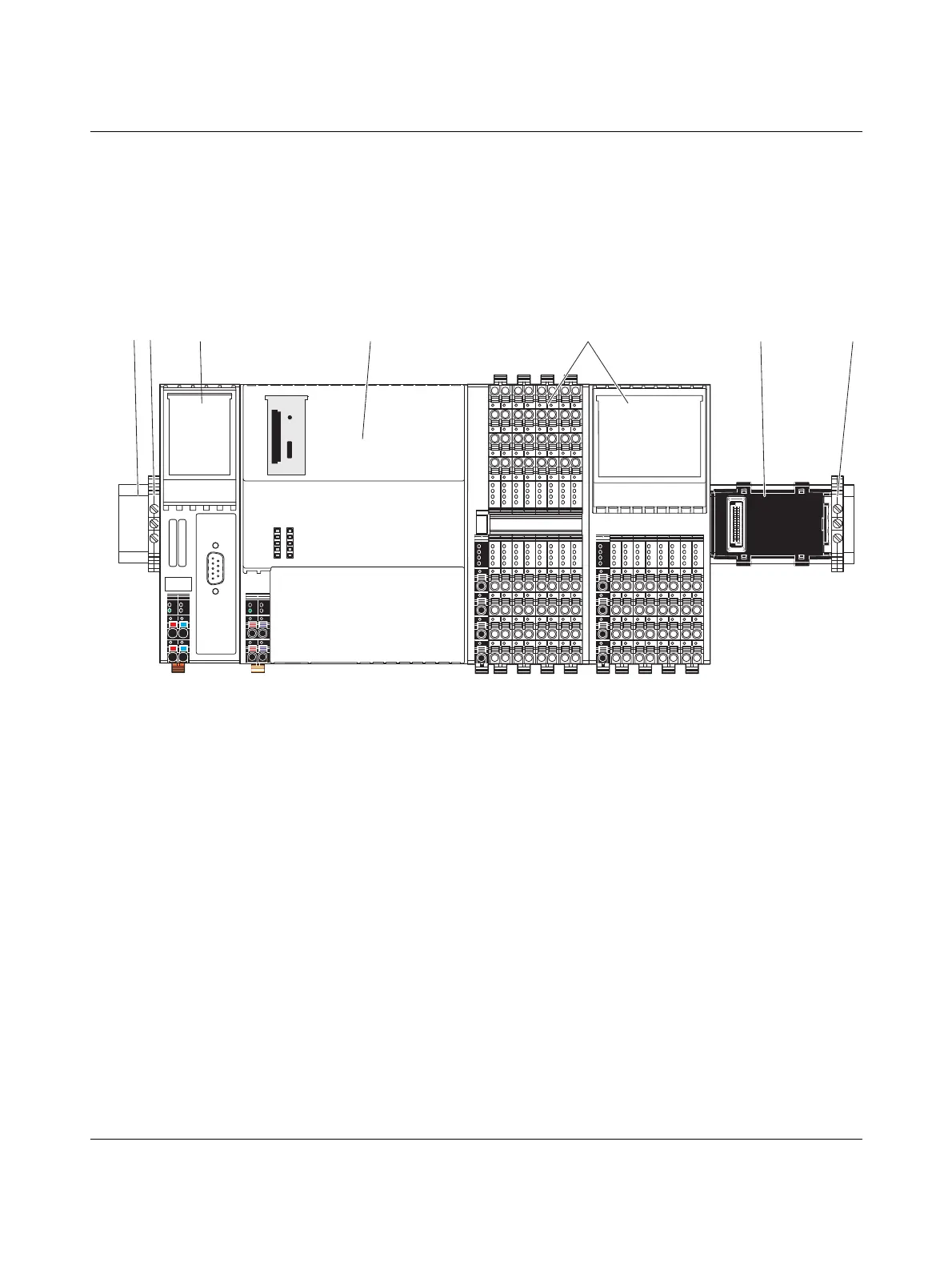

Figure 4-4 shows an example structure of an Axioline F station with the AXC F 3152 control-
ler and the left-aligned Axioline F AXC F XT IB extension module:
Figure 4-4 Example: Axioline F station with AXC F 3152 and left-aligned Axioline F ex-
tension module
Key:
1 DIN rail
2 End bracket (e.g., CLIPFIX 35-5; Order No. 3022276)
3 Left-alignable Axioline F AXC F XT IB extension module
4 AXC F 3152 controller
5 I/O modules (Axioline F devices) corresponding to the application
6 Bus base module
UL
a1 b1
b2b1
UL
12 5 6 2
3
4
